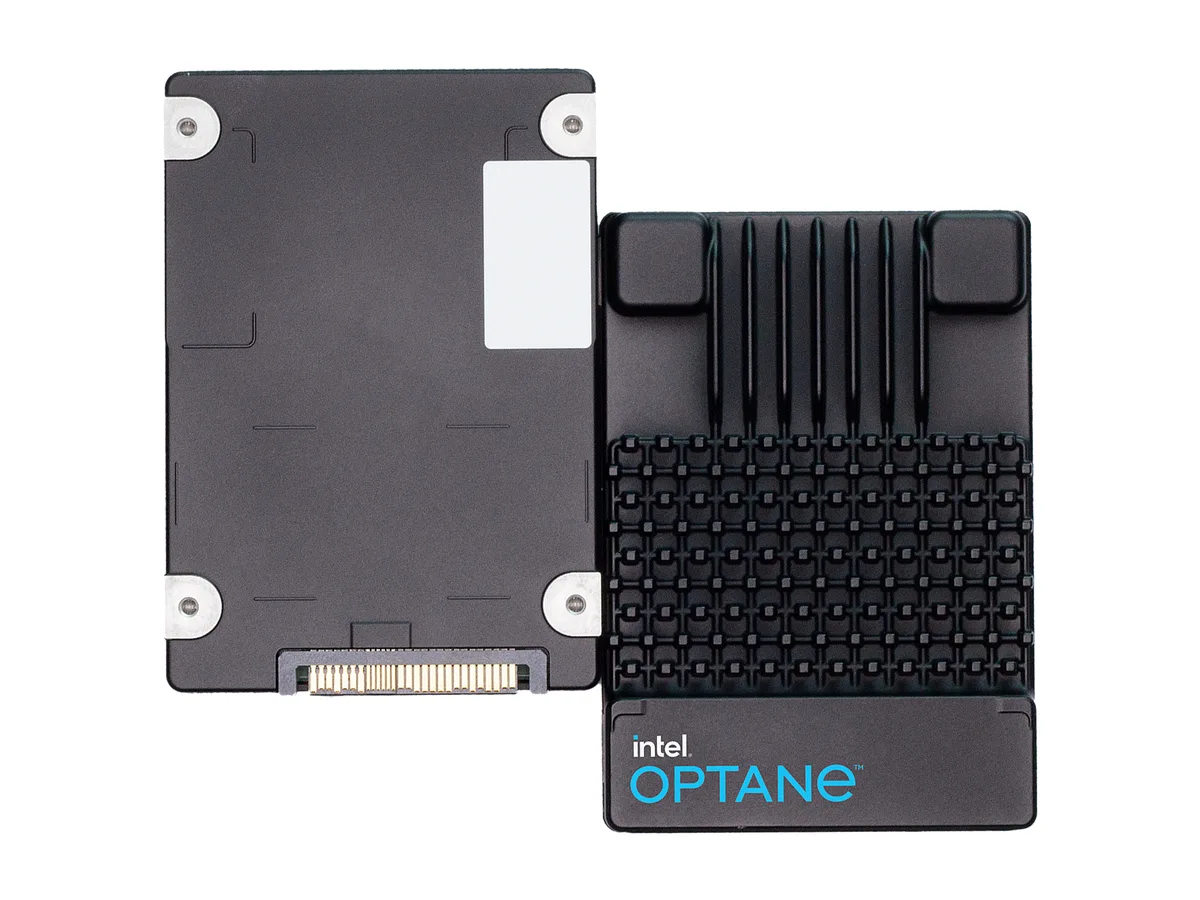

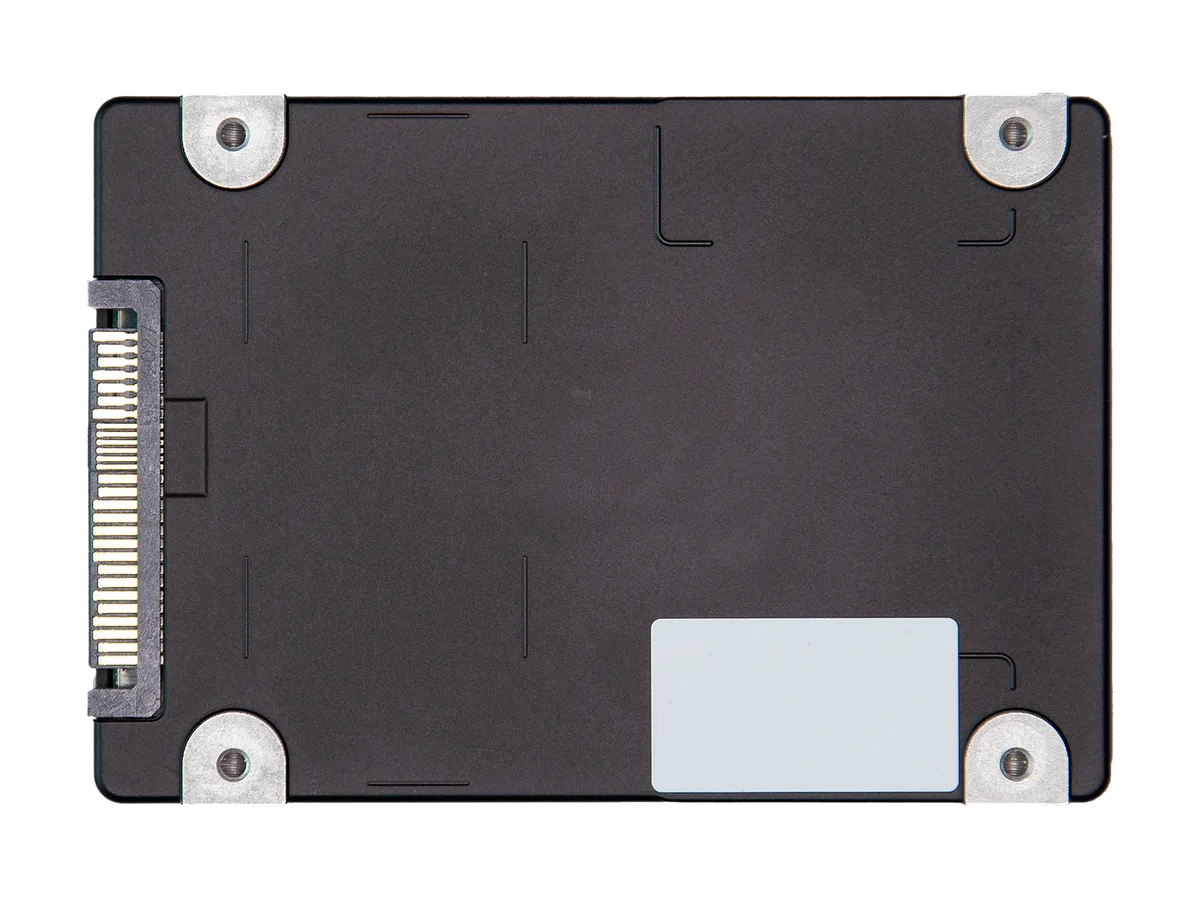

2.5 inch U.2 enterprise SSD, 15mm thick, dark metal casing

Intel

Intel Optane SSD DC P5800X 800GB 2.5" U.2 enterprise SSD SSDPF21Q800GB01

SKU CH-YE4X-D1X80 MPN SSDPF21Q800GB01

800 GB PCIe 4.0 x4 NVMe enterprise SSD with 3D XPoint memory, 100 DWPD endurance and 7,200 MB/s sequential read

  • Form Factor2.5" U.2
  • Memory Components3D XPoint
  • InterfacePCI-Express 4.0 x4, NVMe
  • Max Sequential ReadUp to 7200 MBps
  • Max Sequential WriteUp to 6100 MBps
  • MTBF2,000,000 hours
  • Optane media accelerates latency-sensitive workloads
  • PCIe 4.0 x4 delivers up to 7200 MBps sequential read
  • 100 DWPD endurance supports write-intensive applications
  • 5" U.2 15mm form factor fits dense servers
  • 2,000,000-hour MTBF ensures enterprise reliability

Enterprise SSD with 3D XPoint

The Intel Optane SSD DC P5800X is an 800GB enterprise solid-state drive built on 3D XPoint media. It uses a 2.5-inch U.2 form factor with a 15mm height and connects through a PCI-Express 4.0 x4 NVMe interface. This drive targets data-centre workloads that demand consistent low latency and very high write endurance.

Sustained write performance

Rated at 100 drive writes per day, the drive delivers 146,000 TBW of endurance. Active power draw reaches 18W while idle consumption is 4.2W. Sequential reads reach up to 7200 MBps and writes up to 6100 MBps. The MTBF is 2,000,000 hours and the operating range spans 0°C to 70°C.

Endurance decides fit

The defining specification is the 100 DWPD endurance rating backed by 3D XPoint technology. Buyers who need a lower-cost read-optimised drive or a larger capacity for cold data storage should look elsewhere. This model is purpose-built for write-intensive caching and tiering where sustained random write performance is the primary requirement.

Highlights

  • Optane media accelerates latency-sensitive workloads
  • PCIe 4.0 x4 delivers up to 7200 MBps sequential read
  • 100 DWPD endurance supports write-intensive applications
  • 5" U.2 15mm form factor fits dense servers
  • 2,000,000-hour MTBF ensures enterprise reliability

Specifications

BrandIntel
SeriesOptane SSD DC P5800X
ModelSSDPF21Q800GB01
Form Factor2.5" U.2
Memory Components3D XPoint
InterfacePCI-Express 4.0 x4, NVMe
Max Sequential ReadUp to 7200 MBps
Max Sequential WriteUp to 6100 MBps
MTBF2,000,000 hours
FeaturesEndurance Rating (Lifetime Writes): 100 DWPD
Power Consumption (Idle)4.2W
Power Consumption (Active)18W
Operating Temperature0°C ~ +70°C
Max Shock Resistance1,000G, 0.5 ms, half sine
Max Vibration ResistanceOperating: 2.17 Grms, (5-700 Hz), random
Non-Operating: 3.13 Grms (5-800 Hz), random
Height15.00mm
Weight140.00g
Shipping weight0.18 kg
Package size137 × 108 × 19 mm

Questions about this item

How much heat and power does the P5800X generate when running continuously at its 18W active rating?

The drive draws 18W active and 4.2W idle, operating between 0°C and 70°C with a 2,000,000-hour MTBF, so sustained workloads stay within standard enterprise thermal limits.

What server backplane and cabling are required for the U.2 PCIe 4.0 x4 interface on this 2.5" 15mm drive?

It needs a U.2 backplane wired for PCIe 4.0 x4 NVMe, compatible 2.5" 15mm drive bays, and appropriate power delivery for up to 18W active consumption.

Will the P5800X work alongside older PCIe 3.0 NVMe drives on the same backplane?

Yes, the PCIe 4.0 x4 interface is backward compatible with PCIe 3.0 slots, though sequential speeds will drop to the 3.0 limit while the 100 DWPD endurance and low latency remain unchanged.
