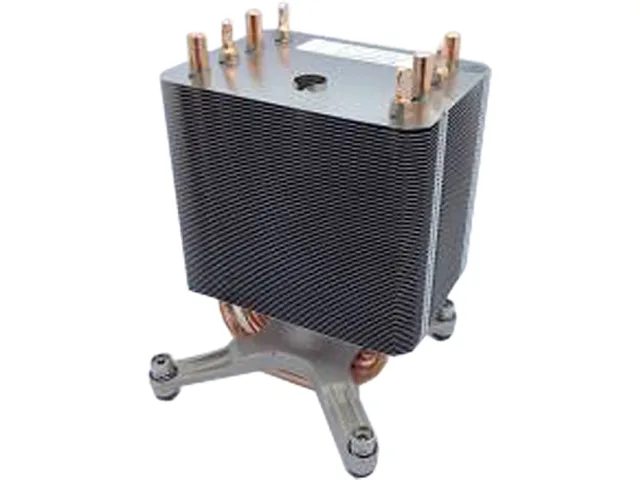

Rectangular aluminium passive heatsink, 92mm by 100mm base, finned tower design

Intel

Intel Passive Heat-Sink AUPCWPBTP 92mm x 100mm CPU cooler

SKU CH-7776-4BRZF

Passive 92 mm by 100 mm heatsink for Intel S2600CW server boards in P4000 chassis, 134 mm max height and 1.48 kg weight

  • TypeHeatsinks only
  • Max CPU Cooler Height134 mm
  • Weight1.48
  • Features92mm x 100mm
  • Passive cooling eliminates fan noise entirely
  • 92 mm by 100 mm footprint fits SRP-T tower layout
  • 134 mm maximum height clears P4000 chassis
  • 48 kg weight indicates solid aluminium construction
  • Two units required for dual-processor S2600CW configuration

Passive Heat-Sink for Intel Server Boards

This Intel passive heat-sink is designed for server deployments that rely on chassis airflow rather than an attached fan. It fits the AUPCWPBTP form factor and serves system builders maintaining compatible Intel server platforms.

92 mm × 100 mm footprint and 134 mm height

The cooler measures 92 mm by 100 mm at the base and stands 134 mm tall, weighing 1.48 units. These dimensions determine whether the heat-sink clears surrounding components and fits the allocated slot in the target chassis.

Two units required for dual-processor S2600CW

The supplier notes that two heat-sinks are needed when an Intel Server Board S2600CW is installed in a P4000 chassis with two processors. Single-processor configurations or different boards and chassis may only need one unit.

Highlights

  • Passive cooling eliminates fan noise entirely
  • 92 mm by 100 mm footprint fits SRP-T tower layout
  • 134 mm maximum height clears P4000 chassis
  • 48 kg weight indicates solid aluminium construction
  • Two units required for dual-processor S2600CW configuration

Specifications

BrandIntel
ModelAUPCWPBTP
TypeHeatsinks only
Max CPU Cooler Height134 mm
Weight1.48
Features92mm x 100mm
Shipping weight1.36 kg
Package size178 × 152 × 127 mm

Questions about this item

What does the 92mm x 100mm footprint mean for airflow inside my chassis?

The 92mm by 100mm base matches the mounting pattern on the Intel Server Board S2600CW, so the fins sit directly over the CPU socket without overhanging adjacent components.

How does the 134mm height limit affect case compatibility?

At 134mm tall, the cooler fits the Intel P4000 chassis and any enclosure that allows at least that much clearance above the motherboard tray.

Why are two of these passive heat sinks required for a dual-processor setup?

Each processor socket on the S2600CW board needs its own heatsink; the kit is sold per unit, so a two-CPU build uses two identical AUPCWPBTP coolers.
