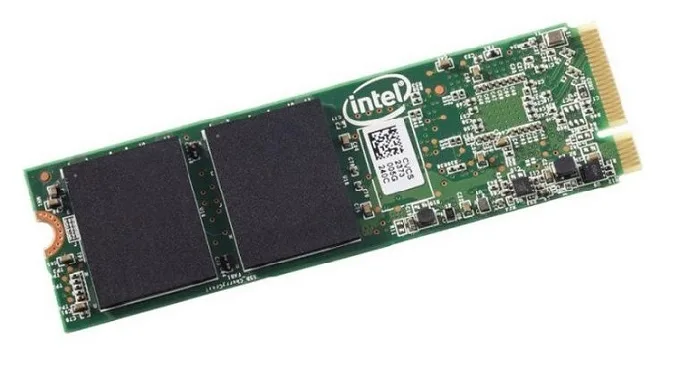

Green rectangular M.2 2280 circuit board with gold edge connector and black controller chip

Intel

Intel Pro 5400S SSDSCKKF180H6X1 180GB M.2 2280 SATA internal SSD

SKU CH-DZPW-A6Z9D MPN SSDSCKKF180H6X1

M.2 2280 SATA drive with 180GB TLC storage delivering 560MB/s read, 90MB/s write and 1600000-hour MTBF

  • Device TypeInternal Solid State Drive (SSD)
  • Form FactorM.2 2280
  • Capacity180GB
  • Memory ComponentsTLC
  • InterfaceSATA
  • Sustained Sequential Read560MB/s
  • M.2 2280 form factor fits slim laptops and desktops
  • 560 MB/s sequential read speeds up everyday workloads
  • 71,000 random read IOPS for responsive multitasking
  • 40 mW idle power extends battery life on portables
  • 6 million hour MTBF rating supports long-term reliability

Intel Pro 5400S 180GB M.2 2280 SATA SSD

The Intel Pro 5400S is a SATA internal solid-state drive in the M.2 2280 form factor with a capacity of 180GB. It uses TLC memory components and targets systems that require a compact SATA boot or storage drive.

Capacity and headroom

Sequential reads reach 560MB/s while sequential writes reach 90MB/s. Random performance delivers up to 71000 IOPS for reads and 85000 IOPS for writes. The 180GB capacity suits operating-system and application installs, leaving limited room for large media libraries.

Thermals noise and power

Typical idle power is 40 mW and active power is 80 mW. The drive operates between 0°C and 70°C and tolerates storage from -55°C to 95°C. With no moving parts it runs silently and resists shock up to 1000G.

Highlights

  • M.2 2280 form factor fits slim laptops and desktops
  • 560 MB/s sequential read speeds up everyday workloads
  • 71,000 random read IOPS for responsive multitasking
  • 40 mW idle power extends battery life on portables
  • 6 million hour MTBF rating supports long-term reliability

Specifications

BrandIntel
SeriesPro 5400s Series
ModelSSDSCKKF180H6X1
Device TypeInternal Solid State Drive (SSD)
Form FactorM.2 2280
Capacity180GB
Memory ComponentsTLC
InterfaceSATA
Sustained Sequential Read560MB/s
Sustained Sequential Write90MB/s
4KB Random ReadUp to 71,000 IOPS
4KB Random WriteUp to 85,000 IOPS
Read Latency50 µs
Write Latency50 µs
MTBF1,600,000 hours
Power Consumption (Idle)40 mW Typical
Power Consumption (Active)80 mW Typical
Operating Temperature0°C ~ +70°C
Storage Temperature-55°C ~ +95°C
Operating Humidity5% to 95% RH
Max Shock Resistance1000G
Max Vibration Resistance3.13 GRMS (5-800Hz)
Weight0.19
Shipping weight0.09 kg
Package size25 × 25 × 25 mm

Questions about this item

Will this M.2 2280 SATA drive work in a laptop that only has an older mSATA slot?

No, the M.2 2280 form factor is physically different from mSATA and requires a compatible M.2 keyed slot that supports the SATA protocol.

How can I verify the drive is delivering its rated 560MB/s read and 90MB/s write speeds after installation?

Run a benchmark tool such as CrystalDiskMark using the SATA 6Gbps profile and compare the sequential results to the 560MB/s read and 90MB/s write figures.

Does the single-drive package include a mounting screw or heat-spreader, or must I buy them separately?

The drive is sold as a bare 180GB M.2 2280 module; mounting screws and any thermal pads are supplied by the system or motherboard manufacturer.
