Small black tall mini PC barebone with front and rear ports

Intel

Intel RNUC13ANHi5000U barebone mini PC Core i5-1340P DDR4 64GB

SKU CH-CMGB-TPVX9 MPN RNUC13ANHi5000U

A compact barebone mini PC with a 13th Gen Core i5-1340P processor, dual DDR4-3200 SODIMM slots supporting up to 64 GB, dual M.2 NVMe slots, 2.5 Gb Ethernet, Wi-Fi 6E and Thunderbolt 4

  • ColorBlack
  • Form FactorTall
  • CPU TypeIntel Core i5 13th Gen 1340P (P-core 4.60 GHz, E-core 3.40 G
  • Memory installedNo Memory
  • Memory slot2 x 260Pin SO-DIMM
  • Memory Type SupportedDDR4 3200

CPU Type Intel Core i5-1340P

  • 12th-gen Core i5 with 12 MB cache boosts multitasking
  • Dual-channel DDR4 3200 supports up to 64 GB RAM
  • Three internal drive bays include Gen4 NVMe and SATA
  • Four-display output via HDMI 2.1 and Type-C DP 1.4a
  • 5 GbE LAN plus Wi-Fi 6E AX211 and Bluetooth 5.3

Compact barebone for custom builds

The Intel NUC 13 Pro RNUC13ANHi5000U is a tall-form-factor mini PC sold without memory, storage or an operating system. It targets system integrators and enthusiasts who want to choose their own DDR4 SODIMMs and NVMe drives. The onboard Core i5-1340P provides twelve cores with P-core speeds up to 4.60 GHz and E-core speeds up to 3.40 GHz.

Memory and storage limits

Two 260-pin SO-DIMM slots accept DDR4 3200 modules up to a combined 64 GB in dual-channel mode. Internal storage uses one M.2 2280 PCIe Gen4x4 NVMe slot (key M), one M.2 2242 PCIe Gen3 NVMe slot (key B) and a single SATA 6.0 Gb/s connector for a 2.5-inch drive. No drives are included.

Connectivity and mounting implications

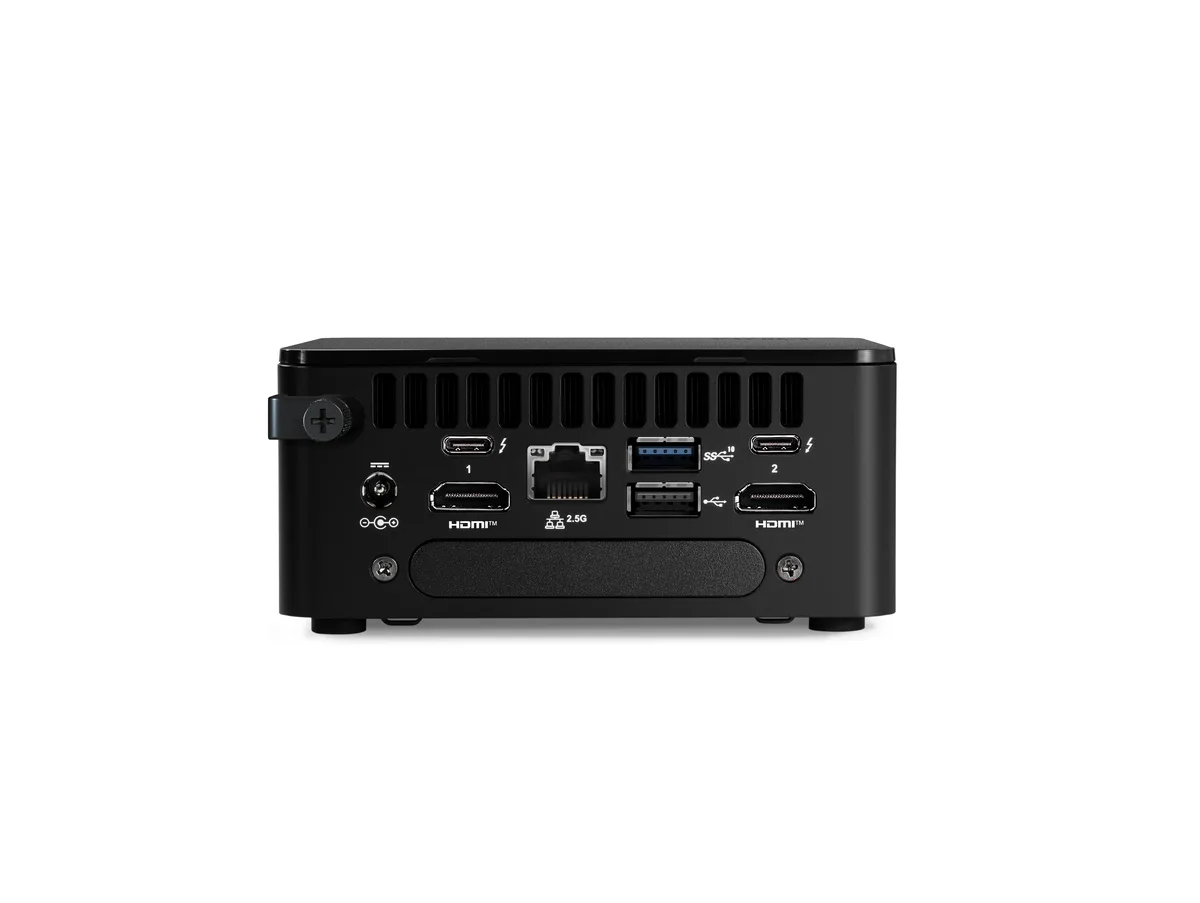

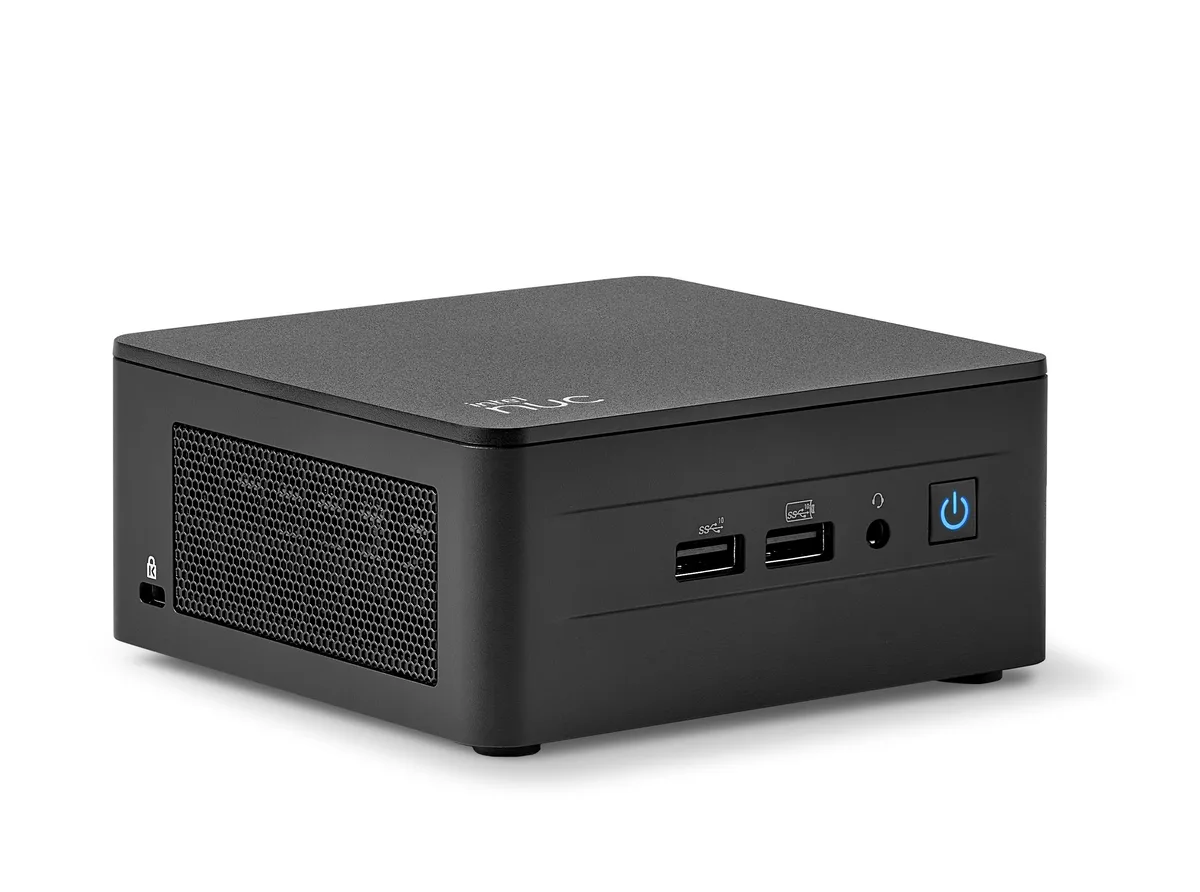

Front I/O offers two USB 3.2 Gen 2 Type-A ports. The rear provides two HDMI 2.1 TMDS outputs, two DisplayPort 1.4a signals via USB-C, two Thunderbolt 4 ports, one USB 3.2 Type-A, one USB 2.0 Type-A and a 2.5 GbE RJ45 jack. Wireless uses Intel Wi-Fi 6E AX211 with Bluetooth 5.3. Internal headers include one USB 3.2 on the M.2 2242 pins and two USB 2.0 headers. The chassis measures 4.61 by 4.41 by 2.13 inches.

Highlights

  • 12th-gen Core i5 with 12 MB cache boosts multitasking
  • Dual-channel DDR4 3200 supports up to 64 GB RAM
  • Three internal drive bays include Gen4 NVMe and SATA
  • Four-display output via HDMI 2.1 and Type-C DP 1.4a
  • 5 GbE LAN plus Wi-Fi 6E AX211 and Bluetooth 5.3

Specifications

BrandIntel
SeriesNUC 13 Pro
ModelRNUC13ANHi5000U
ColorBlack
Form FactorTall
CPU TypeIntel Core i5 13th Gen 1340P (P-core 4.60 GHz, E-core 3.40 GHz)
Memory installedNo Memory
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
Serial ATA1 x SATA 6.0Gb/s
M.2 Slot1 x M.2 2280 PCIe Gen4x4 NVMe SSD Slot (key M)
1 x M.2 2242 PCIe Gen3 NVMe SSD Slot (key B)
Integrated GraphicsIntel Iris Xe Graphics
LANIntel i226V
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 6E AX211 (Gig+)
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.3
Front USB2 x USB 3.2 Gen 2 Type-A
HDMI2 x HDMI 2.1 TMDS
DisplayPort2 x DisplayPort 1.4a via Type C
Rear USB2 x USB 4 (type C)
1 x USB 3.2
1 x USB 2.0
RJ451x RJ45 (2.5Gb Ethernet)
Internal Connectors1 x USB 3.2 on m.2 22x42 (pins), 2 x USB 2.0 (headers)
Dimensions4.61" x 4.41" x 2.13"
Shipping weight1.54 kg
Package size178 × 178 × 127 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I choose the 2280 Gen4 slot or the 2242 Gen3 slot for my main NVMe drive?

Use the 2280 PCIe Gen4x4 slot for the primary NVMe SSD; it provides the highest throughput. The 2242 PCIe Gen3 slot is better suited for a secondary drive.

What does the 4.60 GHz turbo mean for everyday workloads?

The 4.60 GHz P-core turbo gives strong single-thread speed for responsive apps and light content creation, while the 3.40 GHz E-cores handle background tasks efficiently.

How many 4K displays can the two Thunderbolt 4 ports drive simultaneously?

Each Thunderbolt 4 port supports DisplayPort 1.4a, so you can run up to four 4K displays when combined with the two HDMI 2.1 outputs.
