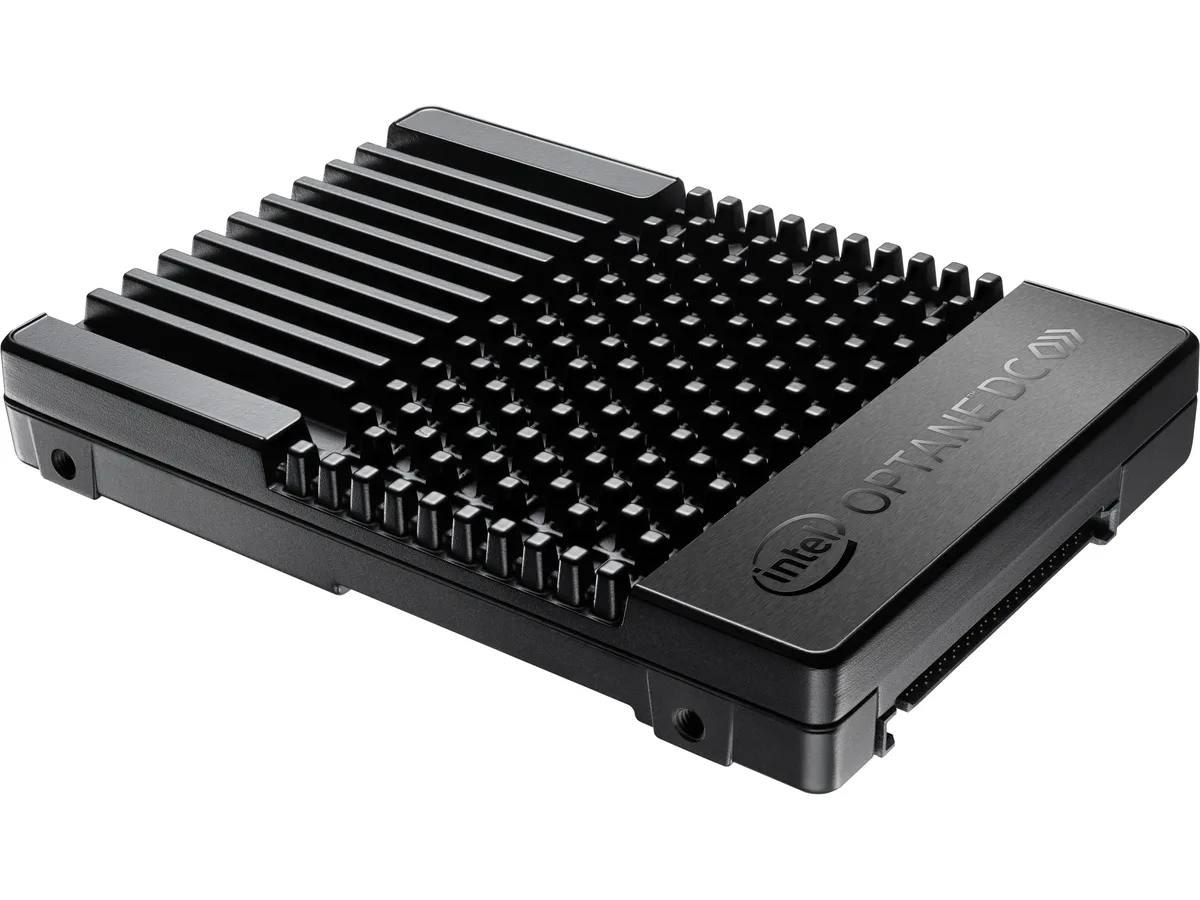

2.5 inch U.2 enterprise SSD 15mm thick dark metal casing

Intel

Intel SSDPE21M750GA01 Optane DC P4800X 750GB 2.5" U.2 PCIe 3.0 x4 NVMe enterprise SSD

SKU CH-K7GH-1VN3G MPN SSDPE21M750GA01

Enterprise 2.5" U.2 NVMe drive with 750GB 3D XPoint media, PCIe 3.0 x4, 2500 MBps read, 2200 MBps write, and 60 DWPD endurance

  • Form Factor2.5" U.2
  • Memory Components3D XPoint
  • InterfacePCIe 3.0 x4, NVMe
  • Max Sequential ReadUp to 2500 MBps
  • Max Sequential WriteUp to 2200 MBps
  • MTBF2 million hours
  • 3D XPoint media delivers memory-like latency for data-intensive workloads
  • 60 DWPD endurance rating supports sustained write-heavy applications
  • PCIe 3.0 x4 NVMe interface provides up to 2500 MBps sequential read speed
  • 5 inch U.2 15mm form factor fits standard enterprise server bays
  • 2 million hours MTBF ensures reliable operation in demanding environments

Intel Optane DC P4800X 750GB

The Intel Optane DC P4800X is a 750GB enterprise SSD built on 3D XPoint media with a 2.5" U.2 form factor. It connects via PCIe 3.0 x4 using the NVMe protocol and is designed for write-intensive server workloads requiring consistent low latency and high endurance.

60 DWPD endurance and 82,000 TBW

The drive is rated for 60 drive writes per day, equating to 82,000 TBW total bytes written. Sequential reads reach up to 2500 MBps and writes up to 2200 MBps. Active power draw is 18W and idle power is 6W. It operates from 0°C to 70°C with shock resistance of 1000 G.

PCIe 3.0 x4 NVMe interface limits

The PCIe 3.0 x4 link caps maximum theoretical bandwidth near 4 GBps, so sustained throughput cannot exceed this ceiling. Latency-sensitive applications benefit from the memory-like response of 3D XPoint, but the interface prevents scaling beyond generation 3 speeds. Buyers needing higher bus bandwidth or larger single-drive capacities must look elsewhere.

Highlights

  • 3D XPoint media delivers memory-like latency for data-intensive workloads
  • 60 DWPD endurance rating supports sustained write-heavy applications
  • PCIe 3.0 x4 NVMe interface provides up to 2500 MBps sequential read speed
  • 5 inch U.2 15mm form factor fits standard enterprise server bays
  • 2 million hours MTBF ensures reliable operation in demanding environments

Specifications

BrandIntel
SeriesOptane SSD DC P4800X
ModelSSDPE21M750GA01
Form Factor2.5" U.2
Memory Components3D XPoint
InterfacePCIe 3.0 x4, NVMe
Max Sequential ReadUp to 2500 MBps
Max Sequential WriteUp to 2200 MBps
MTBF2 million hours
FeaturesIntel Optane SSD DC P4800X Series (750GB, 2.5in PCIe x4, 3D XPoint, 60DWPD)
Power Consumption (Idle)6W
Power Consumption (Active)18W
Operating Temperature0°C ~ +70°C
Max Shock Resistance1000 G/0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS
Non-Operating: 3.13 GRMS
Height15.00mm
Shipping weight0.18 kg
Package size137 × 108 × 15 mm

Questions about this item

Will the 2.5" U.2 15mm form factor fit in a server bay that currently holds 2.5" 7mm drives?

This drive is 15mm tall, so it requires a 15mm bay or a compatible U.2 backplane; a standard 7mm bay will not accommodate it.

How can I verify the PCIe 3.0 x4 NVMe link is running at full speed after installation?

Check the negotiated link width and speed in the OS device manager or BIOS; it should report PCIe 3.0 x4, and benchmark sequential reads near 2500 MBps and writes near 2200 MBps.

Does the package include a U.2 cable or drive carrier, or must they be purchased separately?

The drive ships as the bare 2.5" U.2 15mm unit; any U.2 cable, backplane connector or server-specific carrier must be sourced separately.
