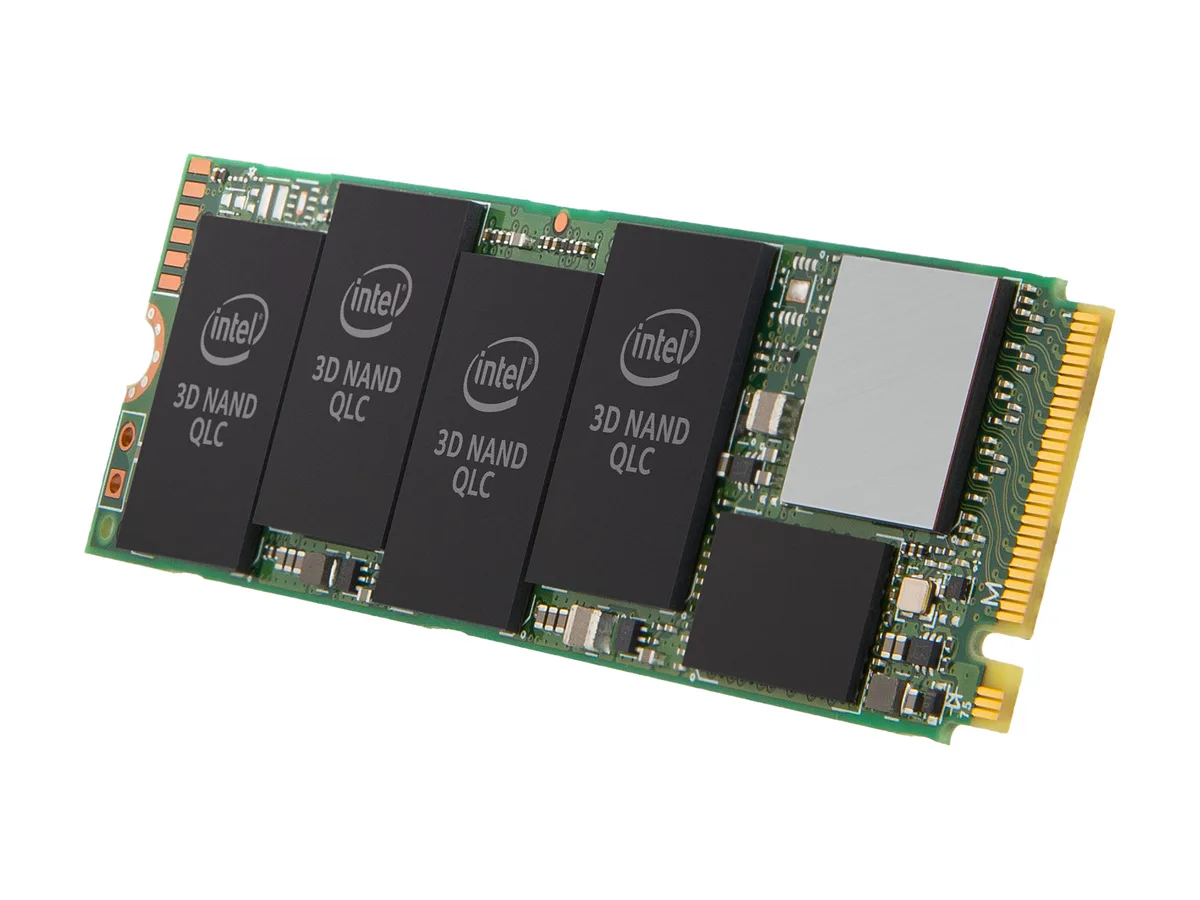

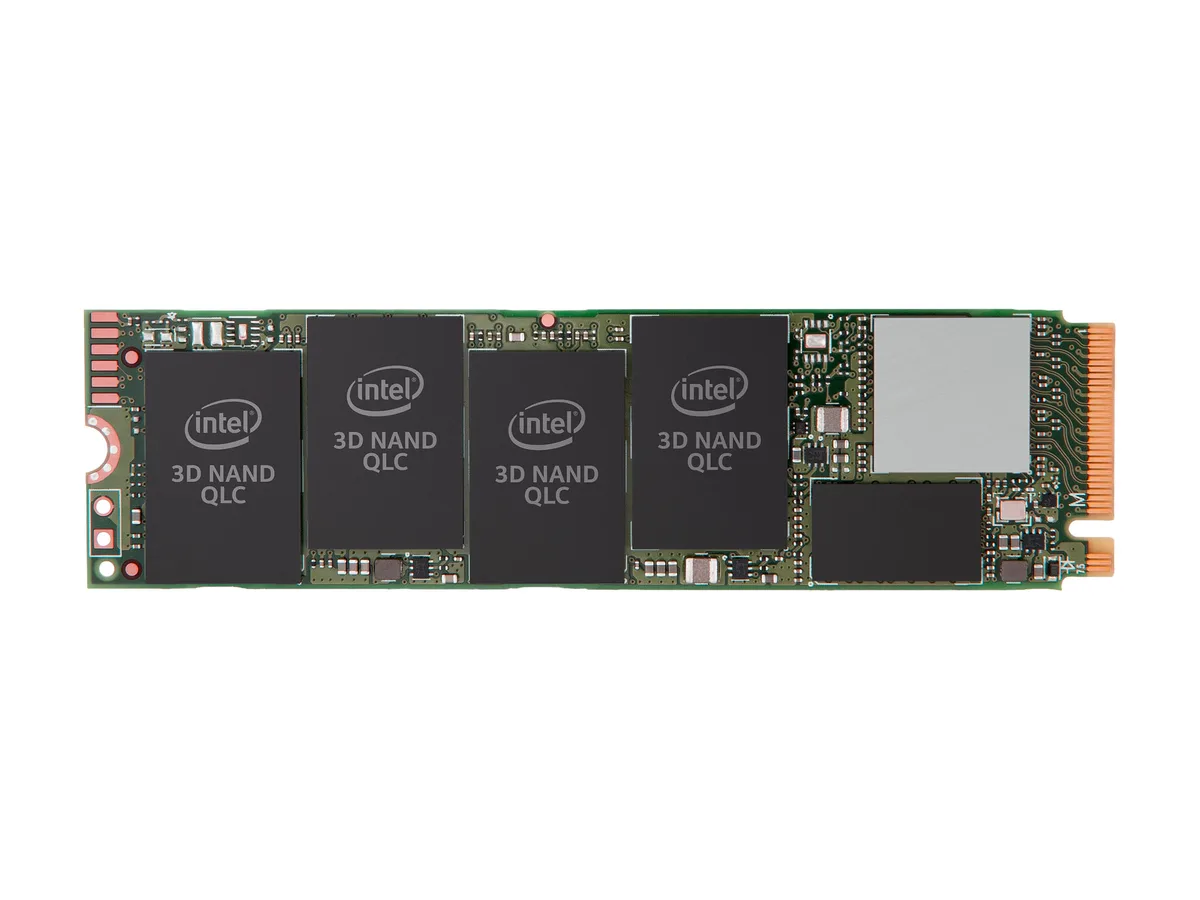

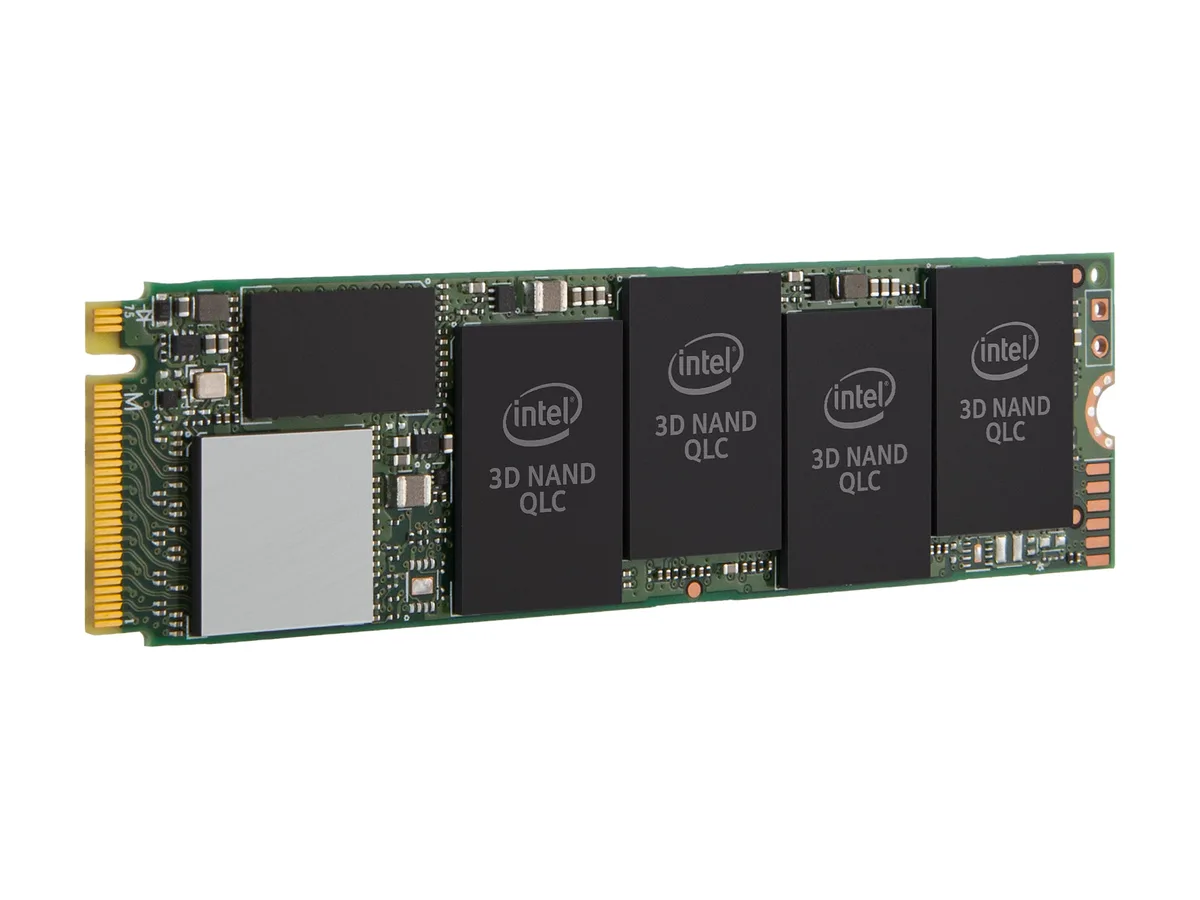

Green printed circuit board M.2 2280 SSD with black controller and silver label

Intel

Intel SSDPEKNW010T8X1 1TB M.2 2280 PCIe NVMe 3.0 x4 QLC internal SSD

SKU CH-08YH-60F5X MPN SSDPEKNW010T8X1

A 1TB M.2 2280 PCIe NVMe 3.0 x4 internal SSD using QLC 3D NAND for up to 1800 MBps sequential speeds and 200TB endurance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1TB
  • Memory Components3D2, QLC
  • InterfacePCIe NVMe 3.0 x4

Options 1TB

  • Sequential reads up to 1800 MB/s via PCIe 3.0 x4 NVMe
  • Sequential writes up to 1800 MB/s for fast file transfers
  • Random reads up to 150000 IOPS for responsive multitasking
  • Random writes up to 220000 IOPS for quick application launches
  • QLC 3D NAND enables 1TB capacity in M.2 2280 form factor

Intel 660p 1TB PCIe 3.0 x4 NVMe SSD

This Intel 660p Series drive provides 1TB of storage in an M.2 2280 form factor. It connects through a PCIe 3.0 x4 interface using the NVMe protocol. The drive uses 3D QLC NAND and operates without a DRAM cache, relying on host memory buffer technology. It is built for everyday consumer workloads in notebooks and desktops.

QLC 3D NAND enables higher density at lower cost

Intel QLC technology packs more bits per cell than TLC, allowing greater capacity in the same physical footprint. The PCIe interface removes the bandwidth ceiling of SATA, delivering up to 1800 MBps sequential read and write. Random performance reaches 150000 IOPS read and 220000 IOPS write. Endurance is rated at 200 TBW with a 1.6 million hour MTBF.

Suits mainstream laptops and desktops needing

This drive fits users who want a large, low-cost NVMe boot or data drive for general computing. It is less suited for sustained heavy write workloads or professional applications that demand consistent high performance and DRAM-backed caching. Those buyers should consider TLC-based alternatives with dedicated DRAM.

Highlights

  • Sequential reads up to 1800 MB/s via PCIe 3.0 x4 NVMe
  • Sequential writes up to 1800 MB/s for fast file transfers
  • Random reads up to 150000 IOPS for responsive multitasking
  • Random writes up to 220000 IOPS for quick application launches
  • QLC 3D NAND enables 1TB capacity in M.2 2280 form factor

Specifications

BrandIntel
Series660p Series
ModelSSDPEKNW010T8X1
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1TB
Memory Components3D2, QLC
InterfacePCIe NVMe 3.0 x4
CacheNo DRAM (HMB)
Max Sequential ReadUp to 1800 MBps
Max Sequential WriteUp to 1800 MBps
4KB Random ReadUp to 150,000 IOPS
4KB Random WriteUp to 220,000 IOPS
Terabytes Written (TBW)200TB
MTBF1,600,000 hours
FeaturesEmpowered by Intel's innovative Intel's 3D NAND QLC technology, this SSD offers higher capacities at a lower cost than TLC-based storages.
With PCIe, the new Intel SSD 660p skips SATA and its limitations. The future of storage is built on PCIe, NVMe and QLC technologies, so choose the Intel SSD 660p, ideal for Laptops and Desktops running everyday computing applications.
Compared to TLC's capacity, Intel 3D NAND QLC technology stores more bits per cell, allowing for higher capacity, faster read performance and lower power consumption per drive.
This technology makes the most of small
Power Consumption (Idle)40 mW
Power Consumption (Active)100 mW
Operating Temperature0°C ~ +70°C
Storage Temperature-55°C ~ +95°C
Operating Humidity5-95%
Max Shock ResistanceOperating: 1000G / 0.5 ms
Non-Operating: 1500G / 0.5 ms
Max Vibration ResistanceOperating: 2.17 GRMS (5-700 Hz)
Non-Operating: 3.13 GRMS (5-800 Hz)
Height2.38mm
Width22.00mm
Depth80.00mm
Weight< 10.00g
Shipping weight0.11 kg
Package size165 × 124 × 23 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How does the 200 TBW endurance rating affect when this QLC drive might need replacement?

The 200 TBW rating means the Intel 660p 1TB is warrantied for 200 terabytes of data written; typical consumer workloads rarely reach this limit within the drive's useful life.

What performance limit appears first during sustained writes on this PCIe 3.0 x4 SSD?

After the dynamic SLC cache fills, sequential write speeds on the QLC NAND can drop well below the 1800 MB/s peak during long, continuous transfers.

What are the idle and active power figures for this M.2 2280 drive when running all day?

The drive draws 40 mW at idle and 100 mW during active operation, producing minimal heat inside a laptop or desktop chassis.
