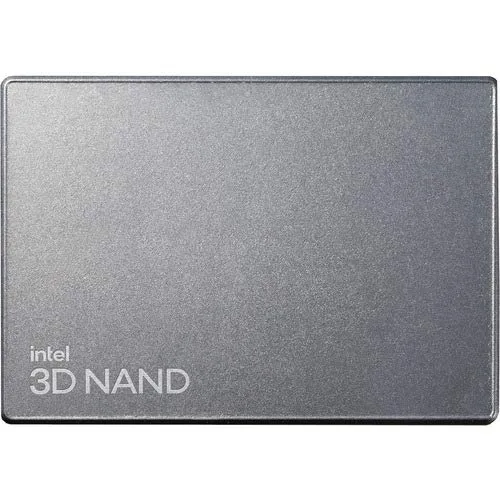

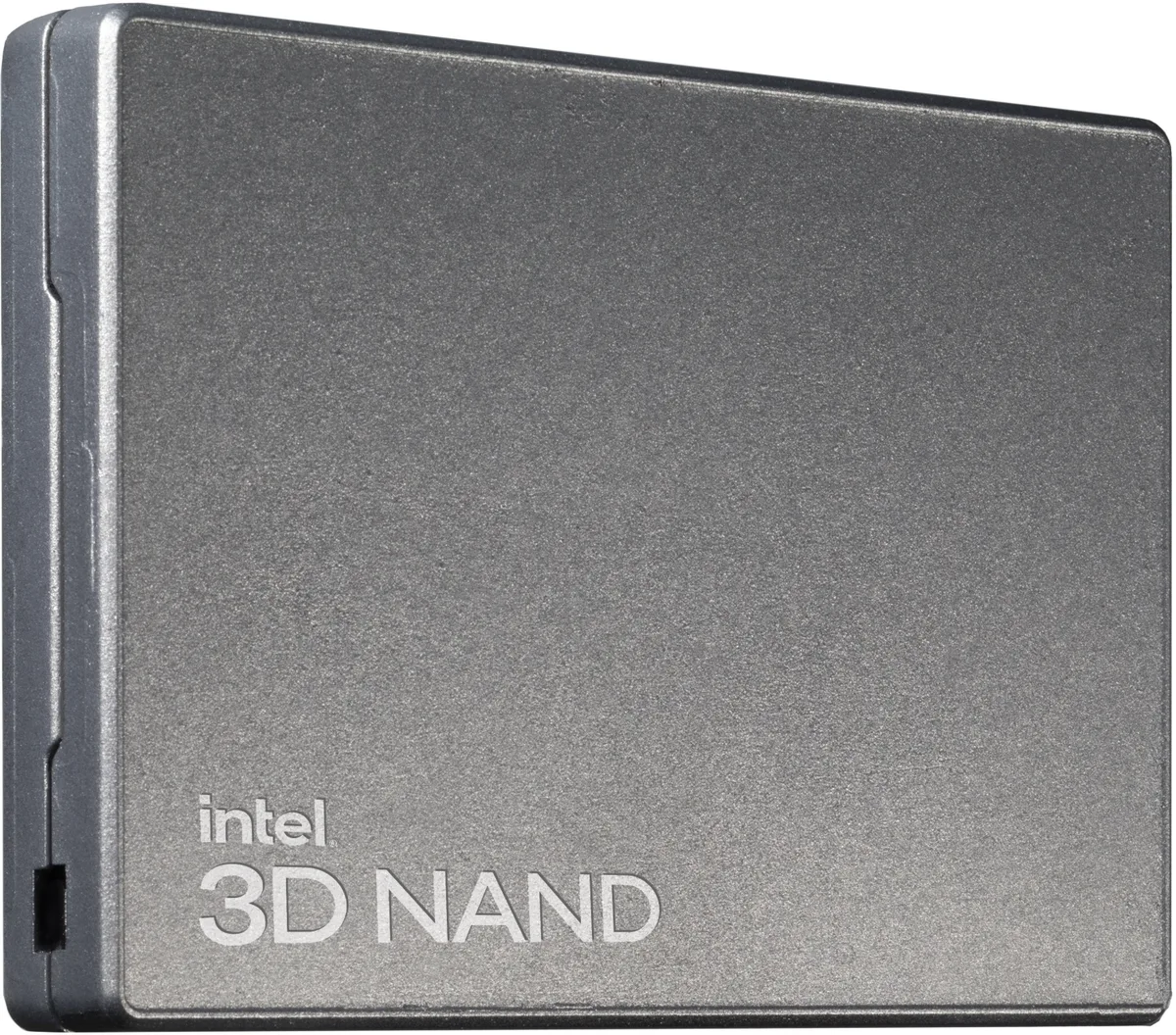

A 2.5 inch U.2 NVMe SSD with a silver metal casing and gold edge connector

Intel

Intel SSDPF2KX038TZ01 D7-P5510 3.84 TB enterprise SSD

SKU CH-R6AW-Z73CC MPN SSDPF2KX038TZ01

A 3.84 TB 2.5" U.2 NVMe enterprise SSD delivering 6500 MB/s reads and 700,000 random read IOPS with 1 DWPD endurance and 256-bit AES encryption

  • Form Factor2.5" U.2
  • Capacity3.84TB
  • Memory Components144L TLC 3D NAND
  • InterfacePCI-Express 4.0 x4
  • ControllerIntel
  • Max Sequential ReadUp to 6500 MBps
  • High-speed sequential reads up to 6500 MB/s accelerate data-intensive workloads
  • Sustained random read performance of 700,000 IOPS handles heavy transaction processing
  • Hardware-based 256-bit AES encryption protects stored data without host overhead
  • High endurance rating of 7168 TBW supports continuous write-heavy operations
  • PCIe 4.0 x4 NVMe interface delivers low latency for responsive server I/O

Intel D7-P5510 3.84TB U.2 NVMe Enterprise SSD

The Intel D7-P5510 is a 3.84TB enterprise solid-state drive built for server deployments. It uses a 2.5-inch U.2 form factor with a PCIe 4.0 x4 NVMe interface. The drive employs 144-layer TLC 3D NAND and an Intel controller to deliver consistent performance for data centre workloads. It includes 256-bit AES hardware encryption for data security.

Suited for read-intensive server workloads needing

This drive fits servers that require sustained sequential reads up to 6500 MB/s and random reads up to 700,000 IOPS. Its 7168 TBW rating and 1 DWPD endurance support heavy daily write cycles. Buyers who need higher write IOPS than 170,000 or capacities beyond 3.84TB should evaluate other models. Systems without U.2 backplane support cannot install this drive.

PCIe 4.0 x4 NVMe interface decides compatibility

The drive connects exclusively through a U.2 port that runs PCIe 4.0 x4 NVMe protocol. A server backplane or adapter must provide this exact electrical and mechanical interface. Read latency measures 82 µs and write latency 15 µs at 4KB. Active power draw stays under 18W within a 0°C to 70°C operating range.

Highlights

  • High-speed sequential reads up to 6500 MB/s accelerate data-intensive workloads
  • Sustained random read performance of 700,000 IOPS handles heavy transaction processing
  • Hardware-based 256-bit AES encryption protects stored data without host overhead
  • High endurance rating of 7168 TBW supports continuous write-heavy operations
  • PCIe 4.0 x4 NVMe interface delivers low latency for responsive server I/O

Specifications

BrandIntel
SeriesD7-P5510
ModelSSDPF2KX038TZ01
Form Factor2.5" U.2
Capacity3.84TB
Memory Components144L TLC 3D NAND
InterfacePCI-Express 4.0 x4
ControllerIntel
Max Sequential ReadUp to 6500 MBps
Max Sequential WriteUp to 3400 MBps
4KB Random ReadUp to 700,000 IOPS
4KB Random WriteUp to 170,000 IOPS
Read Latency82 µs
Write Latency15 µs
Endurance1 DWPD
MTBF2,000,000 hours
FeaturesEndurance Rating: Up to 7.0PBW (JESD219 workload)
Hardware Encryption: AES 256 bit
Power Consumption (Idle)<5W
Power Consumption (Active)<18W
Operating Temperature0°C ~ +70°C
Weight138g
Shipping weight4.08 kg
Package size823 × 823 × 823 mm

Questions about this item

How do I decide between the 3.84 TB capacity and other capacities in the D7-P5510 line?

The 3.84 TB model provides 7168 TB TBW and 1 DWPD endurance. Choose it when your workload needs that write budget; smaller capacities in the same series will have proportionally lower TBW.

What does the 6500 MB/s sequential read figure mean once the drive is installed in a server?

It is the peak throughput over the PCIe 4.0 x4 link. Real-world speeds depend on queue depth, CPU overhead and thermal limits; sustained reads in typical server workloads will sit below this ceiling.

How does the U.2 NVMe interface affect performance in practice?

The U.2 connector carries four lanes of PCIe 4.0, capping bandwidth at the drive’s rated 6500 MB/s read and 3400 MB/s write. It also enables hot-plug in supported backplanes.
