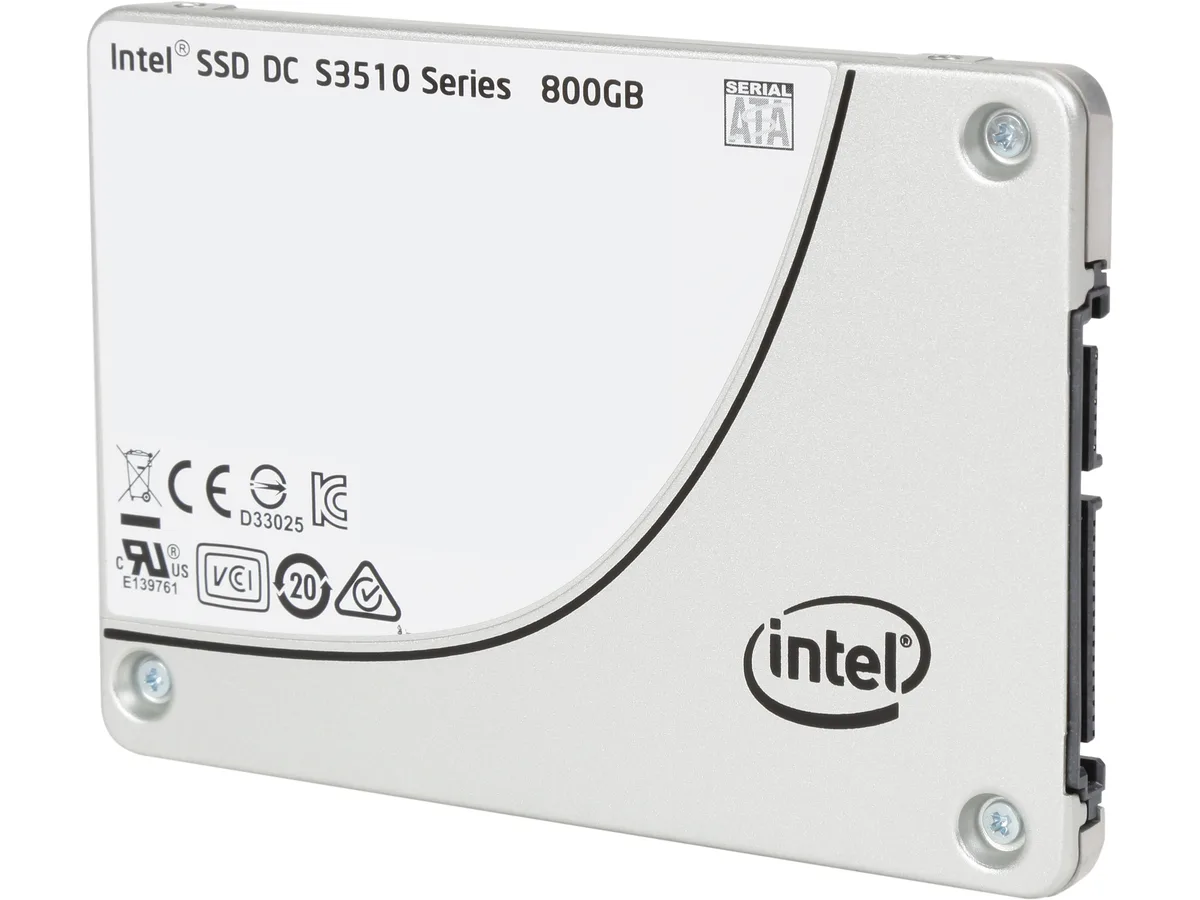

Silver rectangular 2.5 inch SATA SSD with label showing Intel DC S3510 800GB

Intel

Intel SSDSC2BB800G601 DC S3510 800GB 2.5" SATA enterprise SSD

SKU CH-5BX3-PY1Y0 MPN SSDSC2BB800G601

2.5 inch SATA enterprise SSD with 800GB MLC capacity delivering up to 500MB/s read, 460MB/s write, 68,000 random read IOPS and 20,000 write IOPS

  • Form Factor2.5"
  • Capacity800GB
  • Memory ComponentsMLC
  • InterfaceSATA III
  • Max Sequential Readup to 500 MB/s
  • Max Sequential Writeup to 460 MB/s
  • Consistent performance for data-center workloads with up to 500 MB/s sequential read
  • Low-latency random access at 68,000 IOPS read and 20,000 IOPS write
  • Enterprise-grade endurance from MLC NAND and power-loss protection
  • Reduced operating cost with 0.6 W idle and 6.8 W active power draw
  • Drop-in 2.5" SATA form factor fits existing server bays

800GB 2.5" SATA enterprise SSD

The Intel DC S3510 SSDSC2BB800G601 is a 2.5-inch SATA III solid-state drive with 800GB of MLC NAND capacity. It delivers sequential reads up to 500 MB/s and writes up to 460 MB/s for data-centre workloads. Random 4KB performance reaches 68,000 read IOPS and 20,000 write IOPS.

Suited for SATA-based servers needing consistent

This drive fits servers and storage arrays that use 2.5-inch SATA bays and require steady quality of service. It is not for systems limited to lower-capacity drives or those that cannot accommodate a 6.8 W active power draw.

800GB MLC endurance rating

The 800GB MLC configuration determines the drive's write endurance and sustained performance envelope. Buyers should verify that this capacity and endurance level match the workload's daily write requirements.

Highlights

  • Consistent performance for data-center workloads with up to 500 MB/s sequential read
  • Low-latency random access at 68,000 IOPS read and 20,000 IOPS write
  • Enterprise-grade endurance from MLC NAND and power-loss protection
  • Reduced operating cost with 0.6 W idle and 6.8 W active power draw
  • Drop-in 2.5" SATA form factor fits existing server bays

Specifications

BrandIntel
SeriesDC S3510
ModelSSDSC2BB800G601
Part NumberSSDSC2BB800G601
Form Factor2.5"
Capacity800GB
Memory ComponentsMLC
InterfaceSATA III
Max Sequential Readup to 500 MB/s
Max Sequential Writeup to 460 MB/s
4KB Random ReadUp to 68,000 IOPS
4KB Random WriteUp to 20,000 IOPS
Read Latency55 µs
Write Latency66 µs
FeaturesOptimized Data Center Endurance
Demanding applications require highly reliable storage coupled with consistent performance. The IntelR SSD DC Family for SATA offers a full range of endurance and performance levels1, designed to meet the needs of your data center workloads.
Additionally, the Intel SSD DC S3510 with .3 full DWD is optimized for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.
Stress-Free Data Protection
All of the products in the Intel SSD DC Family for SATA protect data with full end-to-end data protection, 25
Power Consumption (Idle)0.6W
Power Consumption (Active)Up to 6.8 W (TYP) 2.5"
Operating Temperature0°C ~ +70°C
Storage Temperature-55°C ~ +95°C
Max Shock Resistance1000G
Max Vibration ResistanceOperating: 2.17 GRMS (5-700 Hz)
Non-Operating: 3.13 GRMS (5-800 Hz)
Height7.00mm
Weight0.2
Shipping weight0.11 kg
Package size152 × 114 × 25 mm

Questions about this item

What does the 500 MB/s sequential read figure mean when the drive is installed in a server?

It is the maximum sustained throughput the SATA III link can deliver for large-block reads, so backup jobs or sequential log scans will top out near that rate once the controller and CPU keep the queue fed.

How does the SATA III interface limit real-world performance?

The 6 Gb/s SATA III bus caps sequential transfers at roughly 500 MB/s read and 460 MB/s write, so the drive cannot exceed those ceilings even if the NAND is faster.

Will the 2.5-inch form factor fit my existing drive bays and backplanes?

Yes, the industry-standard 2.5-inch dimensions match common HDD and SSD trays, allowing a direct drop-in replacement without adapters.
