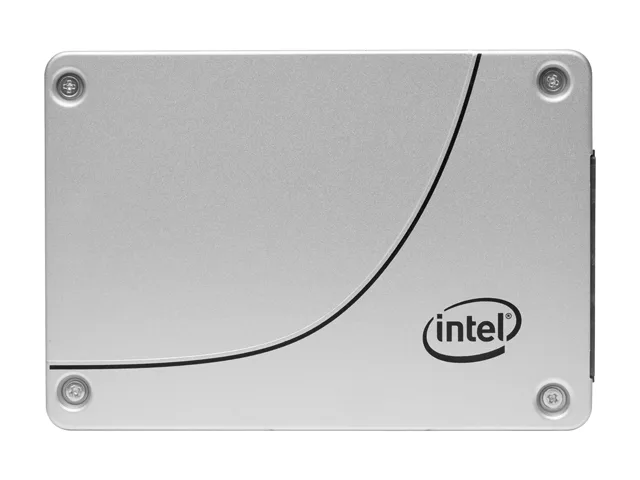

Silver rectangular 2.5 inch SATA solid state drive with label

Intel

Intel SSDSC2KB240G801 D3-S4510 240GB 2.5" SATA enterprise SSD

SKU CH-NH7S-HFA3D MPN SSDSC2KB240G801

2.5-inch SATA enterprise SSD with 240GB 3D NAND TLC, 560 MBps read, 280 MBps write, 90,000 IOPS random read, 16,000 IOPS random write, AES 256-bit encryption.

  • Form Factor2.5"
  • Capacity240GB
  • Memory Components3D NAND TLC
  • InterfaceSATA III
  • Max Sequential ReadUp to 560 MBps
  • Max Sequential WriteUp to 280 MBps

Options 240GB

Struck-through versions exist but are not stocked here.

  • Accelerates read-intensive workloads with up to 560 MB/s sequential read
  • Protects data during unexpected power loss with enhanced power-loss protection
  • Secures sensitive information using AES 256-bit hardware encryption
  • Delivers long-term reliability backed by 2,000,000 hours MTBF
  • Reduces server power draw with 1.0 W idle and 2.4 W active consumption

Enterprise read-optimised SSD

The Intel D3-S4510 240 GB 2.5-inch SATA III drive is built for servers that replace mechanical disks with solid-state storage. It targets read-heavy workloads such as web serving, content delivery and virtualised boot volumes where consistent latency matters more than peak write throughput.

Sustained load behaviour

Sequential reads reach 560 MB/s while writes top out at 280 MB/s, and the controller maintains 90,000 random read IOPS alongside 16,000 random write IOPS under steady state. Latency stays at 36 µs read and 37 µs write, and the 0.9 PBW endurance rating reflects the TLC NAND design for read-intensive duty cycles.

Upgrade path and fit

The drive drops into existing SATA 6 Gb/s backplanes and RAID controllers without firmware changes, letting operators retire 2.5-inch HDDs while keeping cabling and power budgets intact. Enhanced power-loss data protection, AES 256-bit encryption and temperature logging preserve data integrity during the migration, making the switch worthwhile when reliability and lower operating cost outweigh the need for maximum write speed.

Highlights

  • Accelerates read-intensive workloads with up to 560 MB/s sequential read
  • Protects data during unexpected power loss with enhanced power-loss protection
  • Secures sensitive information using AES 256-bit hardware encryption
  • Delivers long-term reliability backed by 2,000,000 hours MTBF
  • Reduces server power draw with 1.0 W idle and 2.4 W active consumption

Specifications

BrandIntel
SeriesD3-S4510
ModelSSDSC2KB240G801
Form Factor2.5"
Capacity240GB
Memory Components3D NAND TLC
InterfaceSATA III
Max Sequential ReadUp to 560 MBps
Max Sequential WriteUp to 280 MBps
4KB Random ReadUp to 90,000 IOPS
4KB Random WriteUp to 16,000 IOPS
Read Latency36 µs
Write Latency37 µs
MTBF2,000,000 hours
FeaturesEndurance Rating (Lifetime Writes): 0.9 PBW
Enhanced Power Loss Data Protection: Yes
Hardware Encryption: AES 256 bit
Temperature Monitoring and Logging: Yes
End-to-End Data Protection: Yes
Compatible with existing SATA setups for an easy storage upgrade
Up to 6x lower power1 and lower cooling1 requirements than 2.5-inch HDDs
3.2x more data in the same amount of space
Up to 4.2x lower annualized failure rates (AFR) for fewer drive replacements
Up to 300x more IOPS/TB than HDDs
Power Consumption (Idle)1.0W
Power Consumption (Active)2.4W
Operating Temperature0°C ~ +70°C
Max Shock Resistance1000G / 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS
Non-Operating: 3.13 GRMS
Height7.00mm
Shipping weight0.45 kg
Package size305 × 229 × 102 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat and power does the SSDSC2KB240G801 produce when it runs 24/7?

Active power draw is 2.4W and idle power is 1.0W. The drive is rated for 0°C to 70°C operating temperature with temperature monitoring and logging built in.

What must my server already have for this 2.5" SATA III drive to work?

A standard 2.5-inch drive bay with a SATA 6Gb/s data connector and a SATA power connector. No extra cables, adapters or RAID cards are required beyond the normal SATA infrastructure.

Will the Intel D3-S4510 240GB replace my older SATA HDDs without firmware or caddy issues?

Yes. The drive uses the same SATA III 6Gb/s interface and 2.5-inch form factor as legacy HDDs, and Intel firmware is designed for drop-in compatibility with existing SATA setups.
