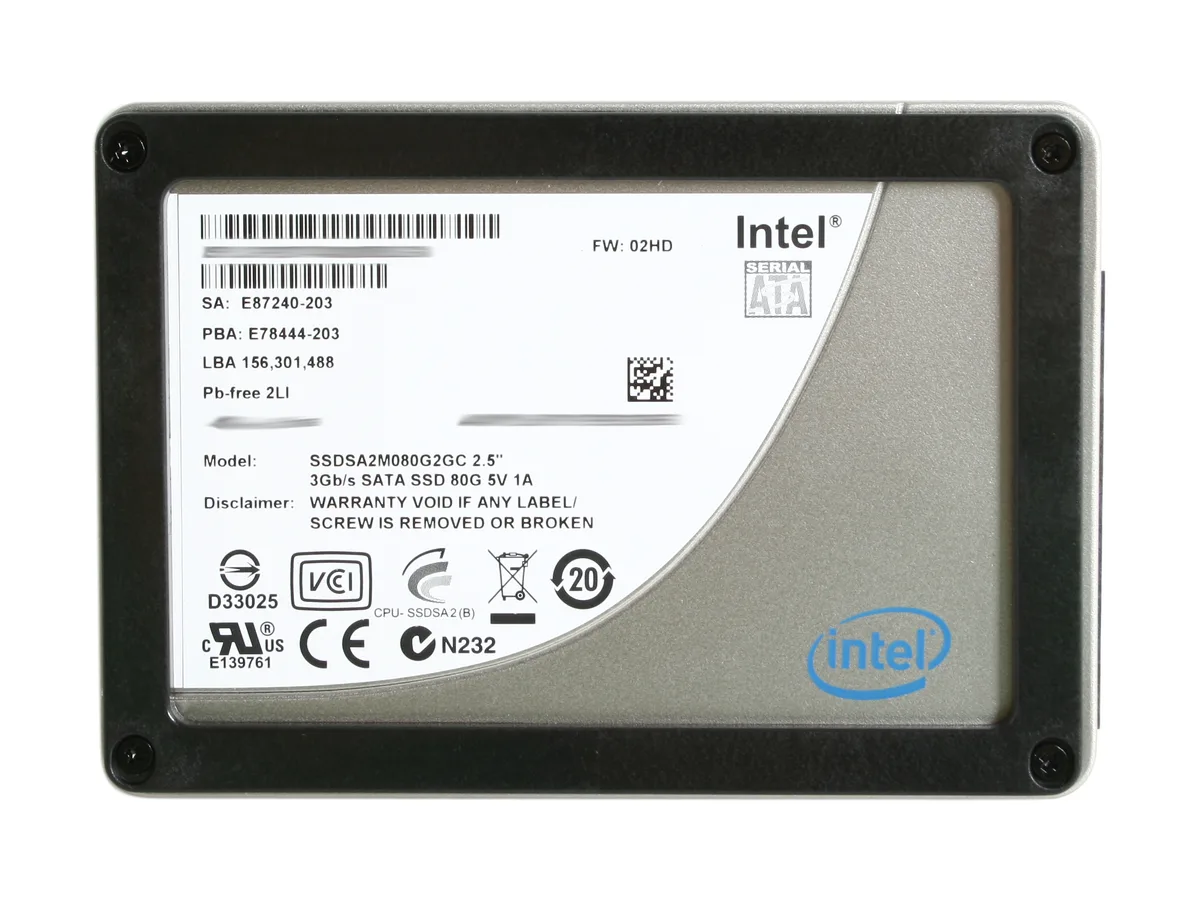

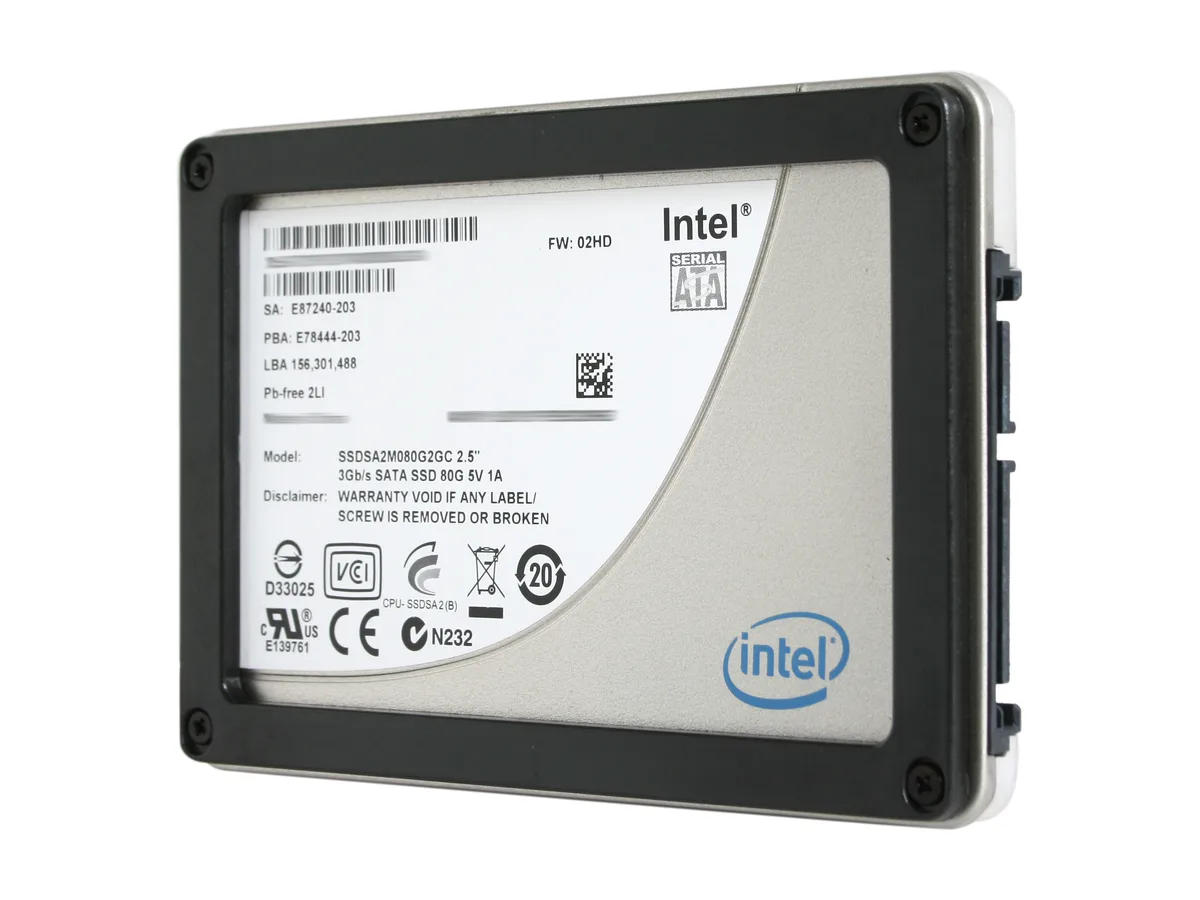

Silver rectangular 2.5 inch internal SSD with label showing Intel X25-M 80GB

Intel

Intel X25-M 80GB 2.5" SATA II internal SSD SSDSA2MH080G2K5

SKU CH-TCX4-7MFEX MPN SSDSA2MH080G2K5

An 80GB 2.5" SATA internal SSD with MLC memory, delivering 250MB/s read and 70MB/s write speeds for notebook and desktop upgrades

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form Factor2.5"
  • Capacity80GB
  • Memory ComponentsMLC
  • InterfaceSATA II
  • Faster boot and load times with 250 MB/s read speed
  • Smoother file saves and installs at 70 MB/s write speed
  • Long-term reliability backed by 1,200,000-hour MTBF
  • Lower heat and longer battery life from 75 mW idle draw
  • Drop-in 2.5" fit for notebook or desktop upgrade

80GB SATA II Internal SSD

The Intel X25-M is an 80GB internal solid-state drive built for consumer notebooks and desktops. It uses MLC NAND flash memory and a 2.5-inch form factor that fits standard hard-drive bays. The SATA II interface provides broad compatibility with older and current platforms.

Thermals Noise and Power Draw

Typical idle power consumption is 75 mW and active power consumption is 150 mW. The drive has no moving parts, so it operates silently and generates minimal heat. It is rated to withstand operating vibration of 2.17G at 5-700 Hz and non-operating vibration of 3.13G at 5-800 Hz.

Sustained Sequential Read Speed

Sustained sequential read reaches up to 250MBps while sustained sequential write reaches up to 70MBps. TRIM support is included for Windows 7, with the Intel SSD Toolbox providing TRIM for Vista and XP. The MTBF is rated at 1,200,000 hours.

Highlights

  • Faster boot and load times with 250 MB/s read speed
  • Smoother file saves and installs at 70 MB/s write speed
  • Long-term reliability backed by 1,200,000-hour MTBF
  • Lower heat and longer battery life from 75 mW idle draw
  • Drop-in 2.5" fit for notebook or desktop upgrade

Specifications

BrandIntel
SeriesX25-M
ModelSSDSA2MH080G2K5
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form Factor2.5"
Capacity80GB
Memory ComponentsMLC
InterfaceSATA II
Sustained Sequential ReadUp to 250MBps
Sustained Sequential WriteUp to 70MBps
MTBF1,200,000 hours
FeaturesTRIM Support on Microsoft Windows 7 (for Trim support on Windows Vista and XP, utilize the Free Intel SSD Toolbox Software)
2.5" form factor – Drop-in compatible with standard Hard Disk Drives (HDD)
Operating temperature: 0°C to 70°C
No moving parts, 1500G shock resistance
RAID support
Award winning SSD based on 34nm NAND memory
Compatible with both PC and Apple, and all operating systems

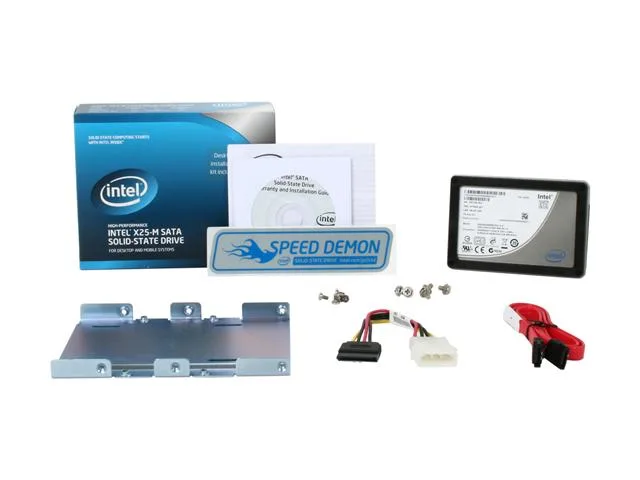

Includes 2.5" to 3.5" bracket and cables in boxes with desktop migration kit
Power Consumption (Idle)75 mW Typical
Power Consumption (Active)150 mW Typical
Max Shock Resistance1500G / 0.5 msec
Max Vibration ResistanceOperating: 2.17G (5-700 Hz)
Non-operating: 3.13G (5-800 Hz)
Height9.5mm
Shipping weight0.91 kg
Package size146 × 114 × 44 mm

Questions about this item

How do I install this 2.5" SATA drive and which step do people often miss?

Mount the 9.5mm high drive in a 2.5" bay, connect the SATA data and power cables, then enable AHCI in the BIOS before installing the OS; skipping AHCI disables TRIM and cuts write speed.

What maintenance will this MLC SSD need later?

Run the Intel SSD Toolbox periodically to trigger a manual TRIM on Windows Vista or XP; Windows 7 handles TRIM automatically, and the 1,200,000-hour MTBF means no scheduled hardware replacement.

What limit appears first during sustained writes on this 80GB model?

The sustained sequential write ceiling of 70MBps is reached well before the 150mW active power limit or the 1500G shock rating become factors.
