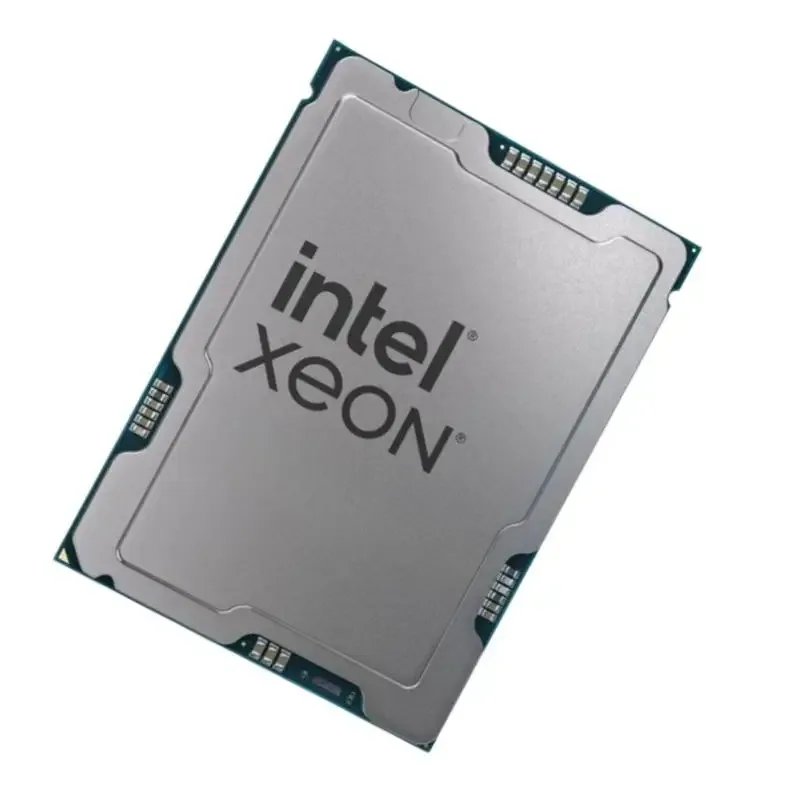

Intel Xeon 696X server processor in LGA 4710 package, silver heat spreader with gold contacts

Intel

Intel Xeon 696X 2.4 GHz LGA 4710 64-Core 350W server processor BX80720696X

SKU CH-QV5E-2VJ3W MPN BX80720696X

64-core server processor reaching 4.8 GHz turbo with 336 MB L3 cache, DDR5 6400 MRDIMM 8000 support and 128 PCIe 5.0 lanes

  • NameXeon 696X
  • CPU Socket TypeLGA 4710
  • Core NameGranite Rapids
  • # of Cores64-Core (64P+0E)
  • # of Threads128
  • Operating Frequency2.4 GHz
  • 64 performance cores deliver massive parallel throughput for heavy workloads
  • 128 threads with Hyper-Threading double logical capacity for virtualization density
  • 336 MB L3 cache keeps large data sets close to the cores
  • DDR5 6400 MT/s and MRDIMM 8000 MT/s over eight channels feed memory-hungry applications
  • PCIe 5.0 with 128 lanes provides high-bandwidth I/O for storage and accelerators

64-Core Xeon 696X for single-socket servers

The Intel Xeon 696X is a 64-core, 128-thread server processor built on the Intel 3 process. It targets single-socket platforms using the LGA 4710 socket and delivers a 2.4 GHz base frequency with turbo up to 4.8 GHz. The chip provides 336 MB of L3 cache and an 8-channel memory controller supporting DDR5 6400 MHz and MRDIMM 8000 MHz.

Suited for dense compute.

This processor suits workloads that need high core counts and large memory capacity in a single-socket form factor, such as virtualisation, database and HPC tasks. The 1S-only scalability means it cannot be used in dual-socket or larger symmetric multiprocessing systems. Buyers needing multi-socket scale should look at processors that support 2S or higher configurations.

350 W base with 420 W turbo ceiling under

The thermal design power is rated at 350 W and the maximum turbo power reaches 420 W, so cooling and power delivery must handle the higher figure during prolonged boost periods. PCI Express 5.0 provides 128 lanes for high-bandwidth I/O. Instruction support includes SSE4.1, SSE4.2, AVX2, AVX-512 and AMX for accelerated vector and matrix workloads.

Highlights

  • 64 performance cores deliver massive parallel throughput for heavy workloads
  • 128 threads with Hyper-Threading double logical capacity for virtualization density
  • 336 MB L3 cache keeps large data sets close to the cores
  • DDR5 6400 MT/s and MRDIMM 8000 MT/s over eight channels feed memory-hungry applications
  • PCIe 5.0 with 128 lanes provides high-bandwidth I/O for storage and accelerators

Specifications

BrandIntel
SeriesXeon 6
NameXeon 696X
Part NumberBX80720696X
CPU Socket TypeLGA 4710
Core NameGranite Rapids
# of Cores64-Core (64P+0E)
# of Threads128
Operating Frequency2.4 GHz
Max Turbo FrequencyMax Turbo Frequency: 4.8 GHz
Intel Turbo Boost Max Technology 3.0 Frequency: 4.8 GHz
Intel Turbo Boost Technology 2.0 Frequency: 4.6 GHz
L3 Cache336MB
64-Bit SupportYes
Hyper-Threading SupportYes
Manufacturing TechIntel 3
Integrated Memory Controller SpeedDDR5 6400MHz
MRDIMM 8000MHz
Maximum Memory Capacity4TB
Memory Channel8 Channel
Virtualization Technology SupportYes
Scalability1S Only
PCI Express Revision5.0
Max # of PCI Express Lanes128
Multimedia InstructionIntel SSE4.1, Intel AMX, Intel SSE4.2, Intel AVX2, Intel AVX-512
Thermal Design Power350W
Max Turbo Power420W
Shipping weight0.23 kg
Package size145 × 114 × 41 mm

Questions about this item

What motherboard socket is required for the Xeon 696X processor?

The Xeon 696X requires a motherboard with an LGA 4710 socket.

Can the Xeon 696X operate in a dual-socket configuration alongside another processor?

The Xeon 696X supports 1S only, meaning it is designed for single-socket platforms and cannot be paired with a second CPU.

How can I verify the Xeon 696X is reaching its maximum turbo frequency after installation?

Monitor the CPU frequency under load using system utilities; the processor can reach up to 4.8 GHz via Intel Turbo Boost Max Technology 3.0.
