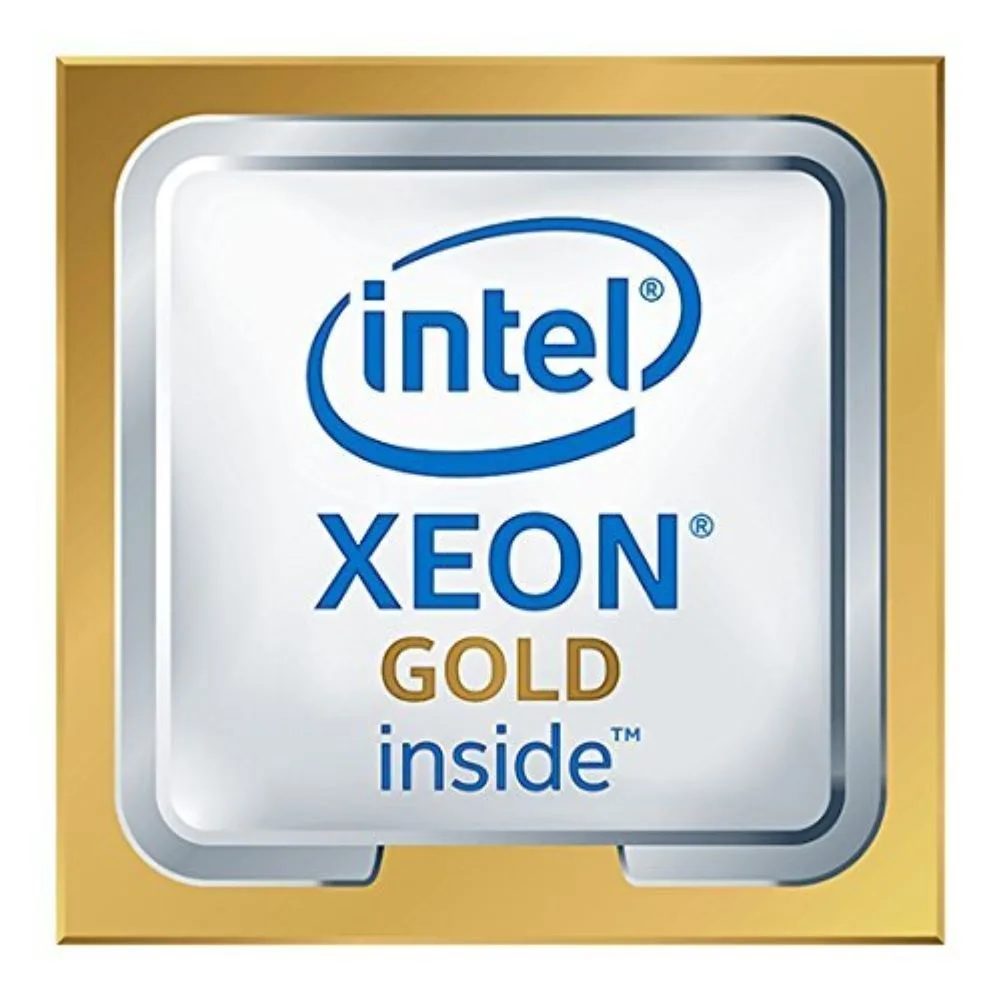

Silver square processor with gold contacts and green substrate, boxed Intel Xeon Gold 6252 24-core LGA 3647 server CPU

Intel

Intel Xeon Gold 6252 24-Core 2.1 GHz 36MB LGA 3647 150W BX806956252 server processor

SKU CH-MAGA-RR99R MPN BX806956252

24-core server processor with 2.1 GHz base and 3.7 GHz turbo, 36 MB cache, 150 W TDP, LGA 3647 socket, DDR4 ECC support

  • NameXeon Gold 6252
  • CPU Socket TypeLGA 3647
  • # of Cores24-Core
  • # of Threads48
  • Operating Frequency2.1 GHz
  • Max Turbo Frequency3.7 GHz
  • 24 cores and 48 threads handle heavy parallel workloads
  • 7 GHz max turbo frequency accelerates single-thread bursts
  • 36 MB L3 cache reduces latency for large datasets
  • Six-channel DDR4 support with ECC protects data integrity
  • 150 W TDP at 14 nm balances performance and power draw

24-core Xeon Gold 6252 server processor

The Intel Xeon Gold 6252 is a 24-core server processor built for multi-threaded workloads in data-centre environments. It delivers 48 threads at a 2.1 GHz base frequency with a 3.7 GHz maximum turbo frequency. The LGA 3647 socket and 150 W thermal design target rack-mounted systems requiring sustained throughput.

PCIe 3.0 platform with 48 lanes and six memory

The processor communicates through a PCI Express 3.0 interface limited to 48 lanes, capping total I/O bandwidth for attached accelerators, storage controllers and network adapters. Six DDR4 memory channels provide the only supported memory topology, so population rules and maximum capacity follow the platform specification rather than this CPU alone.

150 W TDP without a bundled cooler

A 150 W thermal design power means the part requires a server-grade heatsink or liquid loop rated for at least that load; no cooling device is included in the box. Builders who cannot provision adequate airflow or a compatible mounting solution should select a lower-power SKU instead.

Highlights

  • 24 cores and 48 threads handle heavy parallel workloads
  • 7 GHz max turbo frequency accelerates single-thread bursts
  • 36 MB L3 cache reduces latency for large datasets
  • Six-channel DDR4 support with ECC protects data integrity
  • 150 W TDP at 14 nm balances performance and power draw

Specifications

BrandIntel
SeriesIntel Xeon Gold
NameXeon Gold 6252
ModelBX806956252
CPU Socket TypeLGA 3647
# of Cores24-Core
# of Threads48
Operating Frequency2.1 GHz
Max Turbo Frequency3.7 GHz
L3 Cache36MB
Manufacturing Tech14 nm
64-Bit SupportYes
Hyper-Threading SupportYes
Memory Channel6 Channel
PCI Express Revision3.0
Max # of PCI Express Lanes48
Thermal Design Power150W
Cooling DeviceCooling device not included - Processor Only
Shipping weight0.45 kg
Package size137 × 114 × 46 mm

Questions about this item

How do I choose between the 2.1 GHz base and 3.7 GHz turbo speeds?

The 2.1 GHz base clock is the guaranteed all-core speed under load; the 3.7 GHz turbo is the maximum single-core boost when thermal headroom allows. Pick the base figure for sustained throughput, the turbo for bursty workloads.

What does the 3.7 GHz turbo mean once the chip is in a real server?

It is the peak frequency one core can reach when power and temperature stay within the 150 W limit. In multi-threaded jobs all 24 cores typically run closer to the 2.1 GHz base.

What does PCIe 3.0 with 48 lanes cap in practice?

The 48 lanes carry GPU, storage or networking traffic at PCIe 3.0 speeds. Bandwidth per lane is fixed by the 3.0 spec, so total I/O throughput tops out at the aggregate of those 48 lanes.
