Green rectangular processor package with gold contacts and silver heat spreader, labelled Intel Xeon Phi 7230 64-core

Intel

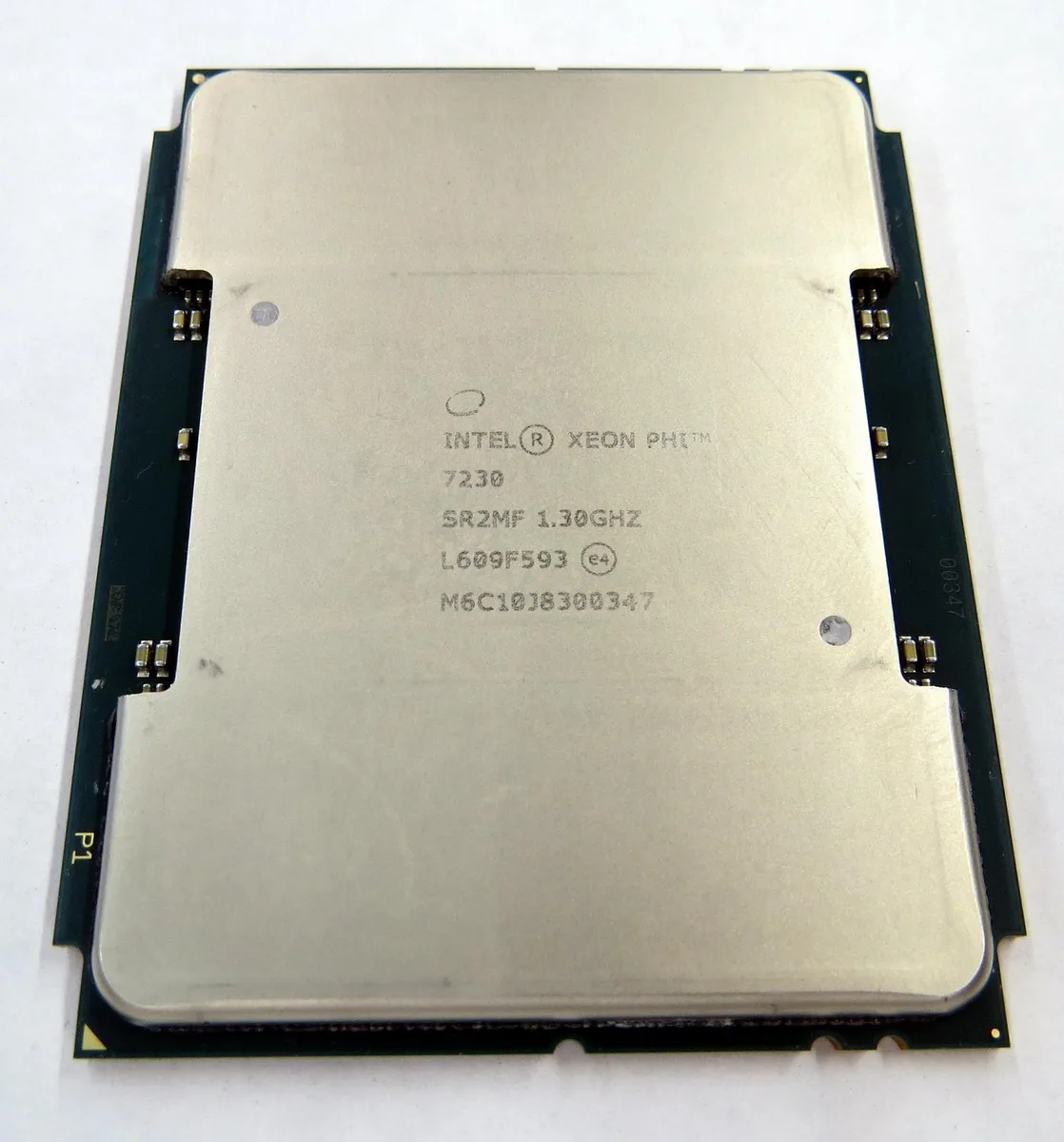

Intel Xeon Phi 7230 64-core 1.3 GHz desktop processor

SKU CH-A62T-YQ1BW MPN 7230

64-core Knights Landing processor at 1.3 GHz with 32 MB L2 cache for Socket 3647 systems

  • Processors TypeProcessor
  • Name7230
  • CPU Socket TypeSocket 3647
  • Core NameKnights Landing
  • # of Cores64-Core
  • # of Threads64-Threads
  • 64 cores deliver massive parallel throughput for HPC workloads
  • 5 GHz max turbo boosts peak performance on demanding threads
  • 14 nm Knights Landing architecture balances compute density with power efficiency
  • 32 MB L2 cache reduces latency for data-intensive applications
  • DDR4 2400 memory support enables high bandwidth for large datasets

64-core Knights Landing processor

The Intel Xeon Phi 7230 is a 64-core processor built on the Knights Landing architecture with a base frequency of 1.3 GHz and a maximum turbo of 1.5 GHz. It targets highly parallel workloads such as high-performance computing and machine learning. The chip uses a 14 nm manufacturing process and provides 32 MB of L2 cache.

Socket 3647 and DDR4 2400 requirements

Verify that the motherboard uses an LGA 3647 socket and supports the Xeon Phi 7200 series before ordering. The memory controller works with DDR4 2400 modules, so confirm DIMM compatibility and BIOS revision. Power delivery must handle a 215 W thermal design power.

Server board integration and parallel throughput

Compatible platforms include the Intel Server Board S7200AP, S7200APL, and HNS7200AP compute modules. The 64 cores and 64 threads free the system from relying on accelerator cards for many parallel tasks, allowing standard x86 code to scale across the chip.

Highlights

  • 64 cores deliver massive parallel throughput for HPC workloads
  • 5 GHz max turbo boosts peak performance on demanding threads
  • 14 nm Knights Landing architecture balances compute density with power efficiency
  • 32 MB L2 cache reduces latency for data-intensive applications
  • DDR4 2400 memory support enables high bandwidth for large datasets

Specifications

BrandIntel
Processors TypeProcessor
SeriesXeon
Name7230
ModelSR2MF
CPU Socket TypeSocket 3647
Core NameKnights Landing
# of Cores64-Core
# of Threads64-Threads
Operating Frequency1.3 GHz
Max Turbo Frequency1.5GHz
FSBN.A
L1 Cache32 MB
L2 Cache32 MB
Manufacturing Tech14nm
Instruction Set64-Bit
Hyper-Threading SupportN/A
Hyper-Transport SupportN/A
Memory TypesDDR4 2400
Memory ChannelIntel Xeon Processor SR2S6 E7-8867 v4 18-Core 2.4GHz 45M Cache 165W 9.6GT/s QPI FCLGA2011-1 CM8066902028403 - https://ark.intel.com/products/93804
Virtualization Technology SupportNo
Integrated GraphicsN/A
Graphics Base Frequency1.30 GHz
Thermal Design Power215 W
Cooling DeviceCooling device not included - Processor Only
Operating System SupportedN/A

Questions about this item

Does the 215 W TDP require a specific cooling solution?

A server-grade cooler rated for at least 215 W and a Socket 3647 mounting kit is required; standard desktop coolers will not fit the LGA 3647 package.

Can this processor run in a standard ATX motherboard?

No, it only works with Intel Server Board S7200AP, S7200APL or the HNS7200AP/APL compute modules; those boards use the LGA 3647 socket and matching power delivery.

What memory speed and type does the 7230 officially support?

DDR4 2400 is the supported memory type; populate all six channels on the compatible server board for maximum bandwidth.
