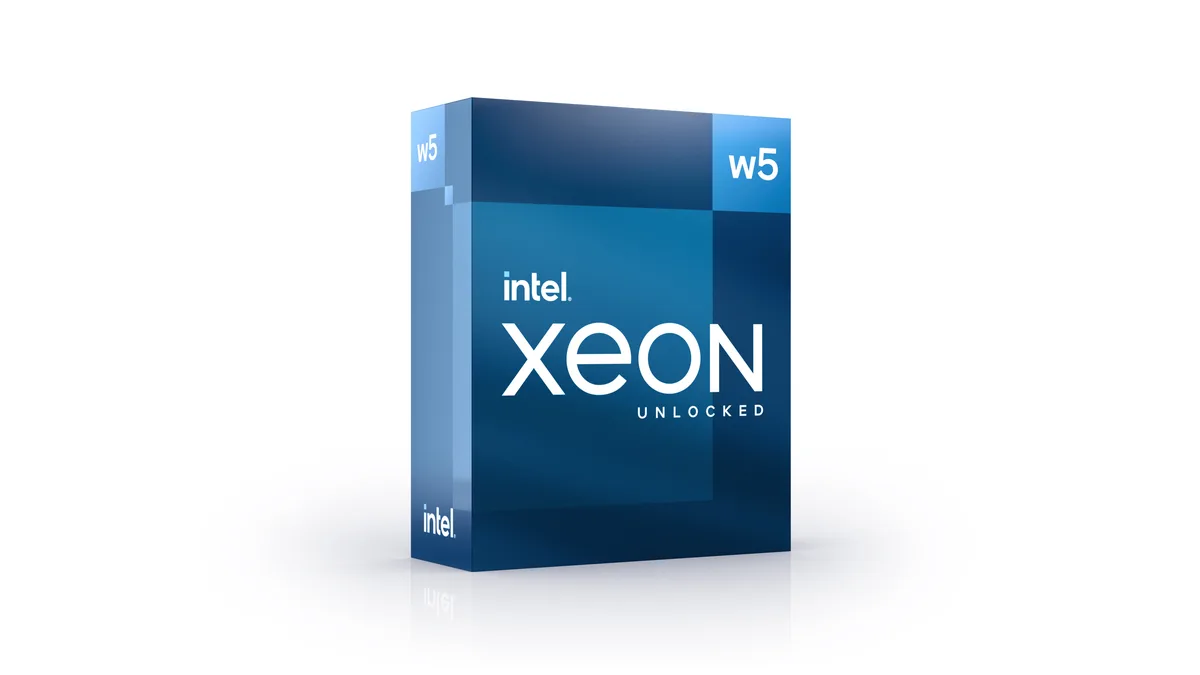

Intel Xeon W5-3435X processor in boxed retail packaging

Intel

Intel Xeon W5-3435X 16-core 3.10 GHz server processor BX807133435X

SKU CH-BDDQ-PF57G MPN BX807133435X

16-core Xeon workstation processor running at 3.1 GHz with 45 MB L3 cache, 32 threads, DDR5-4800 support across eight channels, 112 PCIe 5.0 lanes and a 4.7 GHz max turbo frequency

  • NameXeon W5-3435X
  • CPU Socket TypeLGA 4677
  • Core NameSapphire Rapids
  • # of Cores16-Core
  • # of Threads32
  • Operating Frequency3.1 GHz
  • 16 cores and 32 threads handle heavy multi-threaded workloads
  • 45 MB L3 cache reduces latency for data-intensive tasks
  • Max turbo frequency 4.70 GHz accelerates single-thread performance
  • DDR5 4800 eight-channel memory controller supports up to 4 TB capacity
  • PCIe 5.0 with 112 lanes enables high-speed I/O expansion

16-core Xeon for workstation workloads

The Intel Xeon W5-3435X is a 16-core, 32-thread server processor built for professional workstations. It runs at a 3.10 GHz base frequency with a maximum turbo of 4.70 GHz. The chip provides 45 MB of L3 cache and supports up to 4 TB of DDR5-4800 memory across eight channels. It fits the LGA 4677 socket and has a 324 W thermal design power.

Eight-channel DDR5 and 112 PCIe 5.0 lanes

The integrated memory controller drives eight channels of DDR5-4800, giving bandwidth for large datasets and multi-threaded applications. The platform exposes up to 112 lanes of PCI Express 5.0 for high-speed storage, GPUs and networking cards. Hyper-Threading and virtualisation support are included for dense container or VM deployments. No cooler is bundled in the box.

Verify LGA 4677 motherboard and 324 W cooling

Confirm your motherboard uses the LGA 4677 socket and a chipset that enables the full eight-channel memory controller and 112 PCIe 5.0 lanes. The 324 W TDP requires a cooler and chassis airflow rated for that heat load. Ensure the power delivery subsystem can sustain the processor at its 4.70 GHz turbo frequency. Memory must be DDR5; earlier generations are not compatible.

Highlights

  • 16 cores and 32 threads handle heavy multi-threaded workloads
  • 45 MB L3 cache reduces latency for data-intensive tasks
  • Max turbo frequency 4.70 GHz accelerates single-thread performance
  • DDR5 4800 eight-channel memory controller supports up to 4 TB capacity
  • PCIe 5.0 with 112 lanes enables high-speed I/O expansion

Specifications

BrandIntel
SeriesIntel Xeon W
NameXeon W5-3435X
ModelBX807133435X
CPU Socket TypeLGA 4677
Core NameSapphire Rapids
# of Cores16-Core
# of Threads32
Operating Frequency3.1 GHz
Max Turbo FrequencyMax Turbo Frequency: 4.70 GHz
Intel Turbo Boost Max Technology 3.0 Frequency: 4.70 GHz
Intel Turbo Boost Technology 2.0 Frequency: 4.50 GHz
L3 Cache45MB
64-Bit SupportYes
Hyper-Threading SupportYes
Manufacturing Tech7 nm
Integrated Memory Controller SpeedDDR5 4800
Maximum Memory Capacity4TB
Memory Channel8 Channel
Virtualization Technology SupportYes
PCI Express Revision5.0
Max # of PCI Express Lanes112
Thermal Design PowerProcessor Base Power: 270 W
Maximum Turbo Power: 324 W
Shipping weight1.76 kg
Package size132 × 107 × 33 mm

Questions about this item

What cooling capacity does the 324 W TDP require for continuous operation?

A cooler rated for at least 324 W of heat dissipation is needed to maintain base clocks under sustained load, otherwise the processor will throttle to stay within its thermal limit

Will the 112 PCIe 5.0 lanes become a bottleneck before the 16 cores do?

The 112 lanes provide up to 112 GB/s of aggregate bandwidth, so most multi-GPU or storage arrays saturate the 16 cores before exhausting the lane budget

How loud and hot does the boxed cooler run during an all-day render at 3.1 GHz base clock?

No boxed cooler is included; a 324 W TDP demands a high-end tower or liquid cooler that will move significant air and produce audible fan noise under full load
