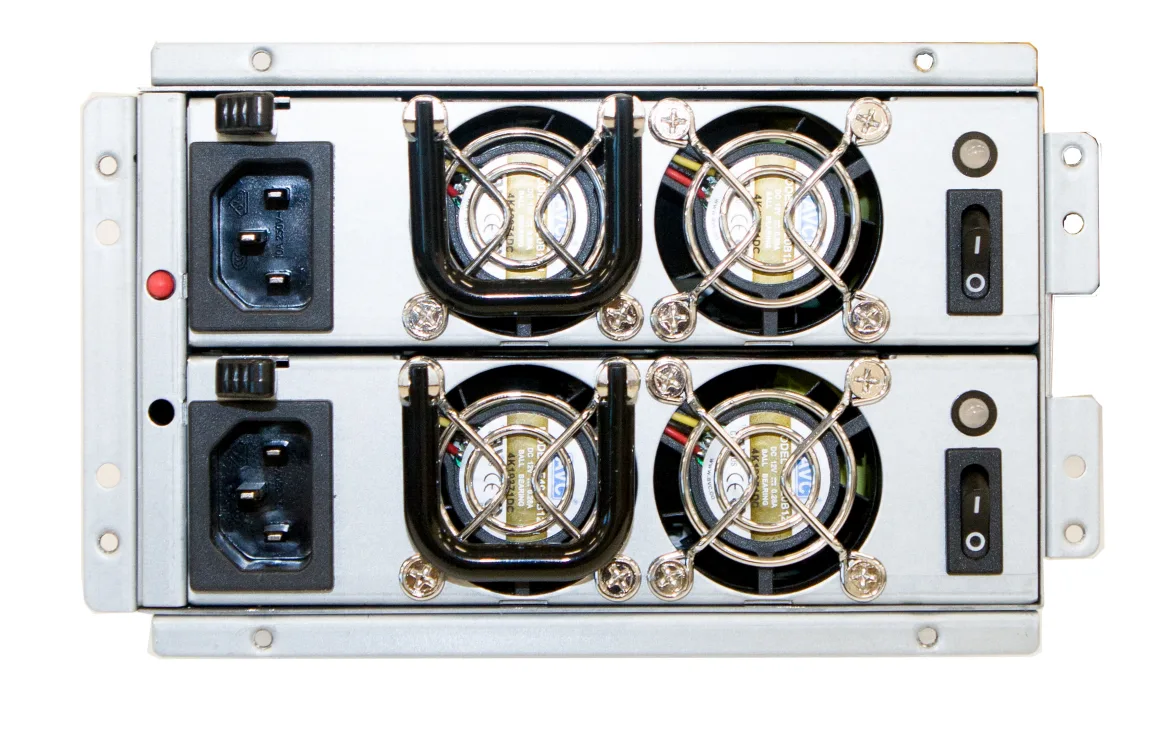

Redundant PSU in metal chassis, dual modules, four fans visible, 140 mm deep

iStarUSA Inc.

iStarUSA Inc. Xeal IS-600R8PUC 600 W redundant power supply

SKU CH-YH72-6AKNX MPN IS-600R8PUC

A 600 W redundant PS2 mini power supply with dual AC inputs, hot-swappable modules, four fans and 80 % efficiency at full load

  • TypeRedundant Power Supply
  • Maximum Power600 W
  • Fans4
  • Main Connector20+4Pin
  • +12V RailsSingle
  • PCI-Express Connector1 x 6-Pin
  • Zero downtime with dual AC input and 600 W redundancy
  • Hot-swappable modules keep the system running during replacement
  • 80 % efficiency at full load reduces waste heat
  • OVP, OCP, SCP and OTP protect every rail
  • MTBF exceeds 250000 hours for long-term reliability

Redundant 600 W server supply

This unit delivers 600 W through two hot-swappable modules that share the load. It targets administrators who need zero-downtime power for rack-mount servers or workstations. The PS2 footprint fits standard ATX or 4U chassis without modification.

Hot-swap modules and alarm signals

Each module can be replaced while the system runs, and the built-in alarm sounds on any power failure. Remote on/off control via PSON lets management software cycle power without physical access. Status LEDs on every module show health at a glance.

140 mm depth with full protection suite

The 140 mm length keeps cable routing clear in dense enclosures. Four internal fans move air across both modules. Over-voltage, over-current, short-circuit and over-temperature circuits guard connected hardware. MTBF exceeds 250000 hours and the design meets IEC 62368 safety requirements.

Highlights

  • Zero downtime with dual AC input and 600 W redundancy
  • Hot-swappable modules keep the system running during replacement
  • 80 % efficiency at full load reduces waste heat
  • OVP, OCP, SCP and OTP protect every rail
  • MTBF exceeds 250000 hours for long-term reliability

Specifications

BrandiStarUSA
SeriesXeal
ModelIS-600R8PUC
Part NumberIS-600R8PUC
TypeRedundant Power Supply
Maximum Power600 W
Fans4
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector1 x 6-Pin
SATA Power Connector4
Max PSU Length140 mm
Floppy Connector1
FeaturesEfficiency: 80% at full load
PSON Remote on/off Control
Power Failure Alarm & Signals
Power Status LED on Module
OVP (Over Voltage Protection)
OCP (Over Current Protection)
SCP (Short Circuit Protection)
OTP (Over Temperature Protection)
MTBF > 250000 Hours
Meet IEC62368
Shipping weight4.54 kg
Package size305 × 254 × 203 mm

Questions about this item

When do the hot-swap modules in the IS-600R8PUC typically need replacement?

The modules are rated for an MTBF above 250000 hours, so replacement is unlikely during the normal service life of a server.

What limits continuous 600 W output in the Xeal IS-600R8PUC?

The 80 percent efficiency at full load means 20 percent of input power becomes heat that the four fans must exhaust.

How loud and hot does the IS-600R8PUC get when running all day?

Four fans and the power failure alarm signal active cooling, while the 140 mm depth fits standard 4U airflow paths to manage heat.
