Green micro-ATX board with silver heatsinks and ARGB lighting accents

JGINYUE

JGINYUE B450M TI ARGB AMD motherboard

SKU CH-B2B9-3X3WV

Micro-ATX AM4 board with RGB lighting, dual-channel DDR4 up to 64 GB, two M.2 NVME slots, four SATA ports, HDMI, DVI, VGA and six USB 3.0 ports

  • CPU Socket TypeAM4
  • ChipsetAMD B450
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 3200
  • Maximum Memory Supported64GB
  • Channel SupportedDual Channel
  • Supports Ryzen 1000 to 5000 processors on AM4 socket
  • Dual-channel DDR4 up to 64GB across four 288-pin slots
  • Memory speeds from 2133 to 3600MHz with XMP support
  • Two M.2 slots with NVME protocol plus four SATA 6Gb/s ports
  • Micro ATX form factor measuring 9.25" x 8.46" with RGB lighting

B450M TI ARGB Micro ATX Motherboard

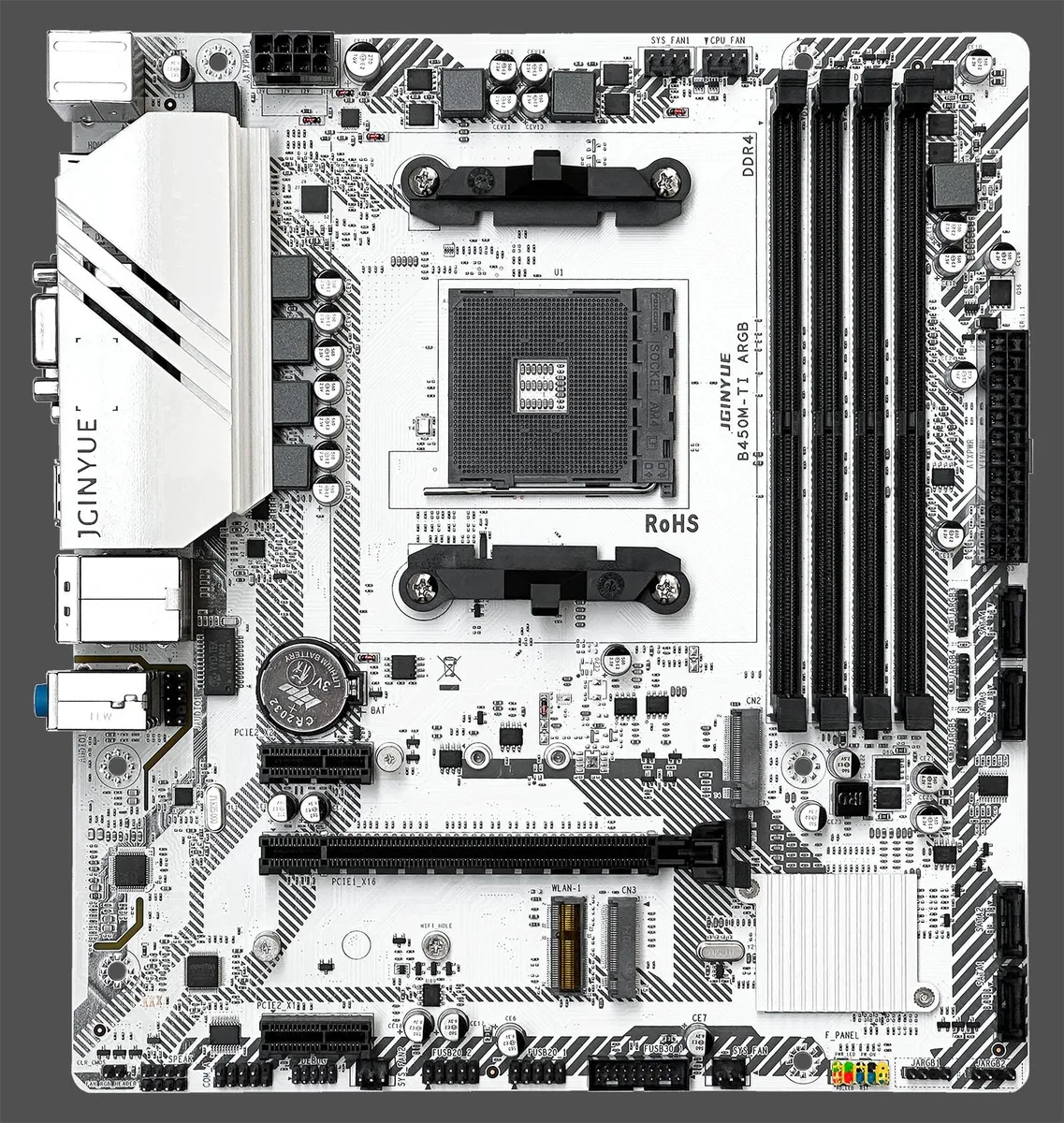

This JGINYUE board uses the AMD B450 chipset in a Micro ATX layout measuring 9.25 by 8.46 inches. It fits Ryzen 1000 2000 3000 4000 5000 series CPUs in the AM4 socket. Four DDR4 slots support dual channel memory up to 64GB. RGB lighting adds visual flair for compact builds.

PCIe 3.0 Lanes and Storage Limits

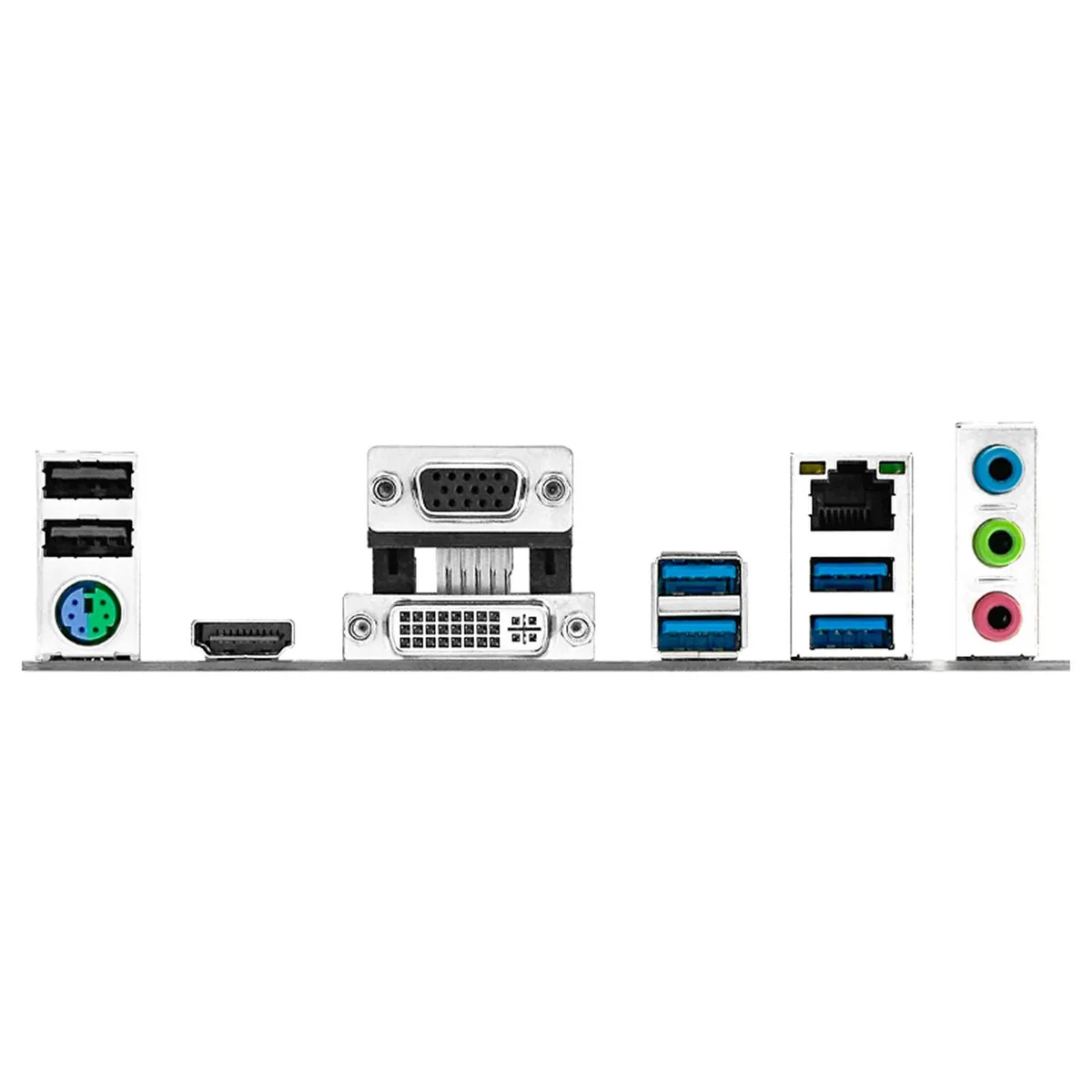

One PCI Express 3.0 x16 slot and two x1 slots handle graphics and add in cards at generation 3.0 speeds. Two M.2 connectors accept NVME protocol 3.0 drives. Four SATA 6Gb/s ports connect storage drives. The rear panel supplies five USB 3.0 and four USB 2.0 ports. A single RJ45 port and WiFi interface cover wired and wireless networking.

Connectors and Daily Use

HDMI DVI and VGA outputs give three display choices for systems using APUs or discrete cards. Front panel headers provide one USB 3.0 and two USB 2.0 connections for case ports. The 24 pin ATX and 8 pin CPU power sockets sit along the edge for tidy cable runs. Standard mounting holes align with any Micro ATX compatible chassis.

Highlights

  • Supports Ryzen 1000 to 5000 processors on AM4 socket
  • Dual-channel DDR4 up to 64GB across four 288-pin slots
  • Memory speeds from 2133 to 3600MHz with XMP support
  • Two M.2 slots with NVME protocol plus four SATA 6Gb/s ports
  • Micro ATX form factor measuring 9.25" x 8.46" with RGB lighting

Specifications

BrandJGINYUE
CPU Socket TypeAM4
ChipsetAMD B450
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 3200
Maximum Memory Supported64GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x12 x PCI Express x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.22 x M.2
Wireless LAN1 WiFi interface
HDMI1 x HDMI
RJ451 x RJ45
USB 3.05 x USB 3.0
USB 1.1/2.04 x USB 2.0
Form FactorMicro ATX
LED LightingRGB
Dimensions (W x L)9.25" x 8.46"
Power Pin24 Pin

Questions about this item

Should I fill all four DDR4 slots or stick to two for the best stability?

The board runs dual-channel across the four 288-pin slots; populating slots 1A and 2A gives the cleanest signal path, while all four slots work up to the 64 GB limit.

What does the 3600 MHz memory rating actually deliver in daily use?

3600 MHz is the top validated DDR4 speed; real-world throughput depends on the CPU's memory controller and the modules' XMP profile, so 3200 MHz is often the sweet spot.

How fast can the two M.2 sockets run with a PCIe 3.0 drive?

Both M.2 sockets use PCIe 3.0 lanes, so a compatible NVME drive is limited to the PCIe 3.0 x4 ceiling rather than newer 4.0 or 5.0 speeds.
