White micro-ATX motherboard with silver heatsinks, four DDR5 slots, three M.2 slots, and rear I/O panel including HDMI and USB Type-C

JGINYUE

JGINYUE B650E Snow Dream AM5 AMD motherboard

SKU CH-93YS-CD1F1

Micro-ATX AM5 board with 19-phase power, four DDR5 slots up to 192GB, three M.2 sockets including one PCIe 5.0, 2.5G LAN, Wi-Fi, USB 3.2 Type-C 10Gbps and four ARGB headers

  • CPU Socket TypeAM5
  • CPU TypeRyzen 9000/ 8000/ 7000 Series
  • ChipsetAMD B650E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 Up to 7000+MT/s (OC)
  • Maximum Memory Supported192GB
  • Supports Ryzen 9000, 8000 and 7000 processors on AM5 socket
  • Four DDR5 slots accept up to 192 GB at 7000 MT/s overclocked
  • Three M.2 slots include one PCIe 5.0 x4 and two PCIe 4.0 x4
  • 5 Gbps LAN plus WiFi-6E interface for fast networking

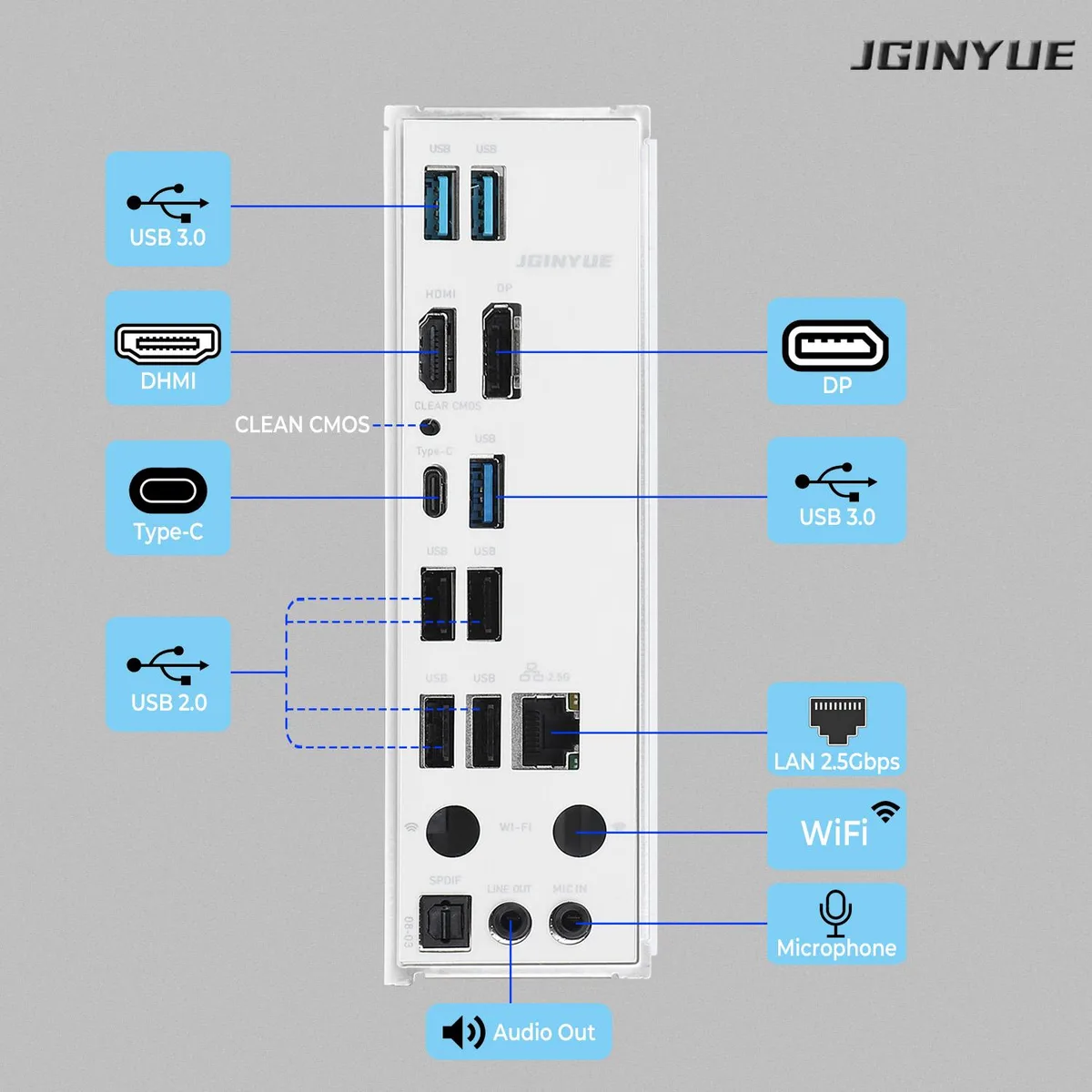

  • USB 3.2 Type-C at 10 Gbps and HDMI for quick peripheral hook-up

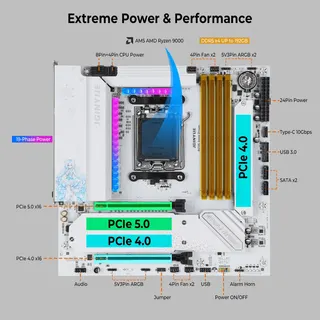

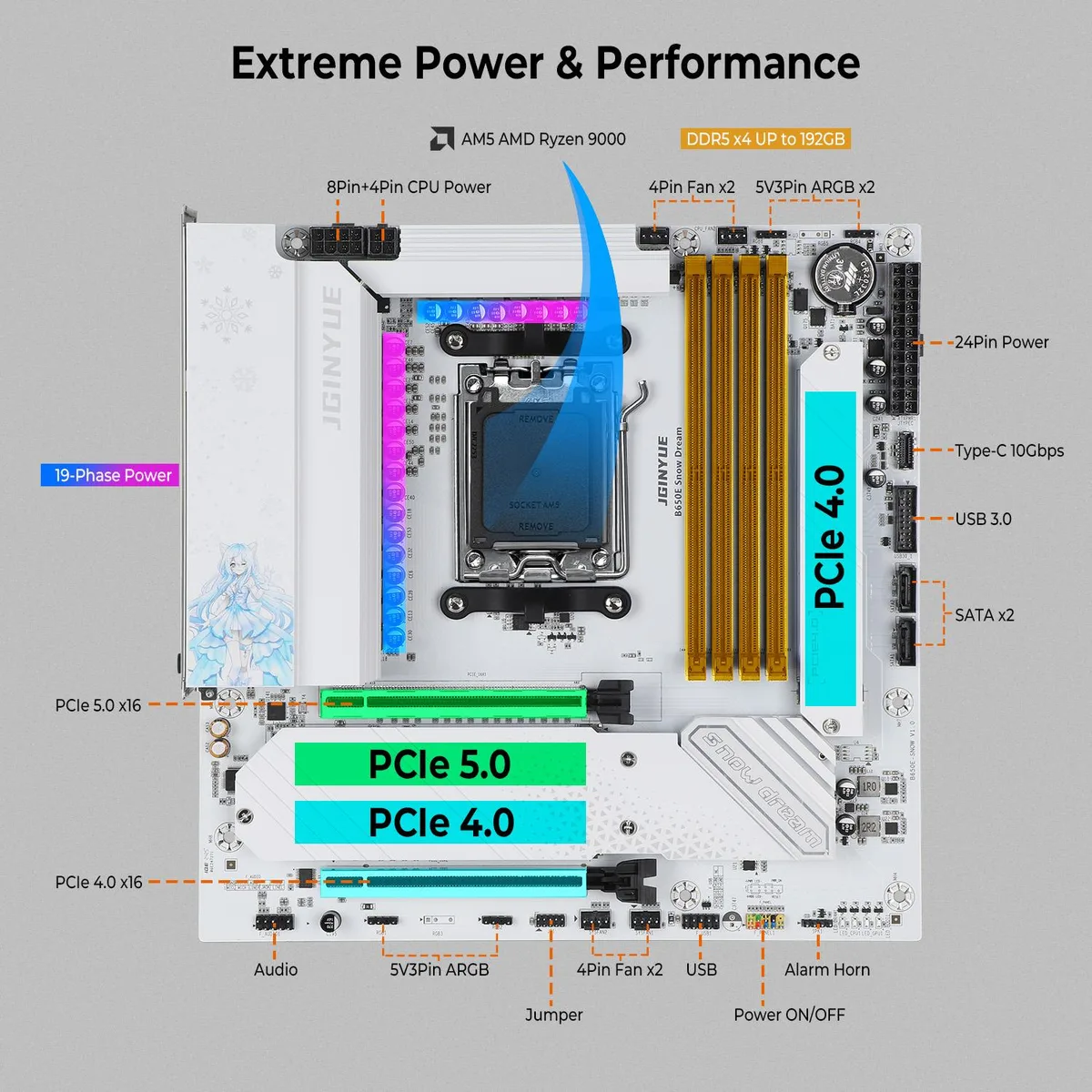

Socket AM5 Platform

The JGINYUE B650E Snow Dream is a Micro-ATX motherboard built around the AMD B650E chipset for AMD Ryzen 9000, 8000 and 7000 series processors. It provides four DDR5 memory slots supporting up to 192GB capacity with speeds up to 7000+ MT/s when overclocked via AMD EXPO profiles.

Expansion Focus

Builders needing three M.2 slots with one PCIe 5.0 x4 and two PCIe 4.0 x4 connections will find the storage layout generous. The single PCIe 5.0 x16 slot and secondary PCIe 4.0 x16 slot running at x4 speed limit multi-GPU configurations, so users planning dual graphics cards should consider a full-size ATX alternative.

Sustained Delivery

A 19 phase power supply design feeds the CPU socket to maintain stable voltage during extended workloads. Four 4-pin fan headers allow active cooling management across the board while the Realtek ALC897 audio codec and RTL8125BG 2.5G Ethernet controller handle persistent I/O without adding thermal load to the VRM area.

Highlights

  • Supports Ryzen 9000, 8000 and 7000 processors on AM5 socket
  • Four DDR5 slots accept up to 192 GB at 7000 MT/s overclocked
  • Three M.2 slots include one PCIe 5.0 x4 and two PCIe 4.0 x4
  • 5 Gbps LAN plus WiFi-6E interface for fast networking
  • USB 3.2 Type-C at 10 Gbps and HDMI for quick peripheral hook-up

Specifications

BrandJGINYUE
SeriesAMD
ModelB650E Snow Dream
Part NumberB650E Snow Dream
CPU Socket TypeAM5
CPU TypeRyzen 9000/ 8000/ 7000 Series
ChipsetAMD B650E
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 Up to 7000+MT/s (OC)
Maximum Memory Supported192GB
Channel SupportedFour Channel
Memory Performance ProfileAMD EXPO
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
Serial ATA (SATA)2xSATA3.0
M.23 x M.2
Audio ChipsetRealtek ALC897
LAN ChipsetRTL8125BG 2.5G Ethernet chip
COM1
HDMI1 x HDMI
DisplayPort1 x DisplayPort
USB 3.13xUSB3.2
USB 1.1/2.04 x USB 2.0
USB Type-C1 x USB Type-C
Audio Ports2 Ports
Onboard USB1 x USB 3.0
Other Connectors1 x USB2.0
Form FactorMicro ATX
LED Lighting4 x ARGB 5V 3Pin
Dimensions (W x L)24.5 x 24.5 cm
Power Pin24 Pin
Windows 11Supported

Questions about this item

Which DDR5 memory kit speeds and capacity does the B650E Snow Dream support out of the box?

The board runs four DDR5 UDIMM slots up to 7000 MT/s via AMD EXPO and accepts a maximum of 192 GB total capacity.

Can I keep my existing PCIe 4.0 graphics card and M.2 drives when moving to this motherboard?

Yes — the board provides one PCIe 5.0 x16 slot and one PCIe 4.0 x16 slot running at x4 speed, plus three M.2 sockets (one PCIe 5.0 x4 and two PCIe 4.0 x4).

How do I confirm the motherboard posts correctly after assembling the system?

Watch the on-board diagnostic light and press the CMOS button if needed; a steady light sequence indicates a successful POST.
