Micro-ATX board in dark finish with two DDR5 slots and two M.2 sockets

JGINYUE

JGINYUE B650M PRO AMD motherboard AM5 DDR5 6000MHz Ryzen 7000 8000 9000 M.2 NVME 4.0 PCI

SKU CH-VNYP-D262W

Micro-ATX AM5 board with two DDR5 slots up to 6000 MHz, dual M.2 NVMe 4.0, 2.5 Gbps LAN and 9-phase power

  • CPU Socket TypeAM5
  • CPU TypeRyzen 9000 Series
  • ChipsetAMD B650M Pro
  • Number of Memory Slots2x288pin (DDR5)
  • Memory StandardDDR5 6000
  • Maximum Memory Supported64GB
  • Supports Ryzen 7000, 8000 and 9000 series processors on AM5 socket
  • Dual-channel DDR5 memory up to 64 GB with EXPO profiles up to 6000 MHz
  • Two M.2 slots using NVME 4.0 protocol for fast storage
  • 5 Gbps wired networking plus Realtek ALC897 audio
  • Micro-ATX board with PCI Express x16 and x4 expansion slots

Socket AM5 platform

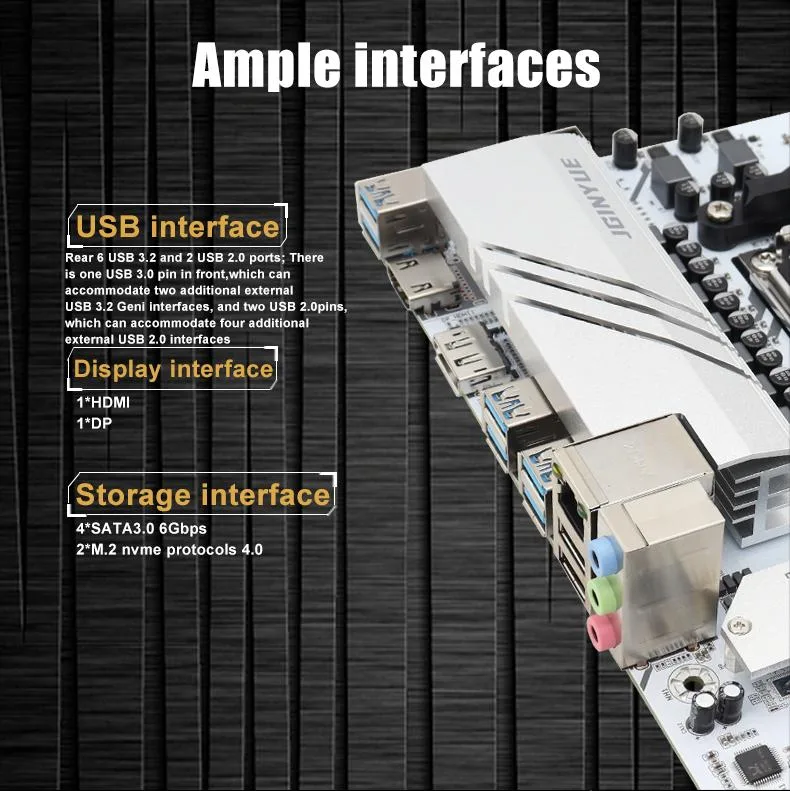

The JGINYUE B650M PRO motherboard accepts AMD Ryzen 7000, 8000 and 9000 series processors in the AM5 socket. It provides two 288-pin DDR5 slots running dual-channel up to 6000 MHz with a maximum capacity of 64 GB. The board includes one PCI Express x16 slot, one PCI Express x4 slot, four SATA 6Gb/s ports and two M.2 NVME 4.0 interfaces for storage expansion.

Nine-phase power delivery

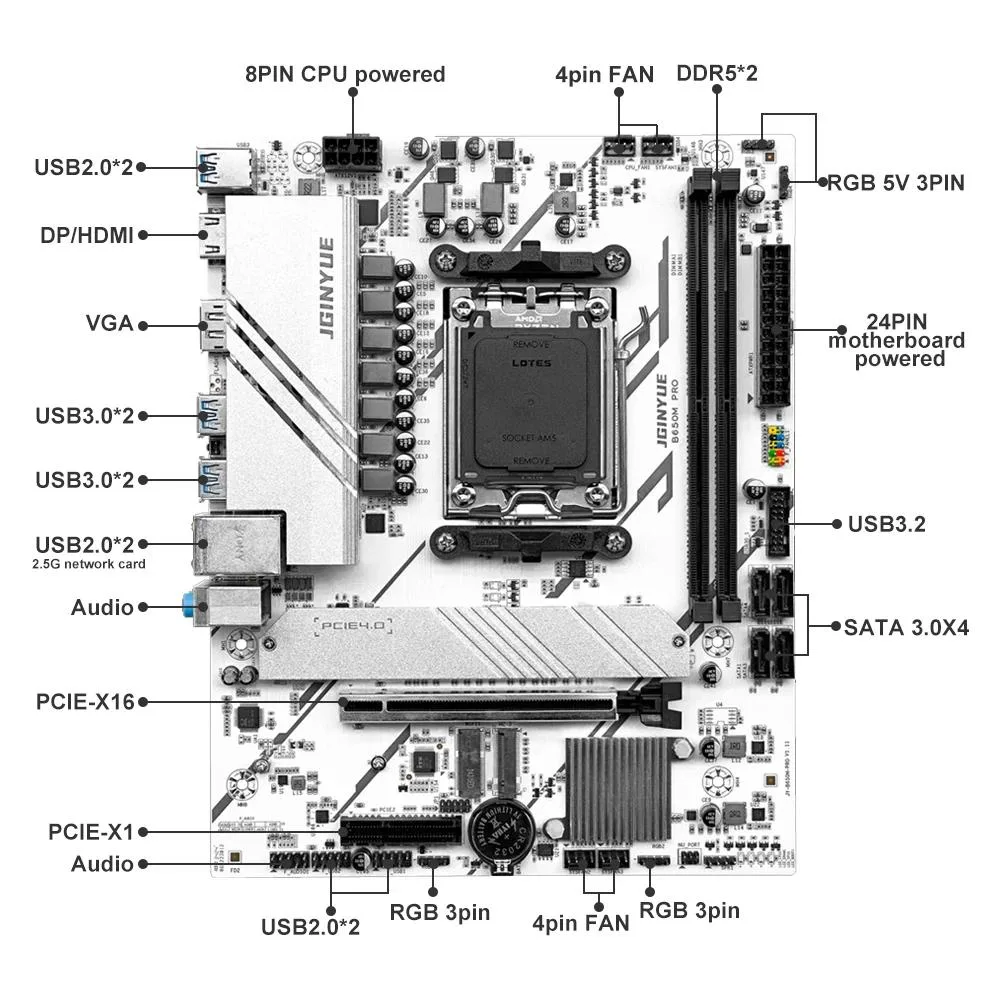

A nine-phase VRM design feeds the CPU through an 8-pin connector while the mainboard draws power from a 24-pin connector. Four 4-pin fan headers and four 5 V 3-pin RGB headers allow flexible cooling and lighting control. The Realtek ALC897 audio codec and Realtek 8111H 2.5 Gbps LAN controller handle sound and wired networking without active components on the board itself.

Sustained-load behaviour

Under continuous workloads the nine-phase power circuit maintains stable voltage to the processor without relying on large heatsinks or high-speed fans. Four diagnostic LEDs and a one-click BIOS clear button give immediate feedback if thermal limits are reached. The micro-ATX form factor fits compact cases while still delivering full PCIe x16 bandwidth for graphics cards during extended render or compute sessions.

Highlights

  • Supports Ryzen 7000, 8000 and 9000 series processors on AM5 socket
  • Dual-channel DDR5 memory up to 64 GB with EXPO profiles up to 6000 MHz
  • Two M.2 slots using NVME 4.0 protocol for fast storage
  • 5 Gbps wired networking plus Realtek ALC897 audio
  • Micro-ATX board with PCI Express x16 and x4 expansion slots

Specifications

BrandJGINYUE
SeriesPRO
ModelAMD
Part NumberB650M
CPU Socket TypeAM5
CPU TypeRyzen 9000 Series
ChipsetAMD B650M Pro
Number of Memory Slots2x288pin (DDR5)
Memory StandardDDR5 6000
Maximum Memory Supported64GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO
PCI Express x161 x PCI Express x16
PCI Express x41 x PCI Express x4
Serial ATA (SATA)4 x SATA 6Gb/s
M.22 x M.2
Audio ChipsetRealtek ALC897
Max LAN Speed2.5Gbps
HDMI1 x HDMI
DisplayPort1 x DisplayPort
USB 3.06 x USB 3.0
USB 1.1/2.02 x USB 2.0
Onboard USB6 x USB 3.0 + 2 x USB 2.0
Form FactorMicro ATX
LED LightingRGB
Power Pin24 Pin
Windows 11Supported

Questions about this item

How do I install the CPU on the AM5 socket and what step is often missed?

Lift the retention lever, align the triangle on the Ryzen processor with the socket marker, lower the chip without pressure, close the lever, then secure the cooler — the step often missed is removing the plastic protective cover from the socket before placing the CPU.

What maintenance or replacement will the board need later?

The Realtek 8111H 2.5Gbps LAN and ALC897 audio are soldered on, so no user-serviceable parts exist; only the CMOS battery behind the PCIe area may need replacing years later when BIOS settings stop retaining.

What limit appears first under sustained heavy load?

The 9-phase power delivery feeding the AM5 CPU socket will hit its thermal ceiling before the dual-channel DDR5 6000 memory or the PCIe 4.0 M.2 slots become the bottleneck.
