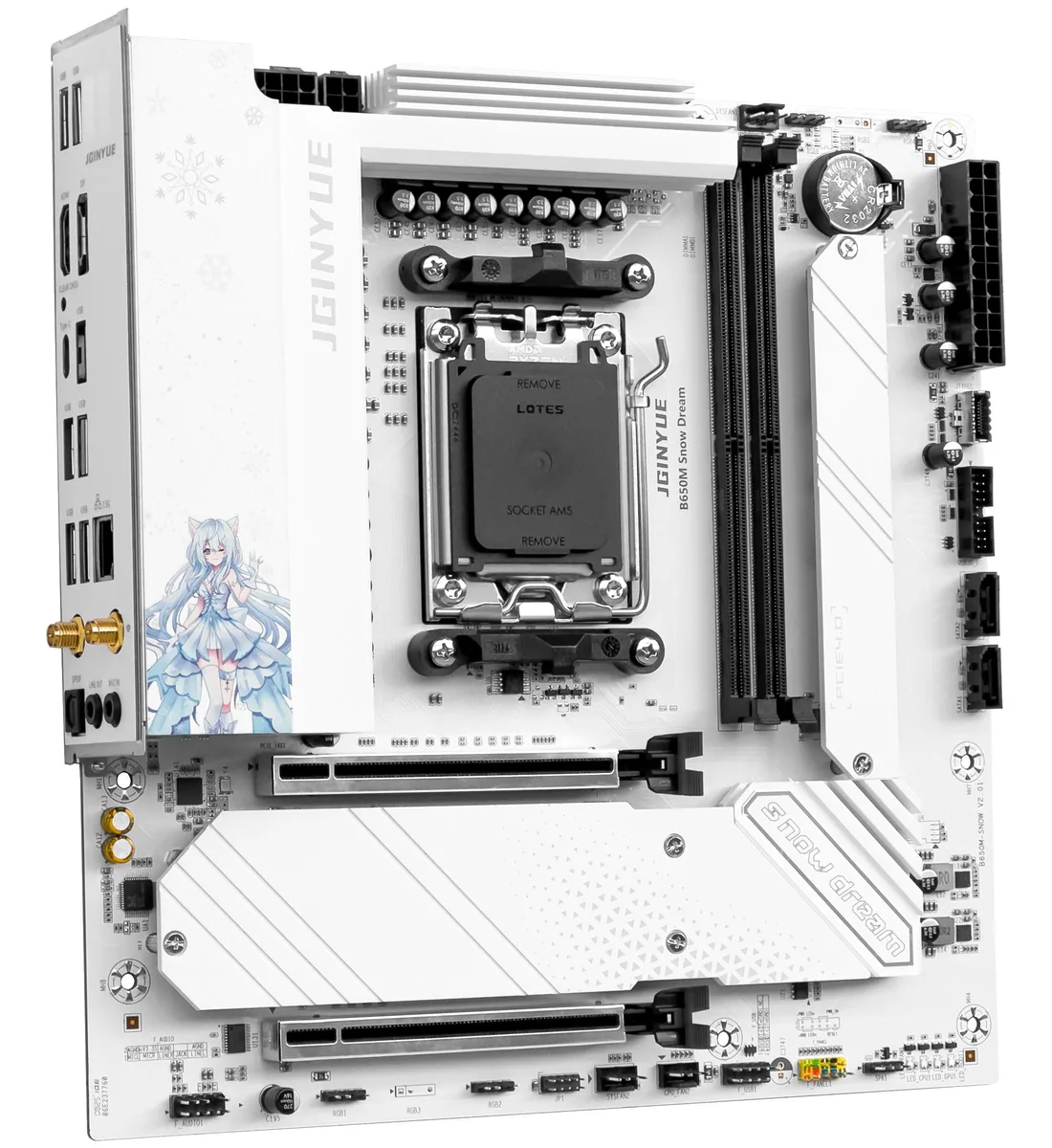

White Micro-ATX motherboard with silver heatsinks and white PCB

JGINYUE

JGINYUE B650M Snow Dream AMD motherboard

SKU CH-JJFG-7HTSJ

Micro-ATX AM5 board with 19-phase power, dual-channel DDR5 up to 96 GB, three PCIe 4.0 M.2 slots, 2.5 GbE LAN and ARGB headers

  • CPU Socket TypeAM5
  • CPU TypeRyzen 9000/ 8000/ 7000 Series
  • ChipsetAMD B650M
  • Number of Memory Slots2x288pin (DDR5)
  • Memory StandardDDR5 9000
  • Maximum Memory Supported96GB
  • Supports AMD Ryzen 7000, 8000 and 9000 series processors on AM5 socket
  • Dual-channel DDR5 memory up to 96 GB with speeds to 7000 MHz overclocked
  • Three M.2 slots plus two SATA 3.0 ports all running at PCIe 4.0 x4
  • 19-phase power delivery and four ARGB 5 V headers with independent MCU control
  • 5 GbE LAN, Realtek ALC897 audio and HDMI, DisplayPort plus Type-C video outputs

Socket AM5 B650M for Ryzen 7000 8000 9000

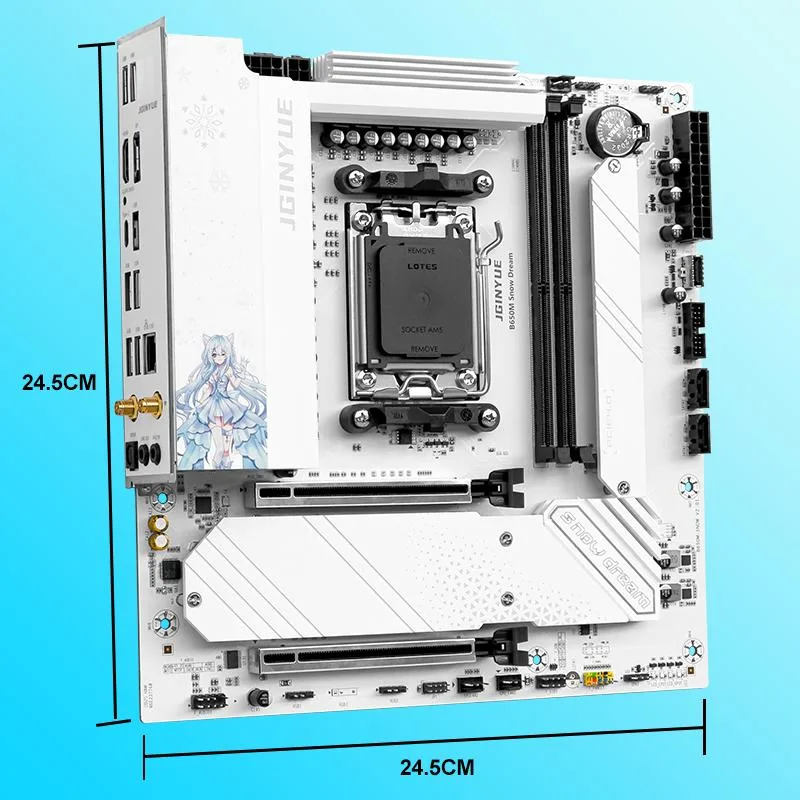

The JGINYUE B650M Snow Dream is a micro ATX motherboard built around the AMD B650 chipset and AM5 socket. It accepts Ryzen 7000 8000 and 9000 series processors and provides two 288 pin DDR5 slots with dual channel support. The board measures 24.5 by 24.5 cm and fits standard M ATX cases.

Dual channel DDR5 up to 96 GB at 7000 OC

Memory capacity peaks at 96 GB across the two slots running at 4800 to 7000 MHz with EXPO profiles. This ceiling decides whether the board suits a build that needs large memory without populating four slots. The 19 phase power delivery supports the CPU while the memory controller handles the overclocked frequencies.

2.5G LAN and three PCIe 4.0 M.2 under sustained load

The RTL8125BG controller provides a 2.5G Ethernet link that maintains throughput during long transfers. Three M.2 slots wired for PCIe 4.0 x4 keep storage bandwidth steady and the 19 phase VRM regulates voltage without throttling during extended workloads. Realtek ALC897 audio and four ARGB headers complete the I/O.

Highlights

  • Supports AMD Ryzen 7000, 8000 and 9000 series processors on AM5 socket
  • Dual-channel DDR5 memory up to 96 GB with speeds to 7000 MHz overclocked
  • Three M.2 slots plus two SATA 3.0 ports all running at PCIe 4.0 x4
  • 19-phase power delivery and four ARGB 5 V headers with independent MCU control
  • 5 GbE LAN, Realtek ALC897 audio and HDMI, DisplayPort plus Type-C video outputs

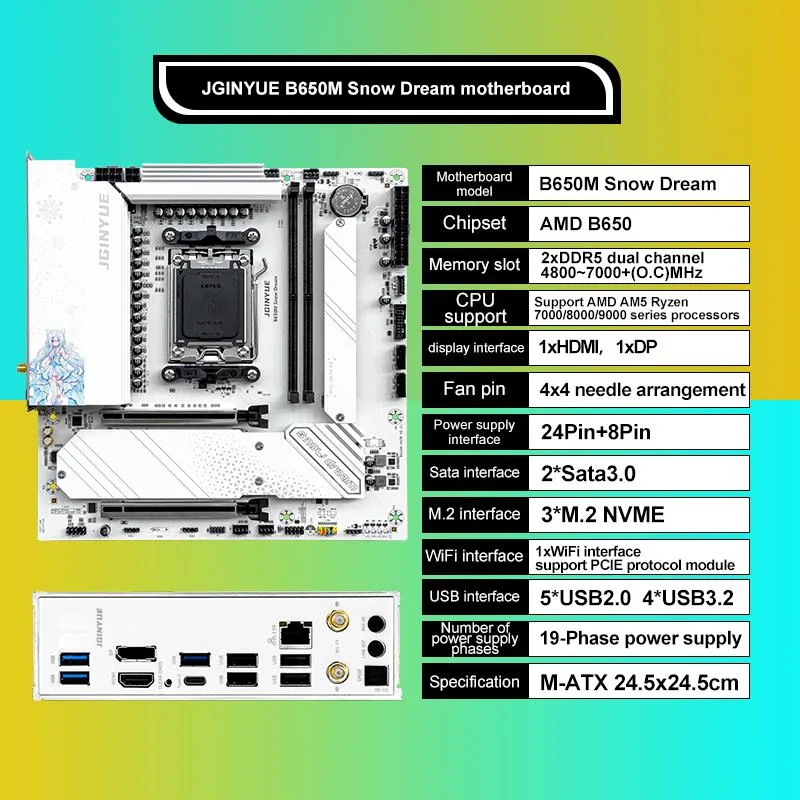

Specifications

BrandJGINYUE
SeriesAMD
ModelB650M Snow Dream
Part NumberB650M Snow Dream
CPU Socket TypeAM5
CPU TypeRyzen 9000/ 8000/ 7000 Series
ChipsetAMD B650M
Number of Memory Slots2x288pin (DDR5)
Memory StandardDDR5 9000
Maximum Memory Supported96GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO
PCI Express 4.0 x162 x PCI Express 4.0 x16
Serial ATA (SATA)2 x SATA 6Gb/s
M.23 x M.2 (Support PCIe 4.0 x4)
Audio ChipsetRealtek ALC897
LAN ChipsetRTL8125BG 2.5G Ethernet chip
Back I/O Ports1 x COM (Serial Port)
COM1
HDMI1 x HDMI
DisplayPort1 x DisplayPort
USB 3.03 x USB 3.0
USB 1.1/2.04 x USB 2.0
Audio Ports2 Ports
Onboard USB1 x USB 3.0 + 1 x USB 2.0
Form FactorMicro ATX
LED Lighting4 x ARGB 5V3 pin
Dimensions (W x L)24.5 x 24.5 cm
Power Pin24 Pin
Windows 11Supported

Questions about this item

What does the 9000+ MHz memory rating mean once the board is built?

It indicates the highest DDR5 overclock speed the board can reach with supported modules; actual speed depends on the CPU memory controller and the EXPO profile used.

What does the PCIe 4.0 x16 slot cap in practice?

The primary slot runs at PCIe 4.0 x16 bandwidth, while the second x16-sized slot operates at x4 speed, limiting add-in cards to four lanes.

What does the board physically need to fit in a case?

It uses a 24.5 x 24.5 cm Micro-ATX form factor and requires a case with matching standoffs, an AM5 cooler mount and a 19-phase VRM area clearance.
