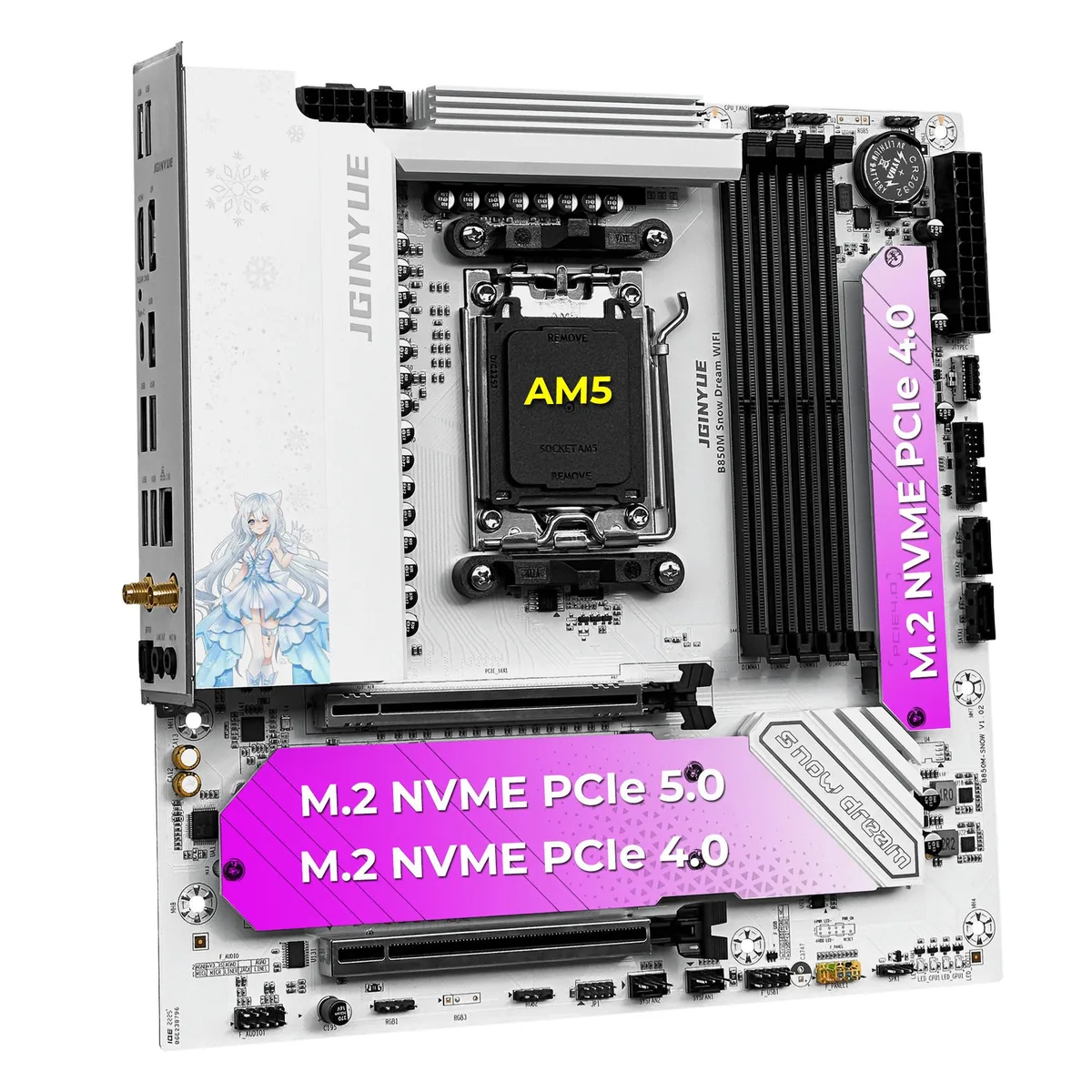

White rectangular M-ATX motherboard with silver heatsinks, four DDR5 slots and rear I/O shield

JGINYUE

JGINYUE FF4D516G6000HC38ADC01 B850M Snow Dream WiFi AMD motherboard

SKU CH-8WF3-5TJFN MPN FF4D516G6000HC38ADC01

Micro-ATX board for AM5 Ryzen 9000 series with four DDR5 slots up to 192GB, one PCIe 5.0 x16 slot, three M.2 sockets, 2.5GbE and WiFi6E

  • CPU Socket TypeAM5
  • CPU TypeRyzen 9000 Series
  • ChipsetAMD B850
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 7000
  • Maximum Memory Supported192GB
  • Socket AM5 runs Ryzen 9000 series CPUs for modern desktop performance
  • Four DDR5 slots take up to 192 GB of memory with EXPO overclocking
  • One PCIe 5.0 x4 M.2 slot plus two PCIe 4.0 x4 M.2 slots for fast storage
  • 5 Gbps LAN and onboard WiFi6E give high-speed wired and wireless networking
  • 19-phase power delivery with 4 ARGB headers and 10 Gbps Type-C for clean builds

Socket AM5 for Ryzen 9000 series

This motherboard targets builders who want a compact M-ATX board that accepts AMD Ryzen 9000, 8000 and 7000 desktop processors. The B850 chipset unlocks PCIe 5.0 lanes for graphics and storage while keeping the footprint at 24.5x24.5cm. Onboard WiFi6E and a 2.5Gbps Ethernet port handle networking without extra cards.

192GB DDR5 across four slots

Four 288-pin DDR5 slots support up to 192GB of memory with AMD EXPO profiles up to 7000 MT/s. Dual-channel topology keeps latency low when all slots are populated, and the board validates 4800-7000 MT/s overclocked speeds on Ryzen 8000 and 9000 series CPUs. This capacity ceiling is the decisive spec for workstations that need large datasets in RAM.

19-phase power delivery under load

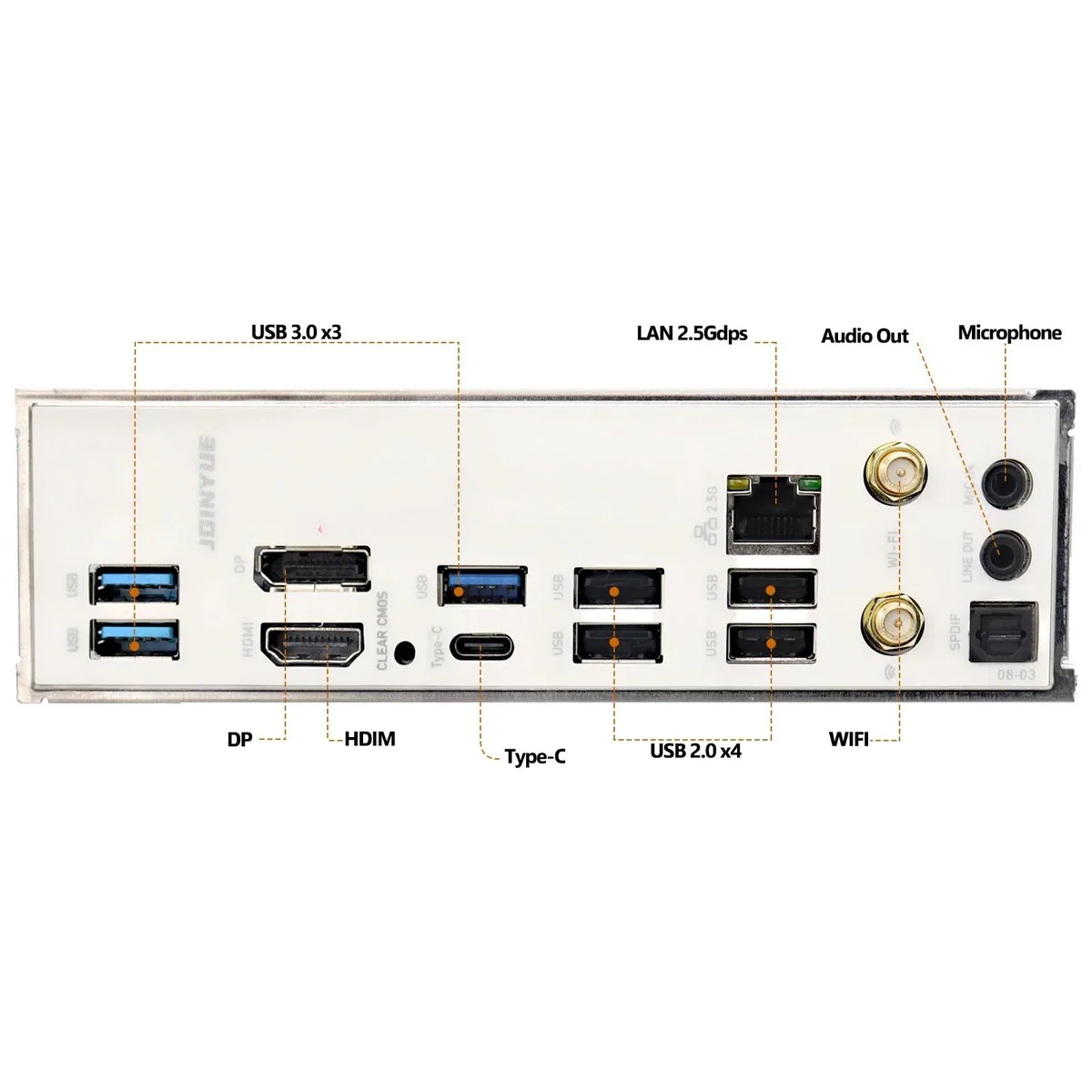

The 19-phase VRM feeds the CPU socket through extended workloads without throttling, backed by four 4-pin fan headers for active cooling. Three M.2 slots — one PCIe 5.0 x4 and two PCIe 4.0 x4 — sustain high throughput for sequential reads and writes. Rear I/O includes HDMI, DisplayPort, a 10Gbps Type-C link via the Type-E header and legacy PS/2 and COM ports.

Highlights

  • Socket AM5 runs Ryzen 9000 series CPUs for modern desktop performance
  • Four DDR5 slots take up to 192 GB of memory with EXPO overclocking
  • One PCIe 5.0 x4 M.2 slot plus two PCIe 4.0 x4 M.2 slots for fast storage
  • 5 Gbps LAN and onboard WiFi6E give high-speed wired and wireless networking
  • 19-phase power delivery with 4 ARGB headers and 10 Gbps Type-C for clean builds

Specifications

BrandJGINYUE
ModelAMD
CPU Socket TypeAM5
CPU TypeRyzen 9000 Series
ChipsetAMD B850
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 7000
Maximum Memory Supported192GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO
PCI Express 4.0 x163 x PCI Express 4.0 x16
Serial ATA (SATA)2 x SATA 6Gb/s
M.23 x M.2
Max LAN Speed2.5Gbps
Wireless LANRTL8125BG 2.5G Ethernet chip
Back I/O Ports1 x Audio Jack
PS/22
COM1
HDMI1 x HDMI
DisplayPort1 x DisplayPort
USB 3.03 x USB 3.2
USB 1.1/2.04 x USB 2.0
USB Type-C1 x USB 3.1
Onboard USB3 x USB 3.2 + 4 x USB 2.0
Form FactorMicro ATX
LED LightingRGB
Power Pin24 Pin
Windows 11Supported

Questions about this item

What does the 7000 MT/s DDR5 rating mean once the board is in a real machine?

The board supports DDR5 up to 7000 MT/s via AMD EXPO profiles, so compatible kits can run at that speed without manual tuning when installed in the four 288-pin slots.

How does the PCIe 5.0 M.2 slot limit drive performance in practice?

One M.2 slot is wired for PCIe 5.0 x4, giving a theoretical ceiling of roughly 16 GB/s, while the other two M.2 slots operate at PCIe 4.0 x4 speeds.

What does the board need to fit and mount in a case?

It uses the M-ATX form factor measuring 24.5 cm by 24.5 cm, so any case that accepts micro-ATX motherboards will accommodate it.
