Black steel micro-ATX cube with mesh panels and a carry handle

JONSBO

JONSBO C6 MAX Black Micro ATX PC Case

SKU CH-EV3Z-7KVZW

Micro ATX mesh chassis with tool-free panels, adjustable handle, and room for 300-335mm GPU, 170mm CPU cooler, and 220mm PSU

  • TypeMicro ATX / Mini-ITX
  • ColorBlack
  • Case MaterialSteel
  • Motherboard CompatibilityMicro ATX / ITX
  • Side Panelwith Side Window
  • Dust FiltersBottom

Options C6 MAX BLACK

  • All-mesh panels maximise airflow
  • Tool-free panels simplify hardware swaps
  • 170 mm cooler clearance fits tall towers
  • 335 mm GPU limit supports full-size cards
  • Adjustable hook handle eases transport

Compact Micro ATX Chassis

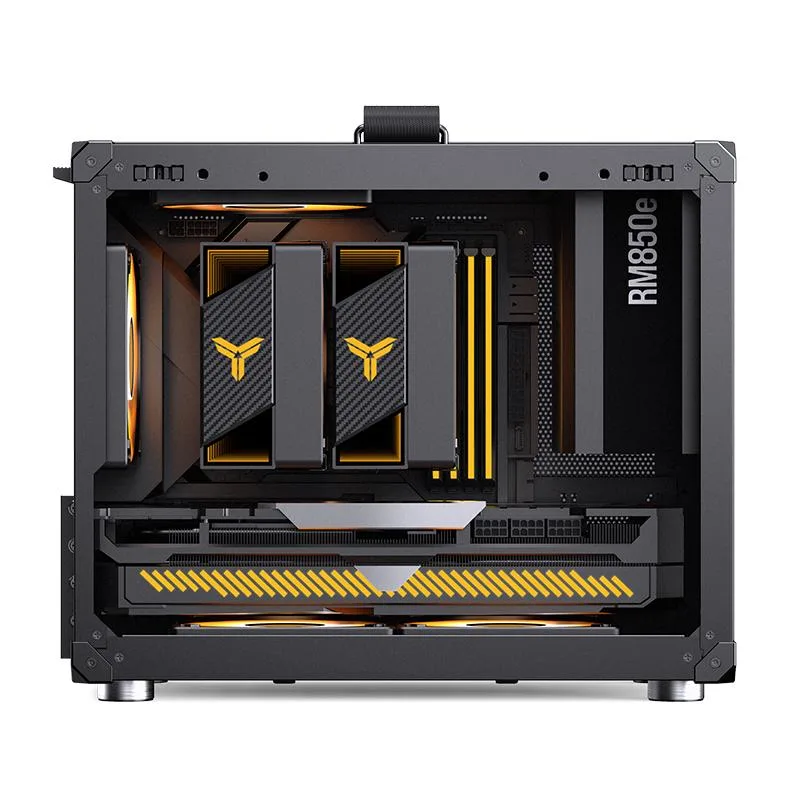

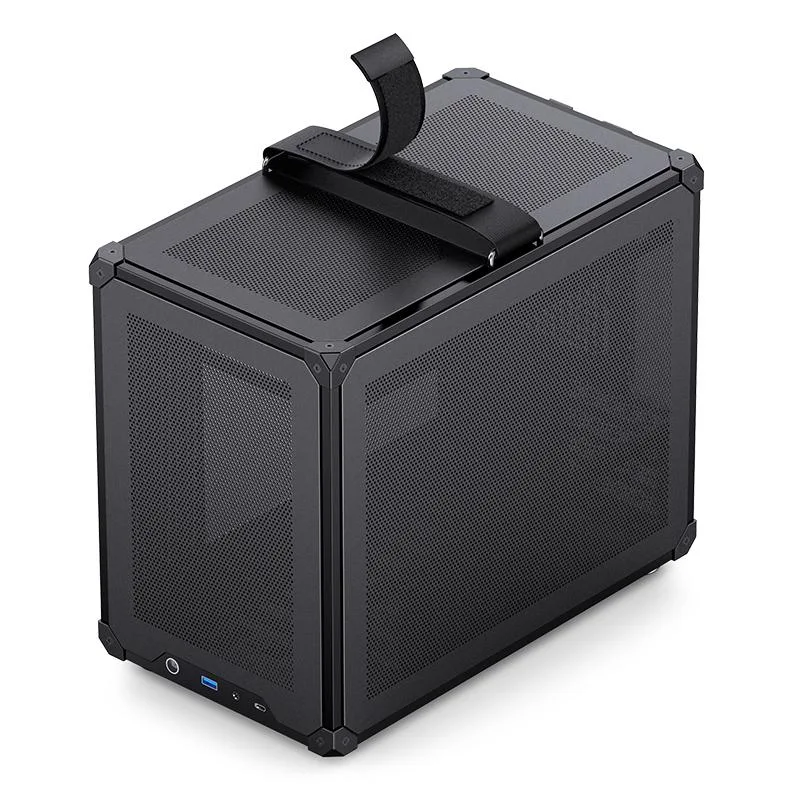

The JONSBO C6 MAX Black is a steel Micro ATX and Mini-ITX case measuring 295x202x349mm and weighing 3.45kg. It suits builders who want a small desktop enclosure with mesh panels on every side. Buyers needing E-ATX motherboard support or more than one 3.5-inch drive bay should look elsewhere.

Sustained Thermal Behaviour

All four sides use mesh construction to promote steady airflow through front upper and lower fan positions. The layout accepts up to four 120mm fans or a mix of 120mm and 140mm units plus a rear 120mm fan. A bottom dust filter helps maintain intake cleanliness during long sessions. Graphics cards up to 335mm and CPU coolers up to 170mm fit without restricting flow.

Installation Experience

Front upper cover and side panels open without tools using a rear buckle and internal push mechanism. An adjustable Magic Hook handle aids carrying and positioning. The case fits ATX power supplies from 140mm to 220mm in length. Cable routing space behind the motherboard tray is tight so plan wire lengths before final assembly.

Highlights

  • All-mesh panels maximise airflow
  • Tool-free panels simplify hardware swaps
  • 170 mm cooler clearance fits tall towers
  • 335 mm GPU limit supports full-size cards
  • Adjustable hook handle eases transport

Specifications

BrandJonsbo
TypeMicro ATX / Mini-ITX
ColorBlack
Case MaterialSteel
Motherboard CompatibilityMicro ATX / ITX
Side Panelwith Side Window
Dust FiltersBottom
Internal 3.5" Drive Bays1
Internal 2.5" Drive Bays2
Fan OptionsTop plate 120mm*1 or 140mm*1 (Optional) Rear 120mm*1
Bottom 120mm*2 or HDD*1
Max GPU Length300-335mm
Max CPU Cooler Height170 mm
Max PSU Length140-220mm
Dimensions295x202x349mm
Weight3.45kg
FeaturesSimple Compact Desktop Micro ATX mesh chassis:
Heat free-All sides in mesh, Front/Upper/Lower 4 fan positions
Easy and quick disassembly design-
Front , Upper Cover/Side Panel Tool-free Open
Press the rear window buckle, open the top cover, and push open the front/side panel from the inside
Come with an adjustable Magic Hook Handle

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How hot or loud does the JONSBO C6 MAX get when all four fan positions are filled and the system runs all day?

The chassis uses mesh on every side and supports up to four 120 mm or 140 mm fans, so airflow scales with the fans you install; noise and temperature will depend on the specific fans and components you choose.

What extra parts do I need to own before this case becomes a working PC?

You must supply a Micro-ATX or Mini-ITX motherboard, an ATX power supply up to 220 mm long, a CPU cooler no taller than 170 mm, a graphics card up to 335 mm, plus storage drives and any fans you want in the four mounting points.

Will my existing 3.5-inch hard drive and 2.5-inch SSD fit alongside a full-length graphics card in this case?

Yes, the layout provides one 3.5-inch bay and two 2.5-inch bays while still clearing graphics cards up to 335 mm long.
