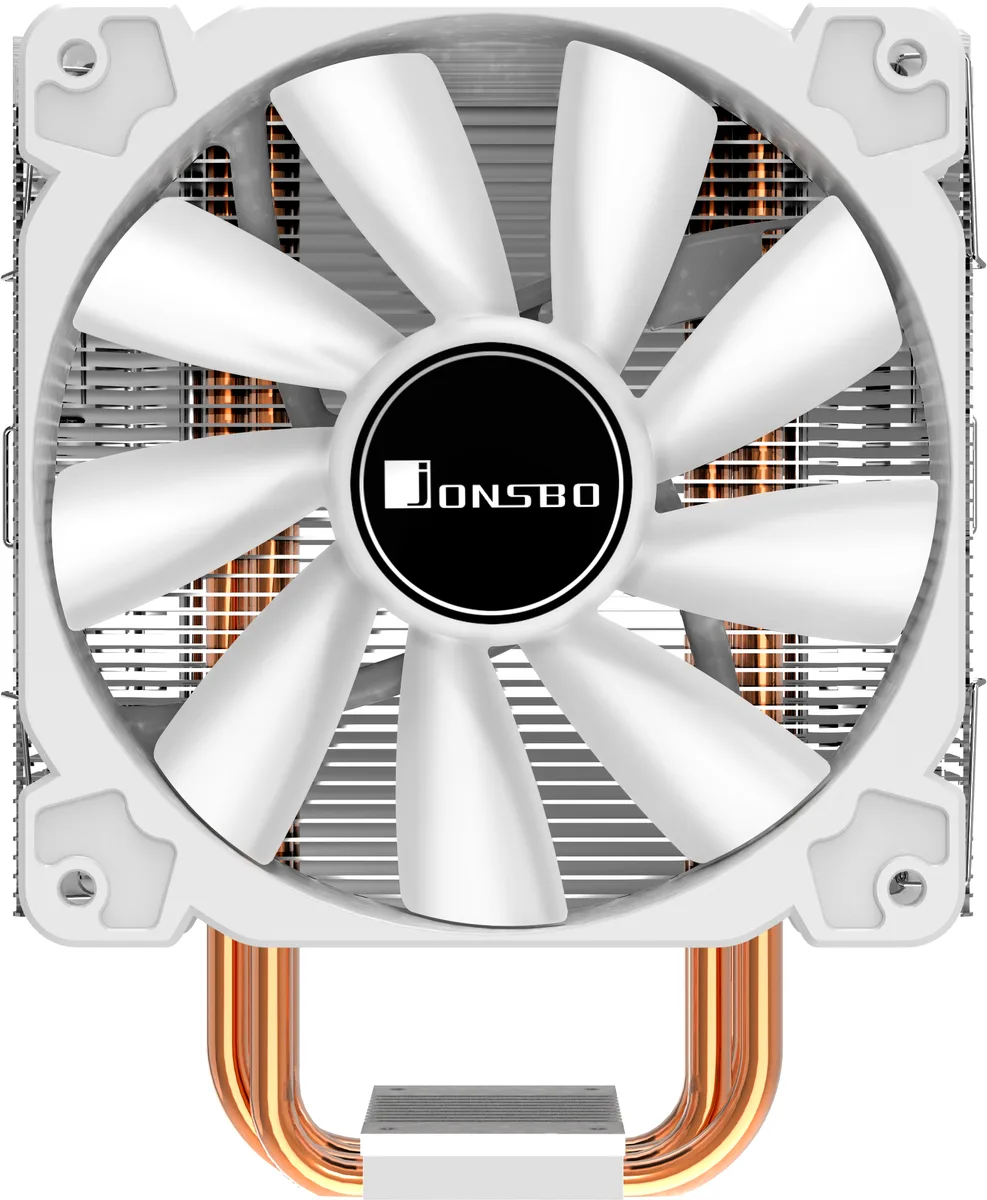

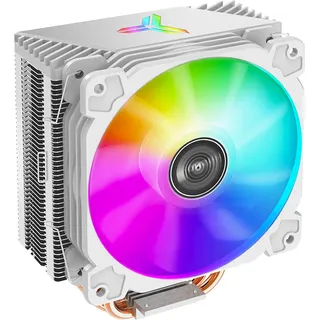

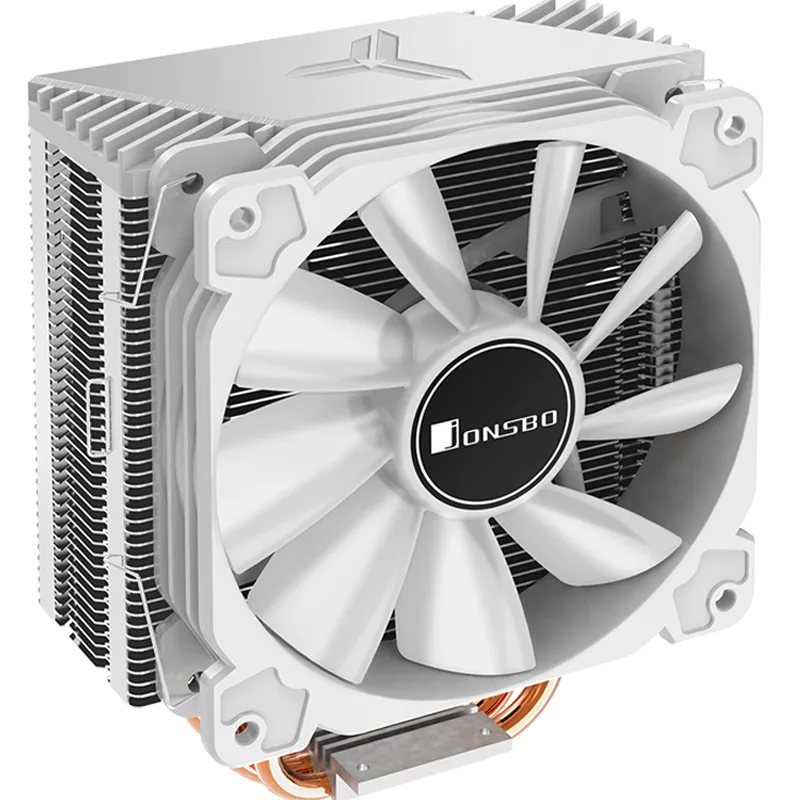

White single-tower CPU cooler, 158 mm tall, four copper heat pipes, 120 mm RGB PWM fan with detachable blades

JONSBO

JONSBO CR1000 WHITE CPU Cooler 158mm 4 Heat Pipes 120mm PWM RGB Fan White

SKU CH-3QKP-VRXYK

White single-tower air cooler with four 6 mm copper heat pipes, 44 aluminium fins, a 120 mm PWM fan running 700–1800 RPM and automatic RGB lighting, 158 mm tall

  • ColorWhite
  • TypeFan & Heatsinks
  • Fan Size120mm
  • Bearing TypeHydraulic
  • RPM700-1800RPM(PWM)(±10%)
  • Air Flow26.1-66.81CFM
  • Four 6 mm heat pipes and 44 fins balance cooling performance and cost
  • 158 mm height fits most tower cases without blocking memory slots
  • Top-mounted luminous RGB nameplate adds coordinated lighting
  • 120 mm PWM fan runs 700–1800 RPM for 26.1–66.81 CFM at 20.55–37.2 dB(A)
  • Detachable blades simplify cleaning and long-term maintenance

JONSBO CR1000 White Air Cooler

The JONSBO CR1000 White is a single-tower CPU air cooler built for mainstream desktop systems. It uses four 6 mm copper heat pipes in an insert-fin array to move heat away from the processor. The 158 mm height fits most mid-tower cases while clearing all four memory slots on standard ATX boards. It targets builders who want reliable thermal performance with a clean white aesthetic.

Build Quality and Daily Use

The heatsink stacks 44 aluminium fins measuring 130 x 75 x 0.4 mm, bonded to the heat pipes through a buckle-fin process that keeps ventilation channels open. A 120 mm hydraulic-bearing PWM fan mounts vertically on the tower and draws power from a standard 4-pin motherboard header. Fan blades detach without tools for quick dust removal. The top cover adds a fixed rainbow RGB glow that cycles automatically without software control.

Thermals Noise and Power

Fan speed ranges from 700 to 1800 RPM, delivering airflow between 26.1 and 66.81 CFM. Acoustic output spans 20.55 to 37.2 dBA at maximum speed. The 4-pin PWM connection lets the motherboard scale fan speed to CPU temperature, keeping noise low during light loads. Total assembly mass is 610 g, placing minimal stress on the motherboard mounting points.

Highlights

  • Four 6 mm heat pipes and 44 fins balance cooling performance and cost
  • 158 mm height fits most tower cases without blocking memory slots
  • Top-mounted luminous RGB nameplate adds coordinated lighting
  • 120 mm PWM fan runs 700–1800 RPM for 26.1–66.81 CFM at 20.55–37.2 dB(A)
  • Detachable blades simplify cleaning and long-term maintenance

Specifications

BrandJonsbo
SeriesAir Cooler Series
ModelCR1000 WHITE
ColorWhite
TypeFan & Heatsinks
Fan Size120mm
Bearing TypeHydraulic
RPM700-1800RPM(PWM)(±10%)
Air Flow26.1-66.81CFM
Noise Level20.55-37.2Dba(MAX) Reference
Power Connector4Pin ,The fan only needs to be connected to the fan 4Pin interface of the motherboard,The fan automatically changes the color light effect(Note: manual or external control is no need)
LEDRGB
Heatsink MaterialAluminum & Copper
Fan Mounting Types to HeatsinkVertical
Max CPU Cooler Height158 mm
Fan Dimensions120 x 120 x 25 mm (4.72 x 4.72 x 0.98 in)
Heatsink Dimensions128 x 76 x 158 mm (5.04 x 2.99 x 6.22 in)
Weight610g (1.34 lb)
FeaturesCPU Cooler /Air Cooling Single Tower Radiator/Lighting is rainbow only by random, not addressable

Questions about this item

What socket interfaces does the CR1000 WHITE support and which CPU generations does that cover in practice?

It mounts on Intel LGA1200, 1150, 1151, 1155, 1156 and AMD AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+.

What case clearance and motherboard layout does the 158 mm height and 76 mm width require?

The cooler stands 158 mm tall and 76 mm wide, fitting most tower cases while leaving all four ATX memory slots accessible.

How is the fan attached to the heatsink and what step do builders often miss?

The 120 mm PWM fan clips vertically onto the tower; the detachable blades must be removed before mounting the fan to the heatsink for easier installation.
