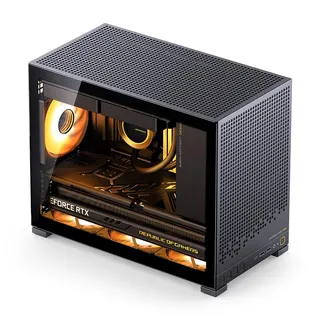

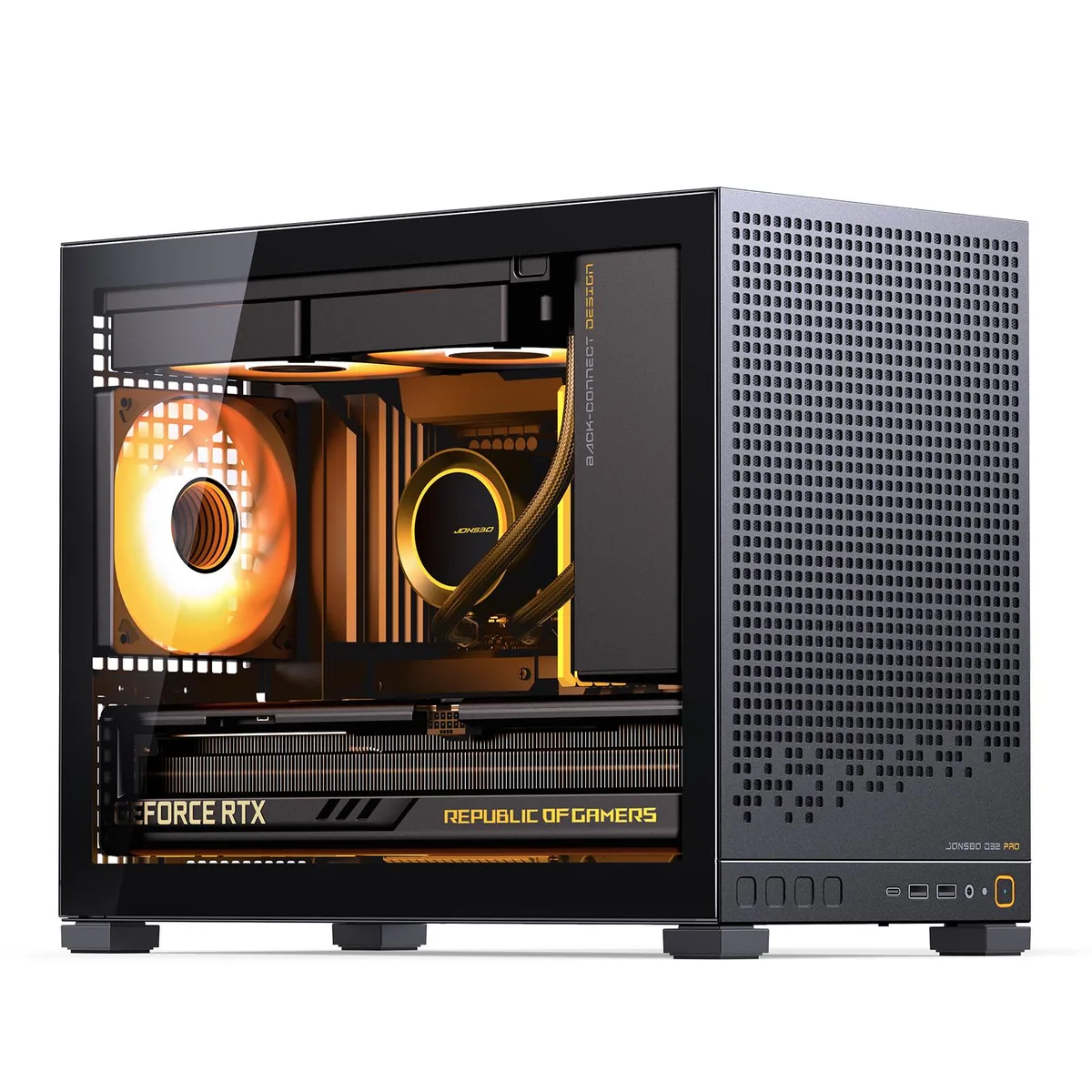

Black Micro-ATX tower with tempered glass side panel, compact rectangular form

JONSBO

JONSBO D32 PRO Micro-ATX PC Case Black

SKU CH-BD3E-MHFSH MPN D32

Micro-ATX case with A/B motherboard mode, 365 mm GPU clearance, top 240 mm radiator support and tempered glass side panel

  • TypeMicro ATX
  • ColorBlack
  • Case MaterialSPCC / Tempered Glass
  • Power Supply MountedATX/SFX/SFX-L
  • Motherboard CompatibilityMINI-ITX / MICRO-ATX STANDARD/ MICRO-ATX BACK-CONNECT
  • Side Panelwith Side Window

Model D32 PRO BLACK

  • A/B motherboard mode fits both standard and back-connect Micro-ATX boards
  • 365 mm GPU clearance and 240 mm top radiator support for high-end builds
  • 163 mm AMD / 164 mm Intel CPU cooler height handles large air towers
  • ATX, SFX and SFX-L PSU support up to 160 mm depth
  • 24 L compact chassis with tempered glass side panel and dust filters

Compact Micro-ATX chassis for versatile builds

The JONSBO D32 PRO is a 24-litre Micro-ATX case finished in black with a tempered-glass side panel. It accepts Mini-ITX and Micro-ATX boards in both standard and back-connect layouts. Builders who need E-ATX boards or more than two 3.5-inch drives should look elsewhere.

SPCC steel frame with tempered glass and flexible

The steel structure weighs 4.5 kg and measures 395 mm by 207 mm by 314 mm including feet. A detachable PCI-E bracket clears the way for graphics cards up to 365 mm long. Top mounts take two 120 mm or two 140 mm fans plus a 240 mm radiator, while the rear fits one 120 mm fan and the bottom optionally holds three 120 mm or two 140 mm units.

Dual drive cages and front USB 3.2 for tidy cable

Two internal 3.5-inch bays and three 2.5-inch bays handle mixed storage needs without crowding the motherboard tray. A bundled GPU holder prevents heavy cards from sagging over time. Front-panel USB 3.2 keeps high-speed peripherals within easy reach while the PSU bay accepts ATX, SFX or SFX-L units up to 160 mm deep.

Highlights

  • A/B motherboard mode fits both standard and back-connect Micro-ATX boards
  • 365 mm GPU clearance and 240 mm top radiator support for high-end builds
  • 163 mm AMD / 164 mm Intel CPU cooler height handles large air towers
  • ATX, SFX and SFX-L PSU support up to 160 mm depth
  • 24 L compact chassis with tempered glass side panel and dust filters

Specifications

BrandJonsbo
SeriesD32 Series
ModelD32 PRO BLACK
Part NumberD32 PRO BLACK
TypeMicro ATX
ColorBlack
Case MaterialSPCC / Tempered Glass
Power Supply MountedATX/SFX/SFX-L
Motherboard CompatibilityMINI-ITX / MICRO-ATX STANDARD/ MICRO-ATX BACK-CONNECT
Side Panelwith Side Window
Dust FiltersYes
Internal 3.5" Drive Bays2
Internal 2.5" Drive Bays3
Fan OptionsTop:2*120mm/2*140mm(optional);Rear:1*120mm; Bottom(Optional):3*120mm/2*140mm(Optional)
Radiator OptionsTop AIO 240mm
Max GPU Length365 mm
Max CPU Cooler Height164mm (Intel CPU) 163mm (AMD CPU)
Max PSU Length160 mm
Dimensions395mm * 207mm* 314mm (Foot Pad included)
Weight4.5kg

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the front-panel USB 3.2 port run at its rated speed or drop back?

The case provides a USB 3.2 front-panel header; actual throughput depends on the motherboard header and cable quality, not the case itself.

What motherboard form factors and mounting modes fit the D32 PRO?

The chassis accepts Mini-ITX, standard Micro-ATX and Micro-ATX back-connect boards using the A/B mode mounting layout.

How is the GPU bracket installed and what step is often missed?

A supplied GPU holder screws into the detachable PCI-E bracket; the common miss is forgetting to secure the holder after inserting the card.
