JONSBO
JONSBO T8 PLUS SILVER Mini-ITX PC case

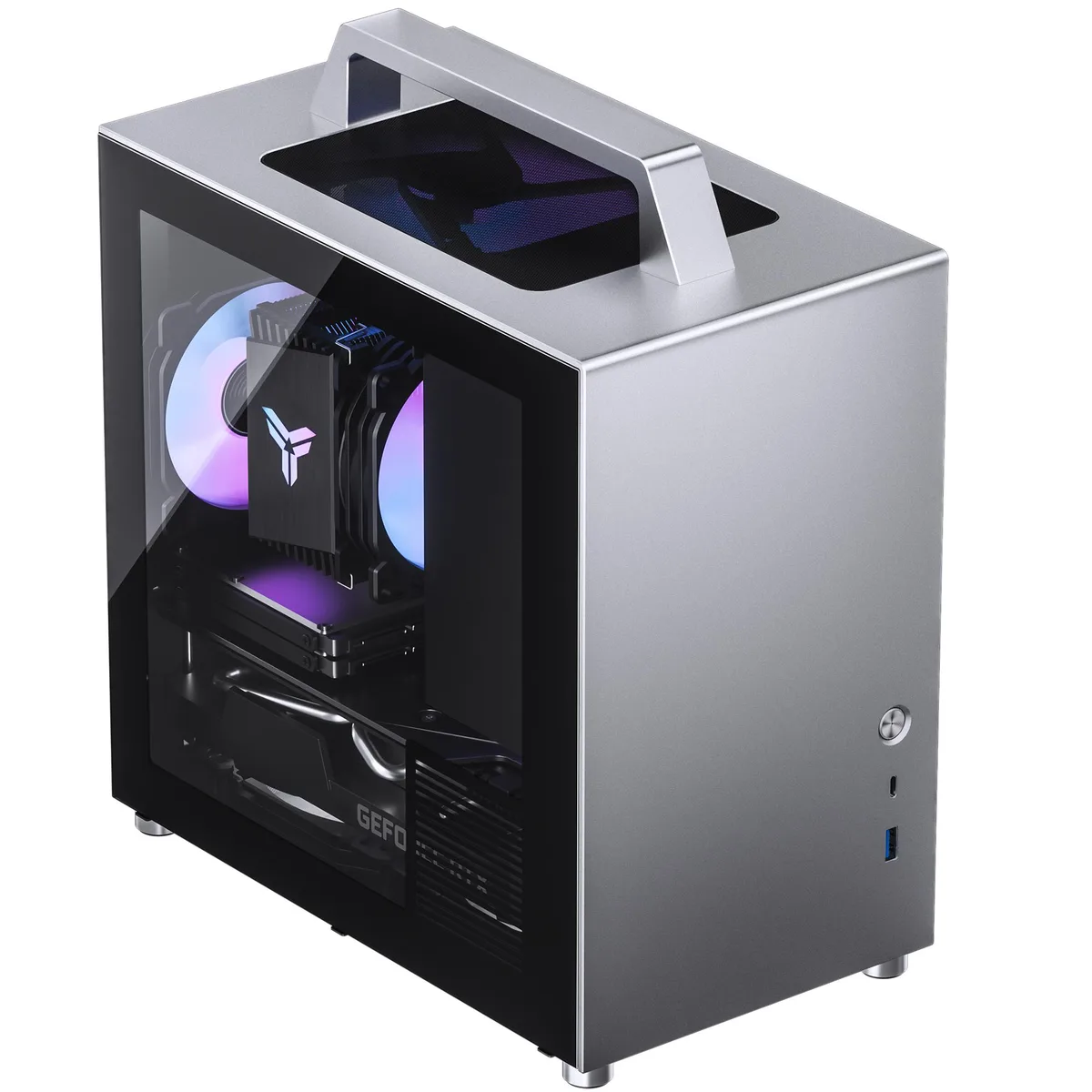

A silver Mini-ITX tower with an aluminium-magnesium shell, tempered-glass sides, a built-in 140 mm top fan, room for a 270 mm GPU and 135 mm CPU cooler, plus four 2.5-inch drive bays
- TypeMini-ITX
- ColorSilver
- Case MaterialShell 2.5mm Aluminum-magnesium alloy/ Metal 0.8mm thickness
- With Power SupplyNo
- Power Supply MountedFront Top : ATX=140mm
- Motherboard CompatibilityMini ITX
- Aluminium-magnesium shell and steel frame keep the 2.5 mm panel rigid
- Double-sided 3 mm tempered glass shows components while damping resonance
- Top-mounted 140 mm fan with auto RGB exhausts heat directly
- Mini-ITX board fits with GPU up to 270 mm and CPU cooler up to 135 mm
- Four 2.5″ drive bays and front USB 3.0 plus Type-C simplify storage and I/O
Compact ITX case for portable builds

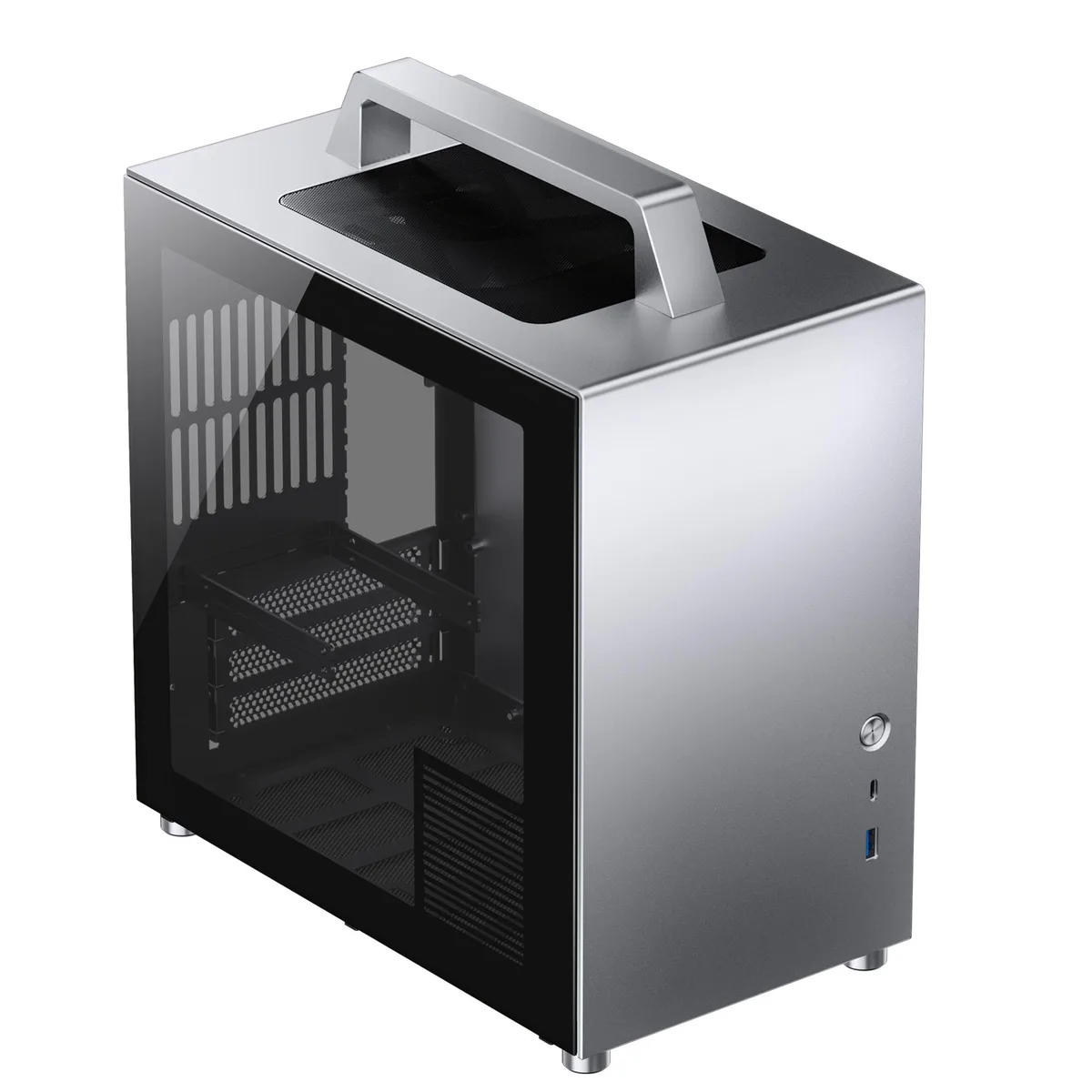

The Jonsbo T8 Plus Silver is a Mini-ITX chassis built from a 2.5mm aluminium-magnesium shell, 0.8mm SGCC steel frame and 3mm tempered glass side panels. It targets builders who want a small, rigid enclosure they can move between locations without flexing the structure.
Aluminium handle and magnetic filter aid daily use

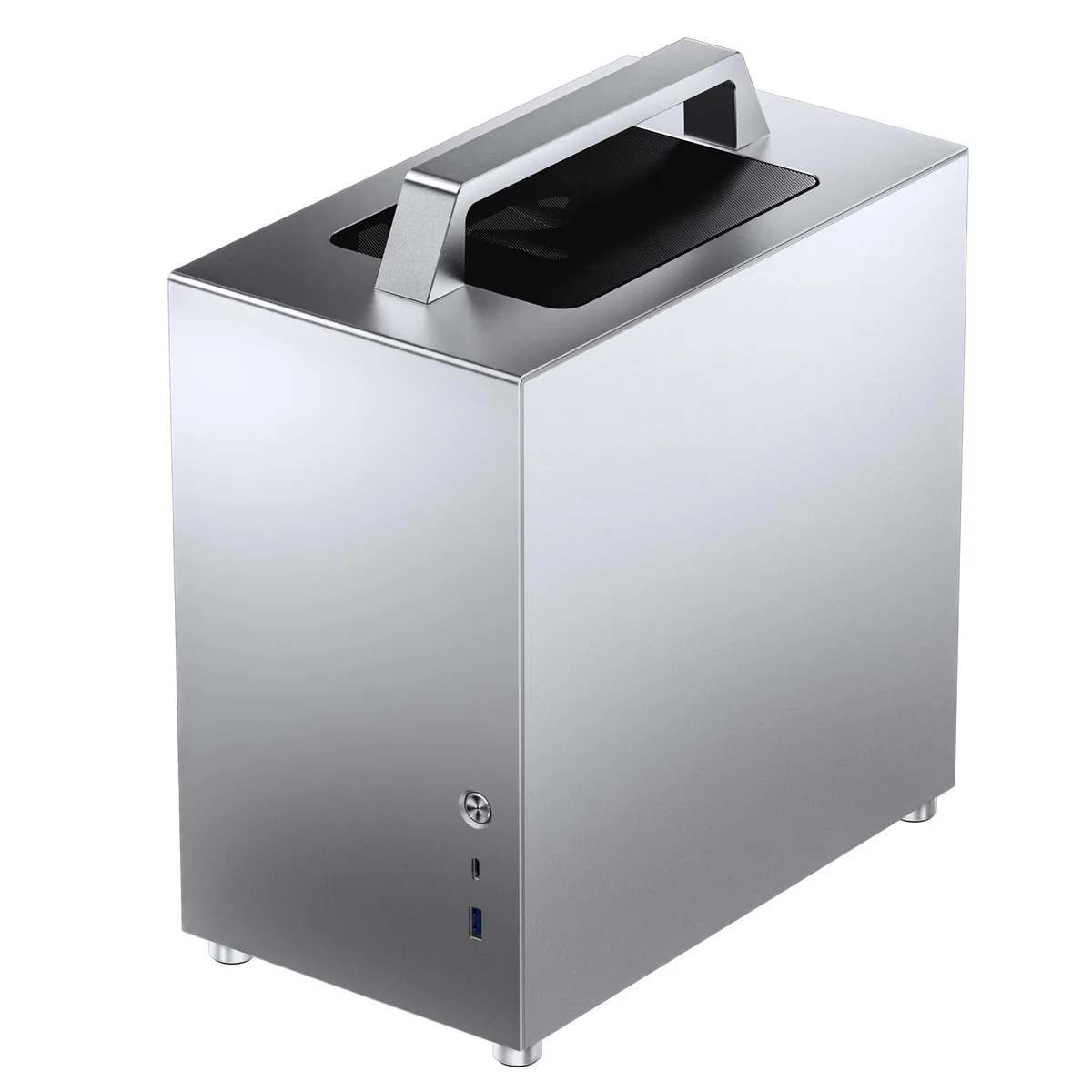

A solid aluminium handle is integrated into the one-piece L-shaped panel, giving a firm grip when transporting the case. The rear magnetic dust filter snaps off for cleaning without tools, while the top-mounted 140mm fan with auto-colour lighting exhausts heat directly upward through the glass sides.
GPU clearance limited to 270mm
The internal layout accepts graphics cards up to 270mm long, CPU coolers up to 135mm tall and ATX power supplies up to 140mm deep. Builders who need longer cards, taller coolers or deeper power supplies cannot use this chassis.
Highlights
- Aluminium-magnesium shell and steel frame keep the 2.5 mm panel rigid
- Double-sided 3 mm tempered glass shows components while damping resonance
- Top-mounted 140 mm fan with auto RGB exhausts heat directly
- Mini-ITX board fits with GPU up to 270 mm and CPU cooler up to 135 mm
- Four 2.5″ drive bays and front USB 3.0 plus Type-C simplify storage and I/O
Specifications
| Brand | Jonsbo |
|---|---|
| Series | Mini ITX |
| Model | T8 PLUS SILVER |
| Type | Mini-ITX |
| Color | Silver |
| Case Material | Shell 2.5mm Aluminum-magnesium alloy/ Metal 0.8mm thickness SGCC steel /side panel 3mm Tempered glass |
| With Power Supply | No |
| Power Supply Mounted | Front Top : ATX=140mm |
| Motherboard Compatibility | Mini ITX |
| Side Panel | with Side Window |
| LED | RGB |
| Dust Filters | Rear : magnetic dust filter |
| Internal 2.5" Drive Bays | 4 |
| Expansion Slots | 3 |
| Front Ports | USB3.0*1, Type C*1 |
| Fan Options | Bottom - 2 x 120mm / Rear - 1 x 92mm / Top - 1 x 140mm |
| 140mm Fans | 1 |
| Max GPU Length | 270 mm |
| Max CPU Cooler Height | 135 mm |
| Max PSU Length | 140 mm |
| Dimensions | 282x163 x 272mm /11.10x6.42x10.71inch |
| Weight | 3.2kg/7.05lb |
| Features | Cooling system support fan option : Top : 1*140mm (built-in ) Bottom :2*120mm ( Optional ) Rear : 1*92mm ( Optional ) |
Questions about this item
What USB standard does the front Type-C port use, and what speed does it cap at?
The front panel provides one USB 3.0 Type-A port and one Type-C port, both limited to the USB 3.0 5 Gbit/s bandwidth.
What clearance does the case allow for a graphics card and a CPU cooler?
The chassis fits graphics cards up to 270 mm long and CPU coolers up to 135 mm tall.
How is the top 140 mm fan mounted, and what wiring step is often missed?
The 140 mm fan is pre-installed in the top panel; connect its 3-pin or 4-pin header to the motherboard so the auto colour cycle and speed control work.
