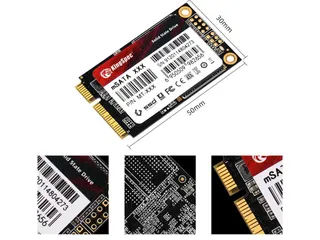

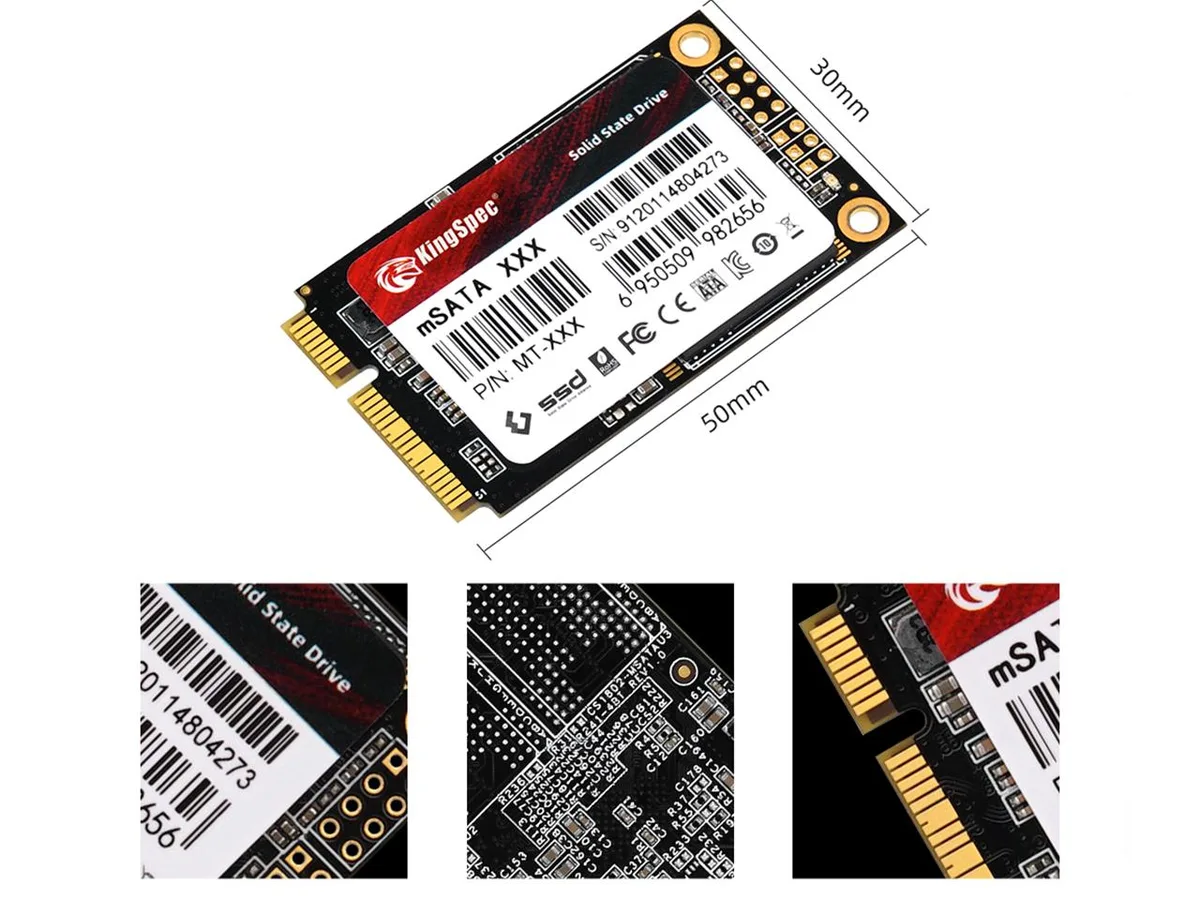

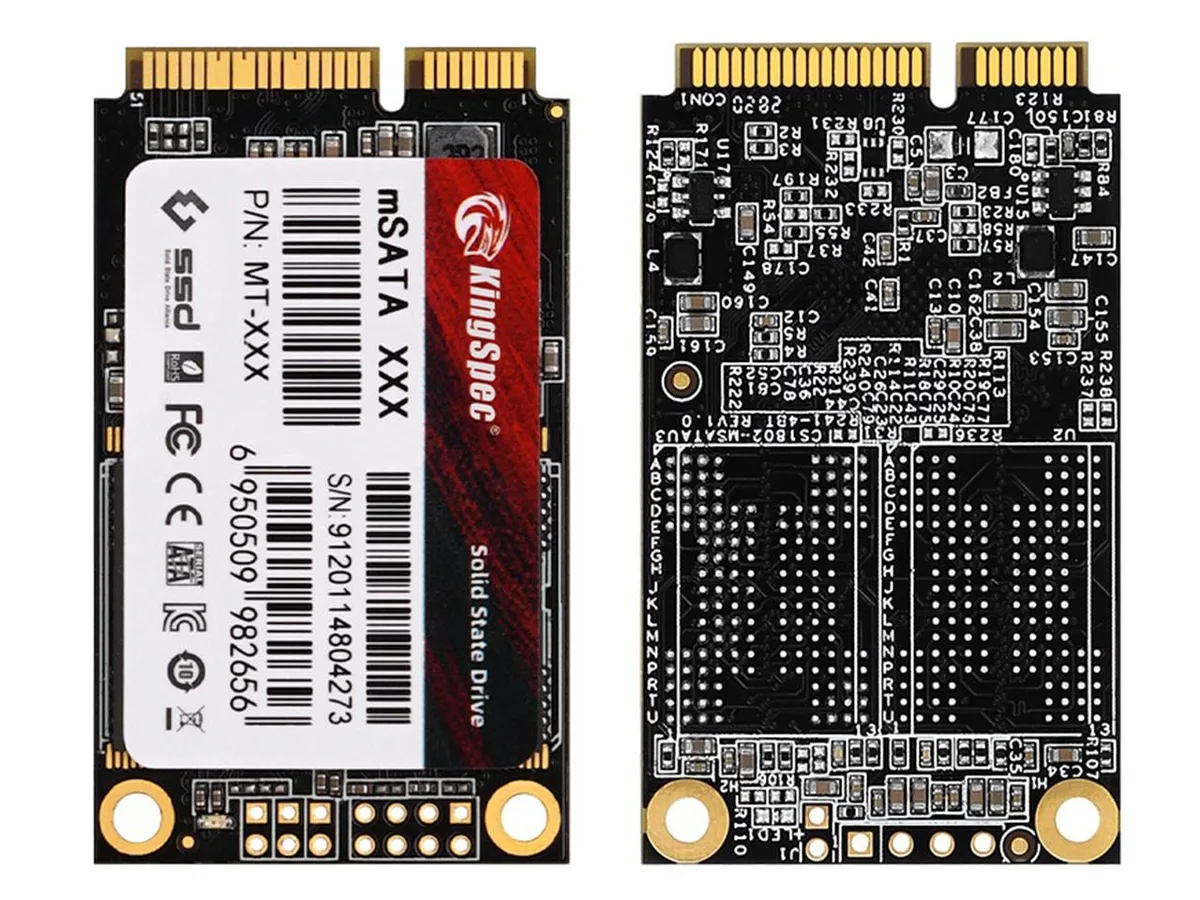

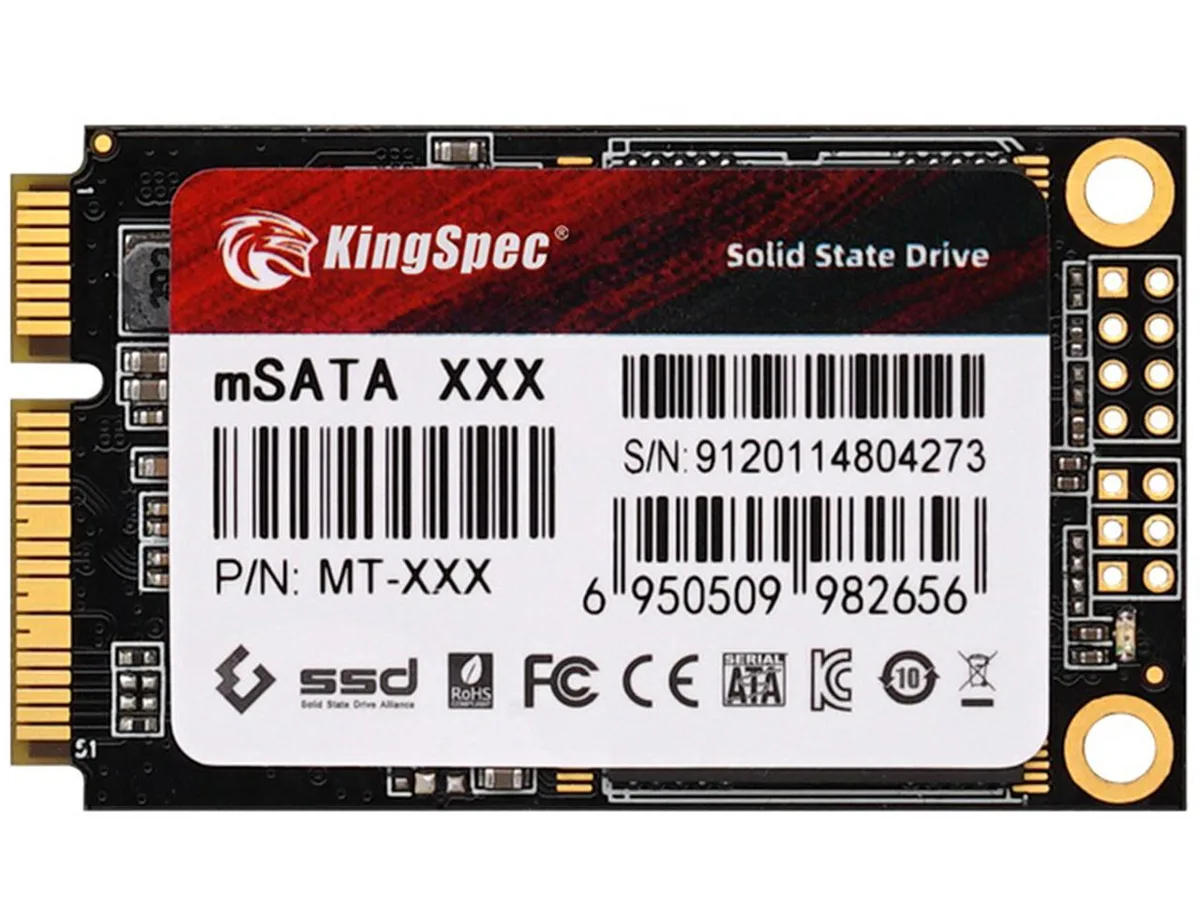

Rectangular mSATA SSD circuit board, green finish, gold edge connector, 50.95 by 30.0 by 3.50 mm

KingSpec

KingSpec MT-1TB mSATA internal SSD 1TB

SKU CH-HP11-W6SM9

A 1 TB mSATA internal SSD with 3D NAND delivering up to 570 MB/s read and 550 MB/s write speeds for fast system upgrades

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactormSATA
  • Capacity1TB
  • Memory Components3D NAND
  • InterfaceMini-SATA (mSATA)
  • Up to 570 MB/s read speed accelerates file loading
  • Up to 550 MB/s write speed speeds up backups
  • 1 TB capacity stores large media libraries
  • 1,000,000 hours MTBF indicates long-term reliability
  • mSATA form factor fits compact laptops and desktops

KingSpec MT-1TB mSATA SSD

The KingSpec MT-1TB is an internal solid-state drive built in the mSATA form factor with a 1TB capacity. It uses 3D NAND flash and a SATA interface to deliver sequential read speeds up to 570 MB/s and write speeds up to 550 MB/s for faster system responsiveness.

Suits mSATA slots in laptops and desktops

This drive fits devices equipped with an mSATA connector and works with Windows 10, Linux and platforms using Ryzen processors. Systems that only provide M.2 or 2.5-inch SATA bays cannot accept this module.

Interface is Mini-SATA (mSATA)

The module connects through a Mini-SATA interface that is also compatible with SATA 1 and SATA 2 host controllers. It operates between 0°C and 70°C and carries an MTBF rating of 1,000,000 hours.

Highlights

  • Up to 570 MB/s read speed accelerates file loading
  • Up to 550 MB/s write speed speeds up backups
  • 1 TB capacity stores large media libraries
  • 1,000,000 hours MTBF indicates long-term reliability
  • mSATA form factor fits compact laptops and desktops

Specifications

BrandKingSpec
SeriesMT Series
ModelMT-1TB
Part NumberMT-1TB
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactormSATA
Capacity1TB
Memory Components3D NAND
InterfaceMini-SATA (mSATA)
Max Sequential ReadUp to 570 MB/s
Max Sequential WriteUp to 550 MB/s
MTBF1,000,000 hours
HeatSinkwithout HeatSink
Operating Temperature0°C ~ +70°C
Storage Temperature-20°C ~ +75°C
Operating Humidity5-95%
Height50.95mm
Width30.0mm
Depth3.50mm
Weight50g

Questions about this item

Will the 570 MB/s sequential read speed hold up during long video renders?

The drive is rated for up to 570 MB/s sequential read and 550 MB/s sequential write; sustained workloads will stay within the SATA interface limits and the 0 °C to 70 °C operating range.

How loud or hot does the drive get when it runs all day?

It has no heatsink, no moving parts and operates silently; typical power draw is low and the 0 °C to 70 °C rating covers continuous use.

My laptop only has an mSATA slot — is anything else needed to install this 1 TB drive?

The drive fits a standard mSATA (Mini-SATA) slot measuring 50.95 mm × 30.0 mm × 3.50 mm and works with SATA III, SATA II or SATA I host controllers.
