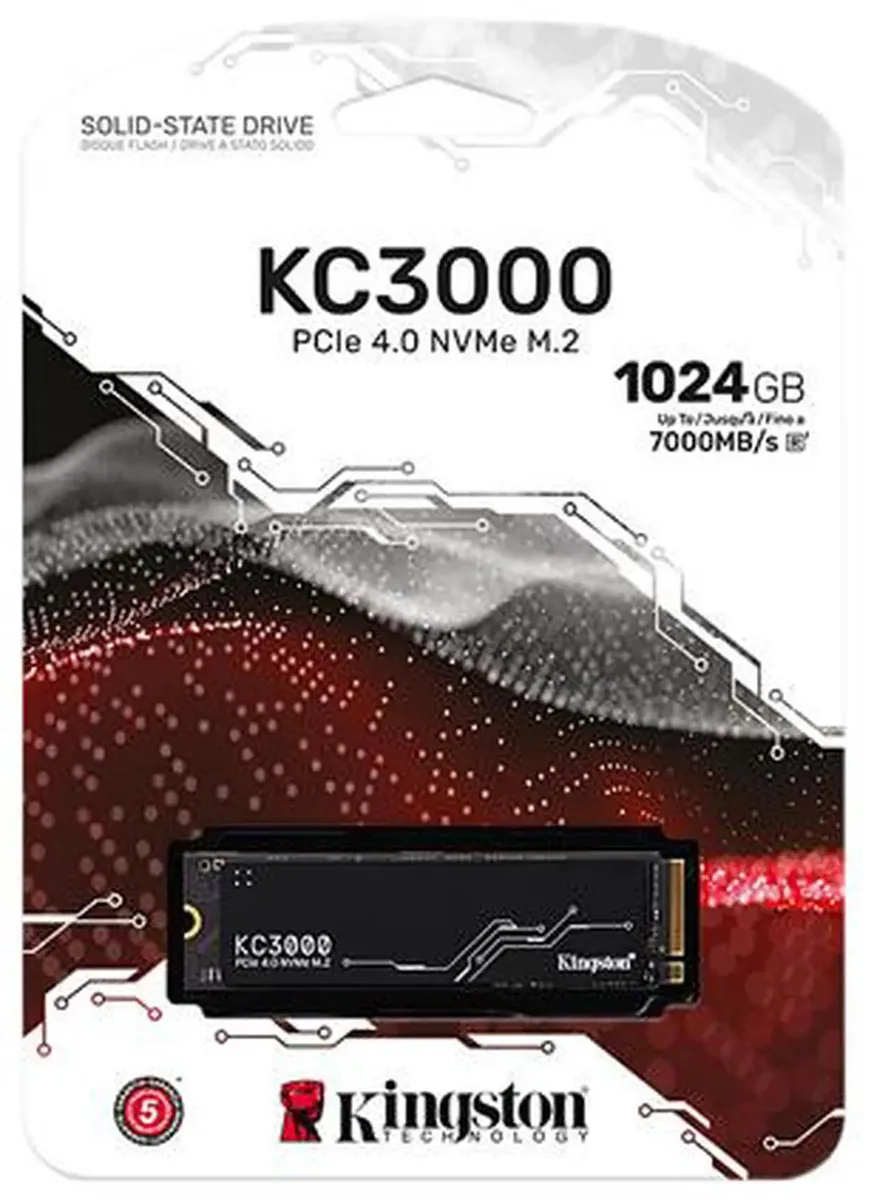

Kingston KC3000 1024GB M.2 2280 SSD with graphene aluminum heatsink

Kingston Technology Corp.

Kingston Technology Corp. KC3000 1024GB M.2 2280 PCIe 4.0 x4 NVMe internal SSD with HeatSink

SKU CH-D6RA-SG2DC

High-performance PCIe 4.0 x4 NVMe internal SSD with graphene aluminium heat spreader delivering up to 7000 MBps read and 6000 MBps write

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity1024GB
  • Memory Components3D TLC
  • InterfacePCIe 4.0 x4 NVMe
  • Fast game loads with up to 7000 MBps sequential read
  • Smooth multitasking from up to 1000000 IOPS random write
  • Long-term reliability backed by 800TB endurance rating
  • Cool operation via low-profile graphene aluminum heat spreader
  • Fits modern builds with compact M.2 2280 form factor

Kingston KC3000 1024GB NVMe SSD with HeatSink

This internal solid-state drive uses a PCIe 4.0 x4 NVMe interface and a Phison E18 controller with 3D TLC memory. It delivers sequential reads up to 7000 MBps and writes up to 6000 MBps in the compact M.2 2280 form factor. A low-profile graphene aluminum heat spreader is included.

High-performance desktop and laptop upgrade

The drive suits enthusiasts and professionals who need sustained throughput for large-file workflows, gaming loads or heavy multitasking. Its 800 TBW endurance rating and 1.8 million-hour MTBF support intensive daily writes. Buyers whose systems only support PCIe 3.0 or lack an M.2 2280 slot should select a different drive.

PCIe 4.0 x4 NVMe interface requirement

Compatibility hinges on the host having an M.2 2280 slot wired for PCIe 4.0 x4 NVMe signalling. The drive will negotiate down to PCIe 3.0 speeds if the platform only supports that generation, but peak throughput requires the full 4.0 link. Verify the motherboard or laptop specification before purchase.

Highlights

  • Fast game loads with up to 7000 MBps sequential read
  • Smooth multitasking from up to 1000000 IOPS random write
  • Long-term reliability backed by 800TB endurance rating
  • Cool operation via low-profile graphene aluminum heat spreader
  • Fits modern builds with compact M.2 2280 form factor

Specifications

BrandKingston
SeriesKC3000
ModelSKC3000S/1024G
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity1024GB
Memory Components3D TLC
InterfacePCIe 4.0 x4 NVMe
ProtocolNVMe
ControllerPhison E18
Max Sequential ReadUp to 7000 MBps
Max Sequential WriteUp to 6000 MBps
4KB Random ReadUp to 900,000 IOPS
4KB Random WriteUp to 1,000,000 IOPS
Terabytes Written (TBW)800TB
MTBF1,800,000 hours
HeatSinkwith HeatSink
FeaturesPCIe 4.0 NVMe high-performance
Upgrade with full capacities up to 4096GB
Compact M.2 2280 form factor
Low profile graphene aluminum heat spreader
Power Consumption (Idle)5 mW
Power Consumption (Active)0.33W Avg / 2.8W (MAX) Read / 6.3W (MAX) Write
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Vibration ResistanceOperating: 2.17G Peak (7-800Hz)
Non-operating: 20G Peak (20-1000Hz)
Height2.21mm
Width22.00mm
Depth80.00mm
Weight7.00g

Questions about this item

What M.2 slot length and keying does the 2280 form factor require?

The drive uses the M.2 2280 form factor, measuring 80.00 mm long and 22.00 mm wide with an M-key notch for PCIe 4.0 x4 NVMe.

Which step is often missed when installing the graphene aluminum heat spreader on this SSD?

Many builders forget to remove the protective film from the heat spreader before seating the drive, which blocks thermal transfer.

When will the 800 TBW endurance rating require drive replacement?

The 800 TBW rating covers the warranty period; replace the drive once SMART reports the media has reached that written-data threshold.
