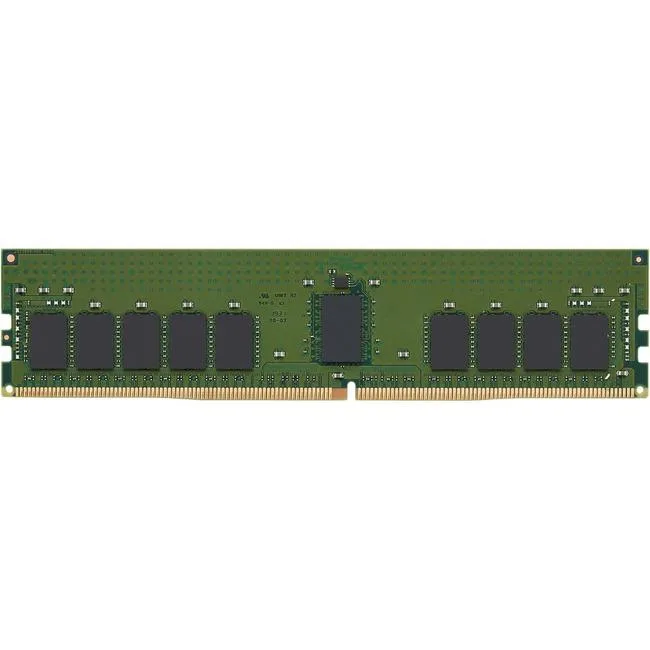

Green bare circuit board 288-pin DDR4 DIMM with black memory chips

Kingston Technology Corp.

Kingston Technology Corp. KTD-PE432D8P/16G 16GB DDR4 3200MHz CL22 ECC Registered server RAM

SKU CH-EECK-C8WMB MPN KTD-PE432D8P/16G

16 GB DDR4 registered ECC DIMM running at 3200 MHz with CL22 latency for stable server workloads

  • Capacity16GB
  • Type288-Pin DDR4 SDRAM
  • SpeedDDR4 3200 (PC4 25600)
  • CAS LatencyCL22
  • Voltage1.20V
  • ECCYes
  • 16 GB capacity runs multiple server workloads simultaneously
  • 3200 MHz DDR4 speed with CL22 latency delivers responsive data access
  • Registered ECC design detects and corrects memory errors for uptime
  • Dual-rank 2Rx8 organisation increases memory density per channel
  • 20 V operation reduces power draw in dense rack environments

Server ECC registered module

This 16 GB DDR4 module operates at 3200 MHz with CL22 latency and registered signal processing. It is built for NAS, rack and blade servers that require ECC data integrity. The dual-rank 2Rx8 organisation suits multi-channel server platforms.

Thermals and power

The module runs at the standard DDR4 voltage of 1.20 V without a heat spreader. Registered buffering reduces electrical load on the memory bus during sustained workloads. Passive cooling relies on chassis airflow typical of 1U and 2U server enclosures.

Build and connectivity

A 288-pin DIMM form factor provides direct installation into registered DIMM slots. Intel XMP 2.0 profile support allows automatic configuration where the platform permits. The absence of a heat spreader keeps the profile low for dense memory populations.

Highlights

  • 16 GB capacity runs multiple server workloads simultaneously
  • 3200 MHz DDR4 speed with CL22 latency delivers responsive data access
  • Registered ECC design detects and corrects memory errors for uptime
  • Dual-rank 2Rx8 organisation increases memory density per channel
  • 20 V operation reduces power draw in dense rack environments

Specifications

BrandKingston
ModelKTD-PE432D8P/16G
Capacity16GB
Type288-Pin DDR4 SDRAM
SpeedDDR4 3200 (PC4 25600)
CAS LatencyCL22
Voltage1.20V
ECCYes
Buffered/RegisteredRegistered
Rank2Rx8
BIOS/Performance ProfileIntel XMP 2.0
Heat SpreaderNo
Shipping weight0.09 kg
Package size226 × 160 × 5 mm

Questions about this item

How do I install this 288-pin DDR4 module and what step is commonly missed?

Align the notch on the 288-pin DIMM with the slot key, press firmly until both retention clips click, and verify the registered ECC module is recognised in BIOS — skipping the clip check is the step most often missed.

What maintenance or replacement will this 16GB registered ECC memory need later?

No routine maintenance is required; replacement is only needed if a memory test reports correctable ECC errors rising above threshold or if a DIMM fails POST, at which point the single 16GB module is swapped.

What limit appears first on this CL22 3200MHz kit under sustained load?

The CL22 latency at 3200MHz sets the timing ceiling; under continuous heavy workloads the memory controller reaches its maximum transaction rate before thermal or voltage limits become a factor.
