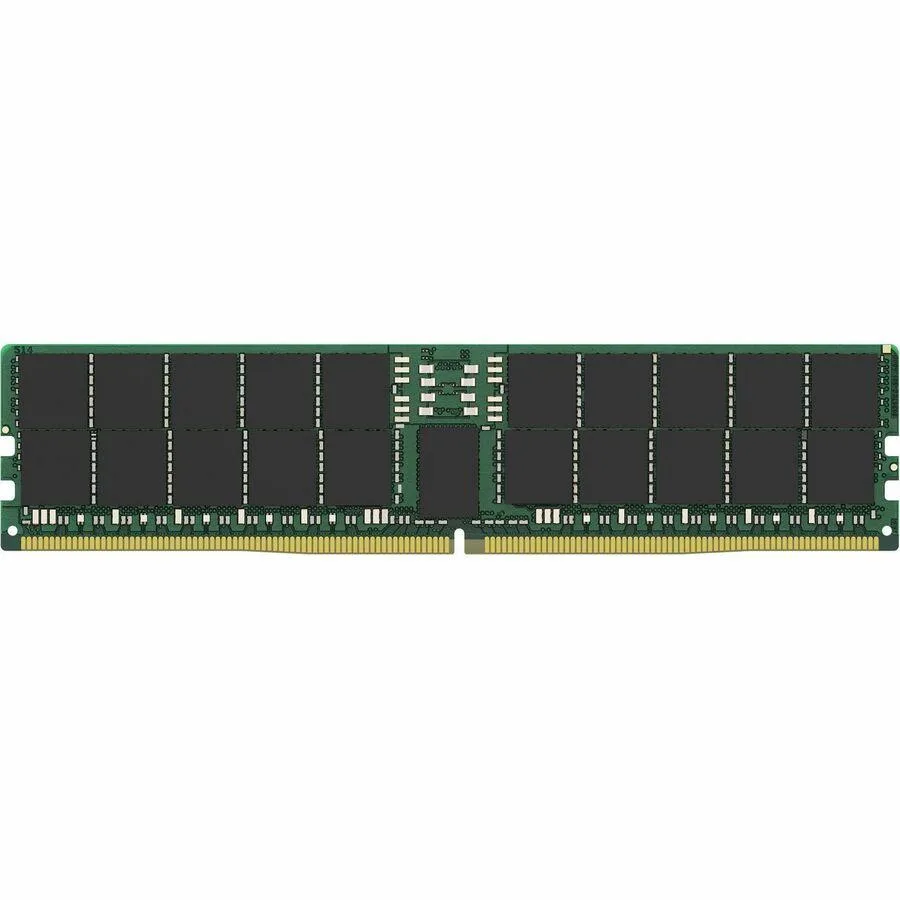

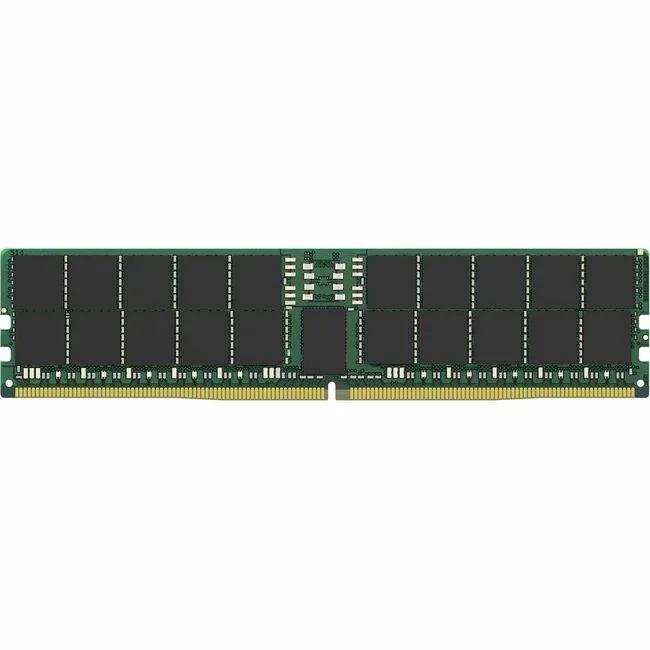

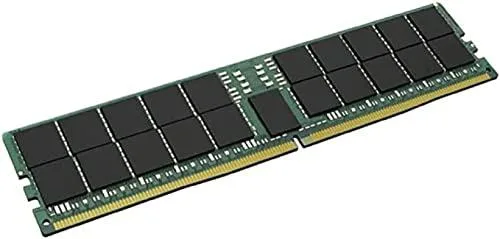

Green 288-pin DDR5 DIMM module with black chips, no heat spreader

Kingston Technology Corp.

Kingston Technology Corp. KTD-PE548D4-64G 64GB DDR5-4800 CL40 1.10V ECC Registered 288-pin DIMM server RAM

SKU CH-X8MH-XT0DP MPN KTD-PE548D4-64G

64 GB DDR5-4800 registered ECC module with CL40 latency at 1.10 V in a 288-pin DIMM

  • Capacity64GB
  • SpeedDDR5 4800 (PC5 38400)
  • CAS LatencyCL40
  • Voltage1.10V
  • ECCYes
  • Buffered/RegisteredRegistered
  • 64 GB capacity supports large-scale server workloads
  • DDR5-4800 speed delivers high data throughput
  • CL40 latency enables responsive memory access
  • 10 V operation reduces power draw per module
  • ECC registered design protects data integrity in critical systems

Server-Ready DDR5 ECC Module

The Kingston KTD-PE548D4-64G is a 64GB DDR5-4800 registered DIMM built for enterprise servers and workstations that require error-correcting memory. Its 288-pin form factor and 1.10V operation match standard DDR5 server slots. The module targets IT departments and system integrators deploying high-density memory configurations.

Sustained Load Stability

Registered signal processing buffers address and command lines to reduce electrical load on the memory bus during continuous operation. The CL40 latency and 2Rx4 organisation support steady throughput for virtualisation, database and compute workloads. ECC circuitry detects and corrects single-bit errors without interrupting service.

DDR5 Platform Constraints

DDR5 architecture moves power management onto the module itself, so the 1.10V supply is regulated locally rather than by the motherboard. Maximum capacity and speed depend on the specific CPU memory controller and qualified vendor list for the target platform. Mixing registered and unbuffered modules is not supported.

Highlights

  • 64 GB capacity supports large-scale server workloads
  • DDR5-4800 speed delivers high data throughput
  • CL40 latency enables responsive memory access
  • 10 V operation reduces power draw per module
  • ECC registered design protects data integrity in critical systems

Specifications

BrandKingston
ModelKTD-PE548D4-64G
Capacity64GB
SpeedDDR5 4800 (PC5 38400)
CAS LatencyCL40
Voltage1.10V
ECCYes
Buffered/RegisteredRegistered
Rank2Rx4
Heat SpreaderNo
Shipping weight0.05 kg
Package size25 × 25 × 25 mm

Questions about this item

How much power does this 1.10V DDR5 module draw when the server runs continuously?

At the rated 1.10 V the module uses less power than previous DDR generations, reducing heat output during all-day operation.

What motherboard slot and memory controller are required for this 288-pin registered DIMM?

A DDR5 RDIMM slot with support for registered ECC modules is needed; the 288-pin keying prevents insertion into other DDR generations.

Will this CL40 4800 MHz stick run at its rated speed alongside slower DDR5 modules already installed?

The memory controller will clock all populated slots to the lowest common speed, so mixing with slower DDR5 reduces this module to that lower rate.
