Kingston Technology Corp.
Kingston Technology Corp. KTH-PL313K3/24G 24GB (3 x 8GB) DDR3 1333 ECC Registered memory upgrade
24 GB DDR3 1333 ECC registered kit in three 8 GB modules for HP/Compaq systems
- Capacity24GB (3 x 8GB)
- Type240-Pin DDR3 SDRAM
- SpeedDDR3 1333
- ECCYes
- Buffered/RegisteredRegistered
- Compatible SystemHP/Compaq
- 24 GB capacity for memory-intensive workloads using three 8 GB modules
- DDR3 1333 speed for reliable data throughput in compatible systems
- ECC registered design detects and corrects single-bit errors automatically
- Built for HP/Compaq systems matching part numbers 500662-24G and 516423-24G
- 100 % compatibility validated through Kingston's quality process

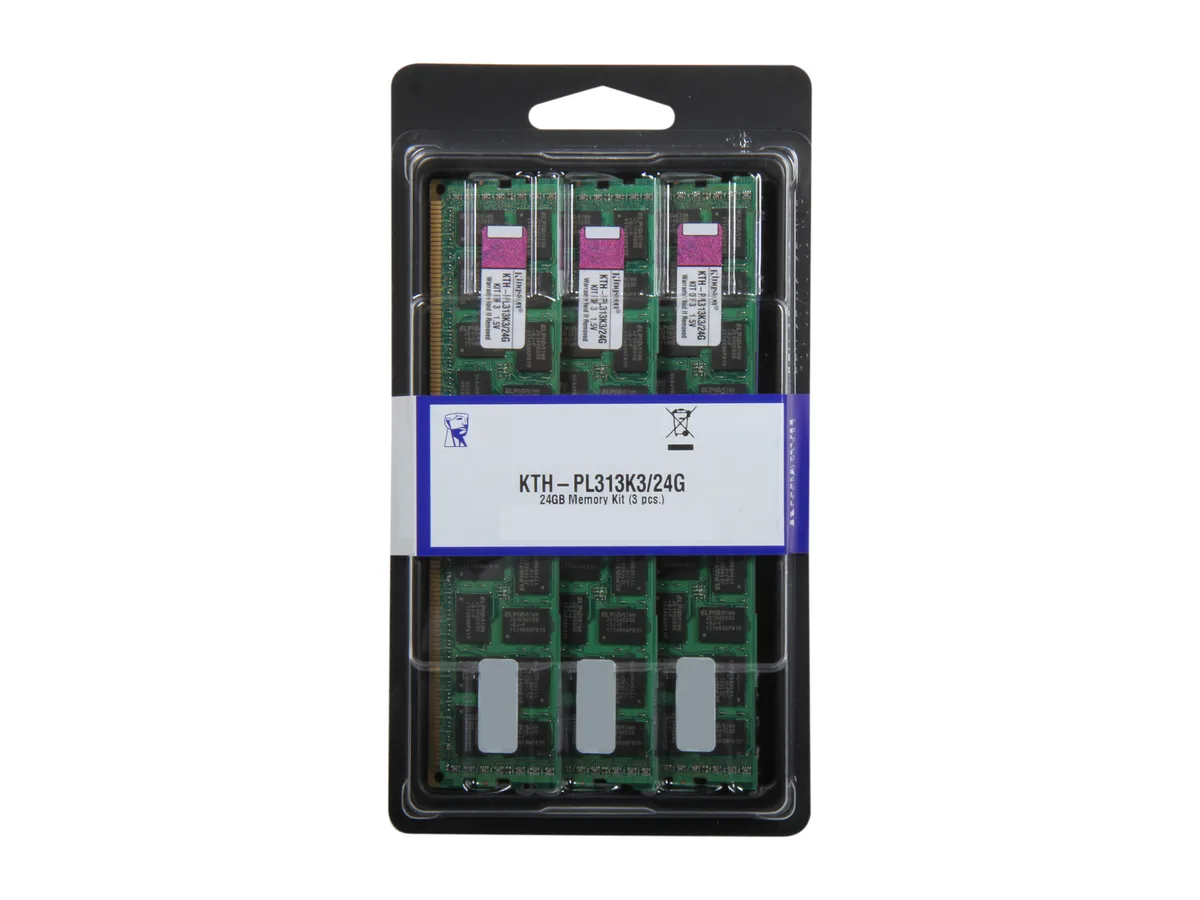

HP/Compaq DDR3 1333 ECC Kit

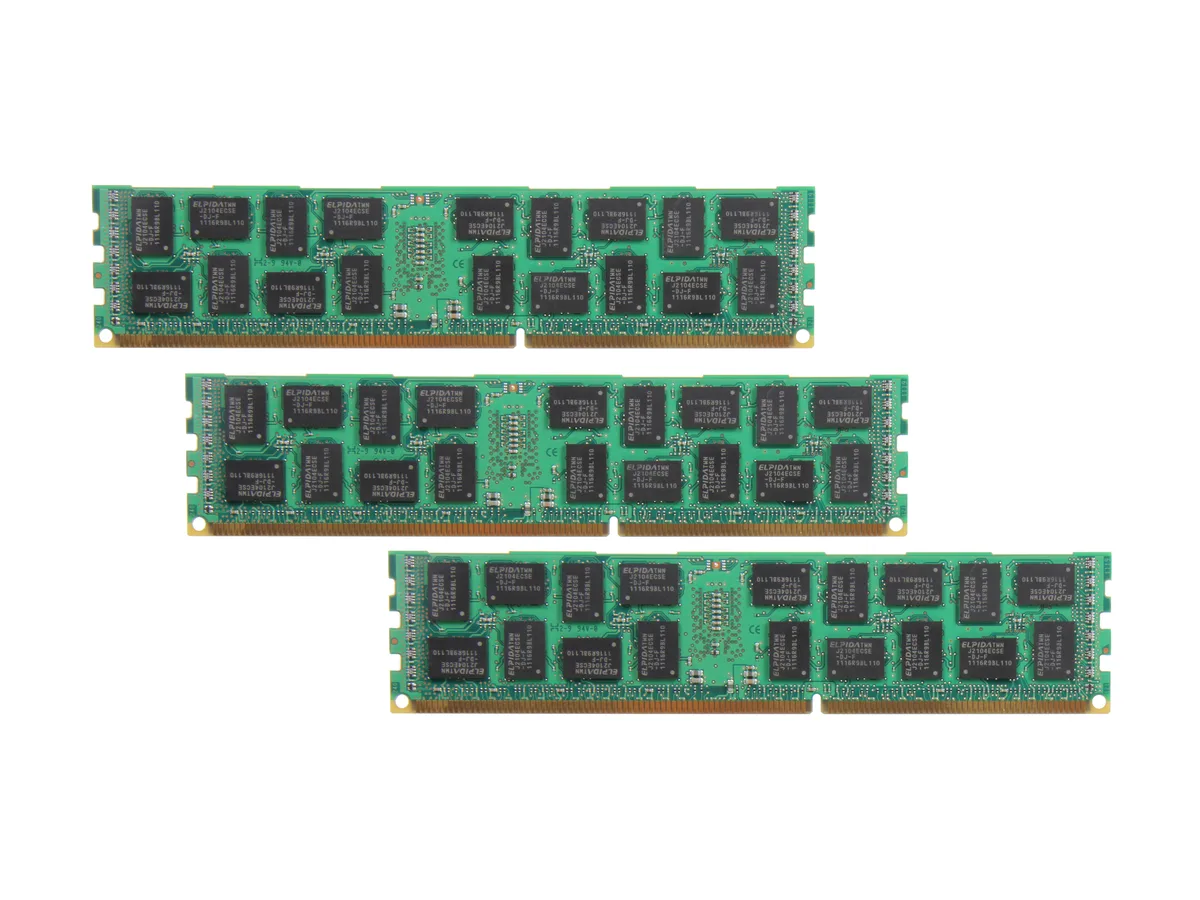

This 24 GB kit contains three 8 GB DDR3 1333 modules built for HP and Compaq systems. ECC Registered operation protects data integrity in server and workstation workloads. The kit matches HP part numbers 500662-24G and 516423-24G for direct compatibility.
Keyed 240-Pin installation
Each module uses the standard 240-pin DDR3 key so it seats only one way in the correct slot. Registered buffering adds electrical load; the system memory controller must support registered DIMMs or the kit will not post. Mixing with unbuffered modules prevents boot.
Steady throughput under load
ECC correction runs continuously during sustained write and read cycles without throttling. Registered signalling keeps command timing stable when all three channels stay populated for long periods. The 1333 MT/s rating is maintained across extended workloads.
Highlights
- 24 GB capacity for memory-intensive workloads using three 8 GB modules
- DDR3 1333 speed for reliable data throughput in compatible systems
- ECC registered design detects and corrects single-bit errors automatically
- Built for HP/Compaq systems matching part numbers 500662-24G and 516423-24G
- 100 % compatibility validated through Kingston's quality process
Specifications
| Brand | Kingston |
|---|---|
| Model | KTH-PL313K3/24G |
| Capacity | 24GB (3 x 8GB) |
| Type | 240-Pin DDR3 SDRAM |
| Speed | DDR3 1333 |
| ECC | Yes |
| Buffered/Registered | Registered |
| Compatible System | HP/Compaq |
| Features | Mfgr's System P/N's: 500662-24G (1333MHz) (HP/Compaq); 516423-24G (1066MHz) (HP/Compaq) |
| Shipping weight | 0.07 kg |
| Package size | 171 × 95 × 13 mm |
Questions about this item
How can I confirm the 24GB kit is running at DDR3 1333 with ECC registered after installation?
Check the BIOS memory information or a system utility such as CPU-Z; it should report 24GB total, 1333 MHz speed, and show ECC and registered mode active.
What comes in the box and do I need anything else to install the three 8GB modules?
The box contains three 8GB 240-pin DDR3 DIMMs; no extra parts are required if your HP/Compaq system has three free DDR3 slots.
Which HP part numbers does this KTH-PL313K3/24G kit replace?
It matches HP part numbers 500662-24G for 1333 MHz systems and 516423-24G for 1066 MHz systems.
