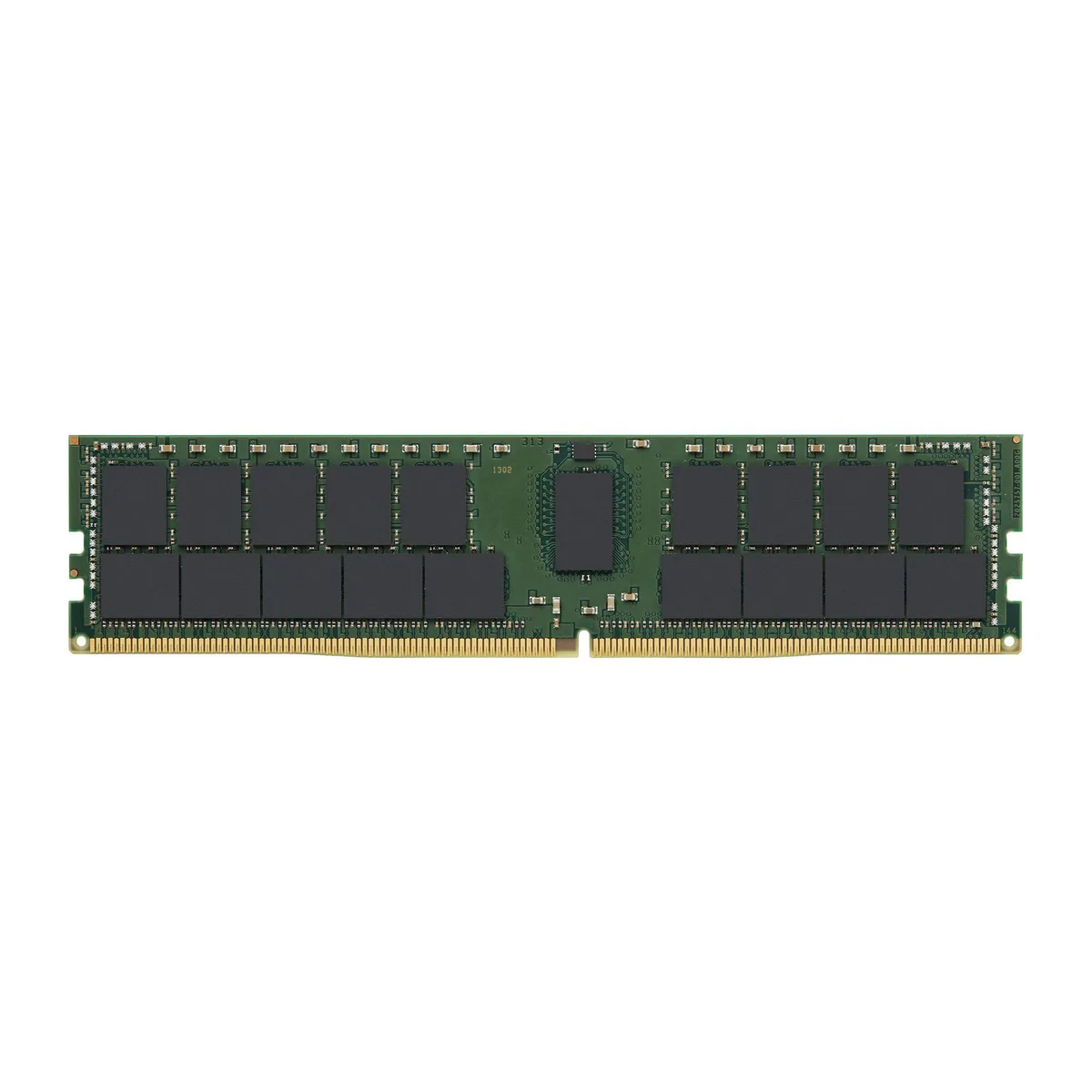

Green bare circuit board DDR4 DIMM with black memory chips and gold edge connectors

Kingston Technology Corp.

Kingston Technology Corp. KTH-PL432/32G 32GB DDR4 3200 CL22 ECC Registered 288-pin DIMM server RAM

SKU CH-A34V-Y2KAV MPN KTH-PL432/32G

32 GB DDR4-3200 ECC registered DIMM with CL22 latency and KTH-PL432/32G part code for server workloads

  • Capacity32GB
  • Type288-Pin DDR4 SDRAM
  • SpeedDDR4 3200 (PC4 25600)
  • CAS LatencyCL22
  • Voltage1.20V
  • ECCYes
  • 32 GB capacity supports heavy server workloads
  • DDR4 3200 speed with CL22 latency enables fast data access
  • ECC registered design detects and corrects memory errors
  • 288-pin DIMM form factor fits standard server slots
  • 20 V operation reduces power draw per module

32 GB DDR4 Registered Server Memory

This 32 GB DDR4 module runs at 3200 MHz with CL22 latency and 1.20 V operation. It uses a 288-pin DIMM form factor and includes ECC with registered signal processing for data integrity in server environments.

Suited for servers needing registered ECC DDR4

This module fits systems that require registered DDR4 memory with ECC support. It is not for desktop boards that accept only unbuffered non-ECC DIMMs, nor for platforms limited to lower-density or single-rank configurations.

Installs like a standard 288-pin DIMM

Align the notch with the slot key and press firmly until the retention clips lock. Ensure the platform supports registered ECC DDR4 and that the BIOS is set to the correct voltage and speed; mismatched memory types or disabled ECC in firmware are the most common issues.

Highlights

  • 32 GB capacity supports heavy server workloads
  • DDR4 3200 speed with CL22 latency enables fast data access
  • ECC registered design detects and corrects memory errors
  • 288-pin DIMM form factor fits standard server slots
  • 20 V operation reduces power draw per module

Specifications

BrandKingston
ModelKTH-PL432/32G
Capacity32GB
Type288-Pin DDR4 SDRAM
SpeedDDR4 3200 (PC4 25600)
CAS LatencyCL22
Voltage1.20V
ECCYes
Buffered/RegisteredRegistered
Rank2Rx4
BIOS/Performance ProfileIntel XMP 2.0
Heat SpreaderNo
Shipping weight0.45 kg
Package size58 × 51 × 3 mm

Questions about this item

Does my server motherboard need a DDR4 288-pin DIMM slot that supports ECC Registered memory at 1.20 V to use this 32 GB module?

Yes, the module is a 288-pin DDR4 DIMM with ECC and Registered signal processing that runs at 1.20 V, so the board must provide a matching DDR4 slot with ECC Registered support.

Can I add this 32 GB DDR4-3200 CL22 2Rx4 Registered stick alongside slower DDR4 modules already in the system?

The module will down-clock to the speed of the slowest installed DDR4 memory, but all slots must run in Registered ECC mode; mixing ranks or speeds may limit maximum capacity or stability.

How can I confirm the memory is running at DDR4-3200 with CL22 timings after installation?

Check the BIOS memory information or a tool such as CPU-Z; it should report 3200 MT/s, CAS latency 22, 1.20 V and Registered ECC operation for this module.
