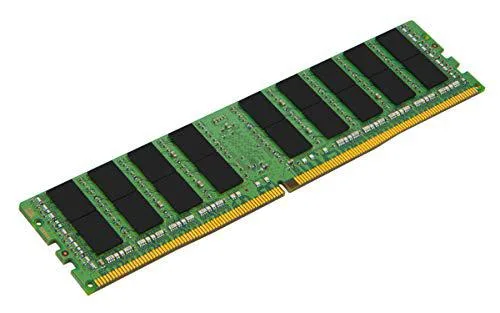

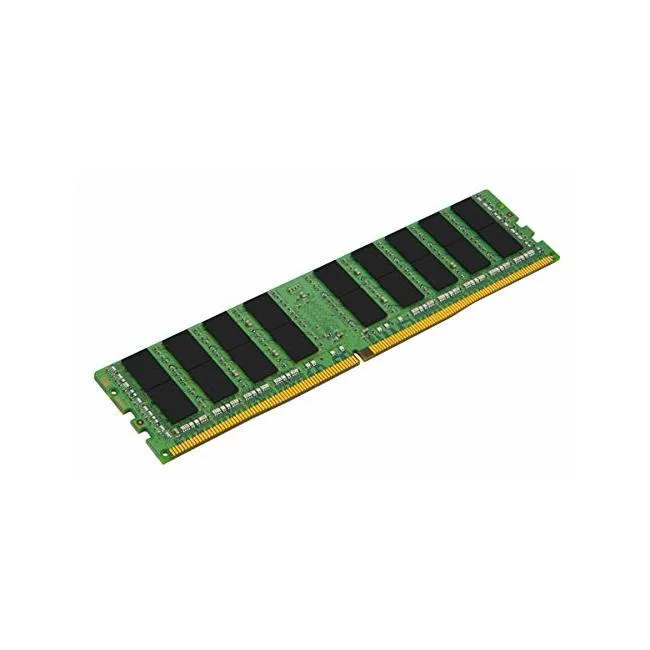

Green bare circuit board DDR4 memory module with black chips 288 pins

Kingston Technology Corp.

Kingston Technology Corp. KTH-PL432/64G 64GB DDR4 3200MT/s ECC Registered server RAM

SKU CH-T4R0-TQ0SJ MPN KTH-PL432/64G

64GB DDR4 3200MT/s ECC registered DIMM with CL22 latency and 1.2V operation

  • Capacity64GB
  • Type288-Pin DDR4 SDRAM
  • SpeedDDR4 3200 (PC4 25600)
  • CAS LatencyCL22
  • Voltage1.20V
  • ECCYes
  • 64 GB capacity supports large server workloads
  • DDR4 3200 MT/s delivers high memory bandwidth
  • ECC registered design protects data integrity
  • CL22 latency at 1.20 V optimises efficiency
  • 288-pin dual-rank module fits standard DDR4 slots

Server-grade DDR4 capacity

This 64GB registered DIMM is built for servers and workstations that require error-correcting memory at DDR4 3200 speeds. It suits administrators upgrading compatible platforms where data integrity and maximum density per slot are priorities.

64GB dual-rank registered module

The module delivers 64GB in a single 288-pin stick using 2Rx4 organisation, so a board with fewer slots can still reach high total capacity. Bandwidth tops out at the PC4-25600 rating and latency is CL22 at 1.20V.

Passive thermals at standard voltage

Without a heat spreader the DIMM relies on chassis airflow and runs at the JEDEC 1.20V level, keeping power draw modest under typical server loads. Noise is limited to the system fans already moving air across the memory bank.

Highlights

  • 64 GB capacity supports large server workloads
  • DDR4 3200 MT/s delivers high memory bandwidth
  • ECC registered design protects data integrity
  • CL22 latency at 1.20 V optimises efficiency
  • 288-pin dual-rank module fits standard DDR4 slots

Specifications

BrandKingston
ModelKTH-PL432/64G
Capacity64GB
Type288-Pin DDR4 SDRAM
SpeedDDR4 3200 (PC4 25600)
CAS LatencyCL22
Voltage1.20V
ECCYes
Buffered/RegisteredRegistered
Rank2Rx4
BIOS/Performance ProfileIntel XMP 2.0
Heat SpreaderNo
Shipping weight0.03 kg
Package size140 × 44 × 6 mm

Questions about this item

Will this 64GB DDR4 3200 CL22 registered ECC module run alongside older DDR4 sticks in my server?

The module is rated DDR4 3200 (PC4 25600) at 1.20V with CL22 timings; when mixed with slower DDR4 the system will clock all modules to the lowest common speed and latency, so the kit will operate at the slower sticks' specifications.

How can I verify the 2Rx4 registered ECC configuration is active after installation?

Check the BIOS memory information or run a tool such as dmidecode or CPU-Z; it should report 64GB capacity, 3200MT/s speed, registered (buffered) type, ECC enabled and dual-rank (2Rx4) organisation.

Does the KTH-PL432/64G package include a heat spreader or any extra accessories I need to buy separately?

The module ships without a heat spreader and is supplied as a single 288-pin DIMM; no cables, brackets or additional components are included or required for installation.
