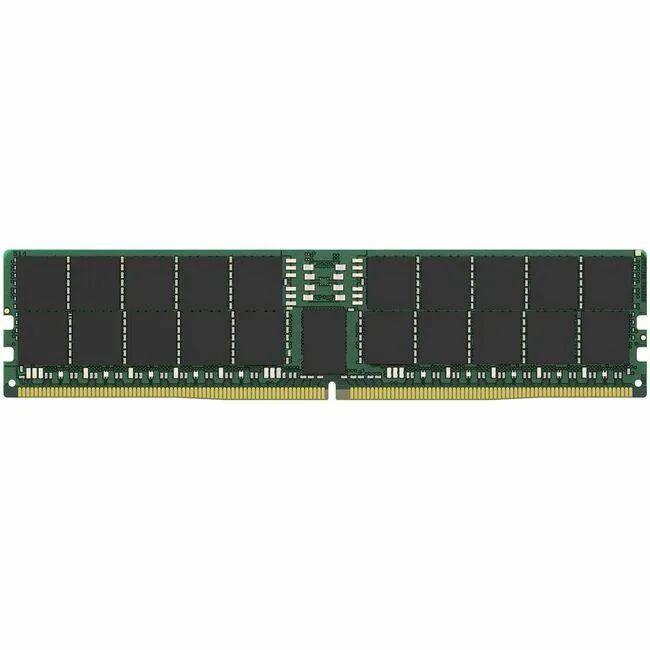

Green rectangular DDR5 DIMM with black chips no heat spreader 288 pins

Kingston Technology Corp.

Kingston Technology Corp. KTL-TS548D4-64G 64GB DDR5 4800 CL40 Registered ECC Server RAM

SKU CH-XTHC-V7J9F MPN KTL-TS548D4-64G

A 64 GB registered ECC DDR5 module running at 4800 MHz with CL40 latency and 1.10 V for server stability

  • Capacity64GB
  • Type288-Pin DDR5 SDRAM
  • SpeedDDR5 4800 (PC5 38400)
  • CAS LatencyCL40
  • Voltage1.10V
  • ECCYes
  • 64 GB capacity supports heavy multi-application workloads
  • DDR5 4800 MT/s speed enables fast data throughput
  • CL40 latency provides quick access to stored data
  • Registered ECC design improves signal integrity and error correction
  • 10 V operation reduces power draw per module

Capacity & Form Factor

This 64GB DDR5 module uses the standard 288-pin DIMM layout and operates at 1.10V. It provides a single high-density stick for server boards that accept registered memory. The 2Rx4 organisation helps the memory controller manage electrical loading across the channel.

Suited & Unsuitable Builds

The registered ECC design targets multi-socket servers and workstations running virtualisation or database workloads where data integrity matters. Desktop boards and consumer laptops that lack registered-buffer support cannot use this module and will not post with it installed.

Deciding Specification

The registered ECC signal processing is the single attribute that determines whether this part fits the platform; without a chipset and BIOS that explicitly support registered DDR5 the module will not function.

Highlights

  • 64 GB capacity supports heavy multi-application workloads
  • DDR5 4800 MT/s speed enables fast data throughput
  • CL40 latency provides quick access to stored data
  • Registered ECC design improves signal integrity and error correction
  • 10 V operation reduces power draw per module

Specifications

BrandKingston
ModelKTL-TS548D4-64G
Capacity64GB
Type288-Pin DDR5 SDRAM
SpeedDDR5 4800 (PC5 38400)
CAS LatencyCL40
Voltage1.10V
ECCYes
Buffered/RegisteredRegistered
Rank2Rx4
Heat SpreaderNo
Shipping weight0.05 kg
Package size163 × 46 × 6 mm

Questions about this item

Will this 288-pin DDR5 DIMM fit my server's memory slots?

The module uses the standard 288-pin DDR5 DIMM form factor. Verify your motherboard supports DDR5 registered ECC memory and has available 288-pin slots before purchasing.

What BIOS setting is often missed when installing this registered ECC module?

After seating the 2Rx4 registered DIMM firmly until the clips lock, enable ECC error correction in the BIOS; many builders forget this step and lose the data-integrity benefit.

Does the lack of a heat spreader mean I must replace the module sooner?

No. The bare PCB runs at the standard 1.10 V and CL40 latency. As long as chassis airflow meets the server vendor's specification, no scheduled replacement is required.
