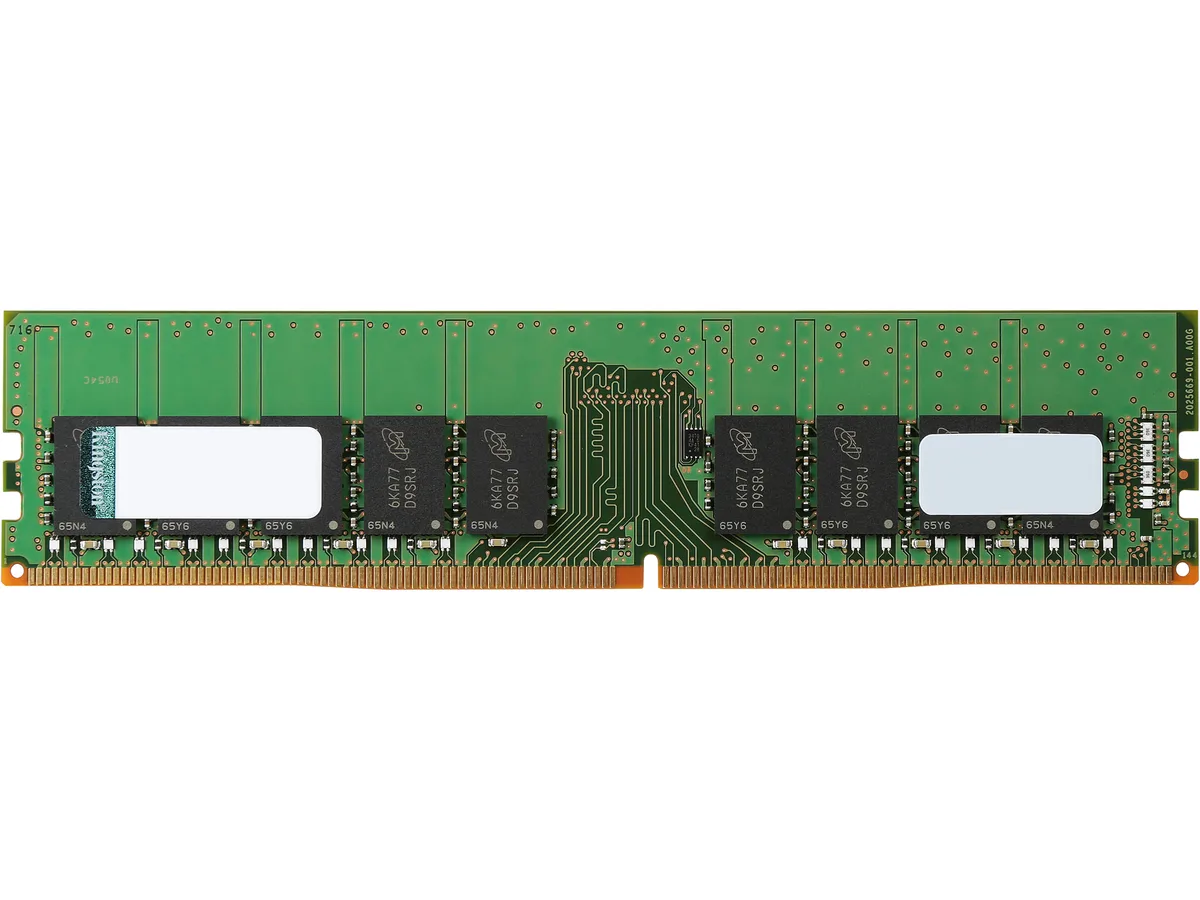

Green circuit board with black memory chips, 288 gold pins, no heat spreader

Kingston Technology Corp.

Kingston Technology Corp. KVR24E17D8/16 16GB DDR4 2400 ECC CL17 2Rx8 server RAM

SKU CH-FZG5-A2TS7 MPN KVR24E17D8/16

16 GB DDR4 2400 ECC unbuffered server memory with CL17 timing and 2Rx8 dual-rank organisation

  • Capacity16GB
  • Type288-Pin DDR4 SDRAM
  • SpeedDDR4 2400 (PC4 19200)
  • CAS LatencyCL17
  • Timing17-17-17
  • Voltage1.20V
  • Error-correcting code protects data integrity
  • 16 GB capacity supports larger workloads
  • DDR4 2400 speed delivers 19200 MB/s bandwidth
  • CL17 timing reduces access latency
  • Dual-rank 2Rx8 organisation increases memory density

16GB DDR4 ECC server module

This 16GB DDR4 2400 module targets servers and workstations that require error-correcting memory. The unbuffered design fits platforms that accept UDIMMs, while the dual-rank 2Rx8 organisation helps populate memory channels efficiently. It suits administrators who need data integrity without registered DIMM overhead.

JEDEC-tested unbuffered DIMM

The module carries no heat spreader, keeping the standard 288-pin profile for dense server boards. Operating at 1.20V, it meets JEDEC specifications for DDR4 2400 (PC4 19200) with CL17 17-17-17 timing. The plain green PCB allows tight DIMM spacing in 1U and blade chassis where taller modules would interfere with airflow or adjacent slots.

Replaces non-ECC or lower-capacity UDIMMs

The jump is worthwhile when the platform supports ECC and the workload cannot tolerate silent data corruption. It also upgrades 8GB sticks to double the capacity per slot, delaying the need for a motherboard with more channels. Builders who need registered memory or speeds above 2400 should look elsewhere.

Highlights

  • Error-correcting code protects data integrity
  • 16 GB capacity supports larger workloads
  • DDR4 2400 speed delivers 19200 MB/s bandwidth
  • CL17 timing reduces access latency
  • Dual-rank 2Rx8 organisation increases memory density

Specifications

BrandKingston
SeriesValueRAM
ModelKVR24E17D8/16
Capacity16GB
Type288-Pin DDR4 SDRAM
SpeedDDR4 2400 (PC4 19200)
CAS LatencyCL17
Timing17-17-17
Voltage1.20V
ECCYes
Buffered/RegisteredUnbuffered
Rank2Rx8
Heat SpreaderNo
FeaturesECC
Unbuffered
Designed and Tested to meet JEDEC
Free Technical Support
Shipping weight0.03 kg
Package size146 × 46 × 8 mm

Questions about this item

What bandwidth does the DDR4 2400 interface provide for this module?

The DDR4 2400 interface is rated at PC4 19200, which represents the peak transfer rate in megabytes per second for this 16GB DIMM.

What physical slot and dimensions are required to install this DIMM?

This module uses the standard 288-pin DDR4 DIMM form factor and requires an unbuffered DDR4 server slot; it has no heat spreader, so it fits in standard-height bays.

What is the correct installation procedure for this unbuffered ECC module?

Align the notch on the 288-pin edge connector with the slot key, press down firmly until both retention clips click, and ensure the system detects the 2Rx8 ECC configuration at 1.20V.
