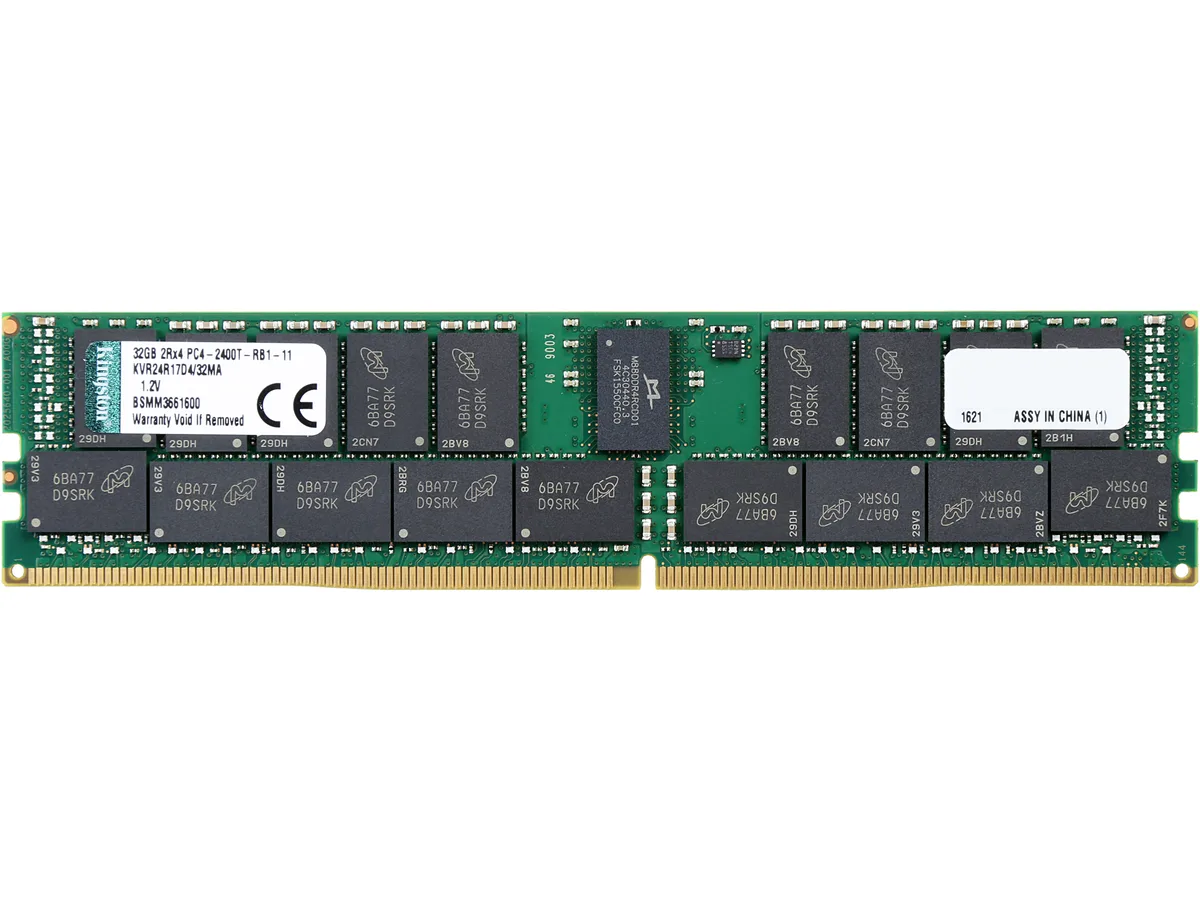

Green 288-pin DDR4 DIMM with black chips, no heat spreader

Kingston Technology Corp.

Kingston Technology Corp. KVR24R17D4/32MA 32GB DDR4 2400 ECC Reg CL17 2Rx4 server RAM

SKU CH-5XYN-FVZR4 MPN KVR24R17D4/32MA

32GB DDR4 2400 ECC registered DIMM with CL17 latency and 2Rx4 organisation for server workloads

  • Capacity32GB
  • Type288-Pin DDR4 SDRAM
  • SpeedDDR4 2400 (PC4 19200)
  • CAS LatencyCL17
  • Timing17-17-17
  • Voltage1.20V
  • 32 GB capacity handles large server workloads
  • DDR4 2400 speed with CL17 timing for responsive data access
  • ECC and registered design protects data integrity under load
  • 2Rx4 Micron A DRAM organisation optimises density and signal quality
  • JEDEC-tested 1.20 V operation meets industry reliability standards

32GB DDR4 2400 ECC Registered Module

This Kingston ValueRAM module provides 32GB of DDR4 memory running at 2400 MT/s with CL17 timings. It is a registered, ECC-enabled DIMM built for servers and workstations that require error correction and signal buffering. The 2Rx4 organisation uses Micron A components and operates at 1.20V.

Upgrade From Non-ECC Or Lower-Capacity Sticks

Replacing non-ECC or unbuffered modules with this registered ECC DIMM adds data-integrity protection and reduces electrical load on the memory controller. The jump is worth it when the platform requires registered memory and the workload cannot tolerate silent data corruption. Mixing registered and unbuffered modules is not supported.

For Servers Needing Registered ECC At JEDEC Speeds

This DIMM suits administrators populating servers that mandate registered ECC DDR4 at standard JEDEC voltages and timings. Builders who need heat spreaders, higher frequencies, lower latencies or unbuffered operation should look at other product lines.

Highlights

  • 32 GB capacity handles large server workloads
  • DDR4 2400 speed with CL17 timing for responsive data access
  • ECC and registered design protects data integrity under load
  • 2Rx4 Micron A DRAM organisation optimises density and signal quality
  • JEDEC-tested 1.20 V operation meets industry reliability standards

Specifications

BrandKingston
SeriesValueRAM
ModelKVR24R17D4/32MA
Capacity32GB
Type288-Pin DDR4 SDRAM
SpeedDDR4 2400 (PC4 19200)
CAS LatencyCL17
Timing17-17-17
Voltage1.20V
ECCYes
Buffered/RegisteredRegistered
Rank2Rx4
Heat SpreaderNo
FeaturesECC
Registered
Micron A
Designed and Tested to meet JEDEC
Free Technical Support
Shipping weight0.04 kg
Package size146 × 46 × 8 mm

Questions about this item

Will this 288-Pin DDR4 module fit my server DIMM slot?

The module uses the standard 288-Pin DDR4 form factor and operates at 1.20V, matching JEDEC DDR4 slot specifications.

What is the correct way to seat this registered ECC DIMM, and what step is often missed?

Align the notch with the slot key, press firmly until both retention clips click, and ensure the registered buffer engages — skipping the clip check is the common error.

When will this 32GB 2Rx4 Micron A kit need replacement?

DDR4 DRAM has no scheduled replacement; swap only if ECC correctable errors rise or the module fails memory diagnostics.
