Kingston Technology Corp.
Kingston Technology Corp. KVR400X64C3AK2/1G 1GB (2 x 512MB) DDR 400 desktop RAM
Dual-channel kit provides 1GB of DDR 400 desktop memory with CL3 timing and 2.60V operation
- Capacity1GB (2 x 512MB)
- SpeedDDR 400 (PC 3200)
- CAS LatencyCL3
- Timing3-3-3
- Voltage2.60V
- Multi-channel KitDual Channel Kit
- Dual-channel kit doubles bandwidth for matched DIMMs
- 1 GB total capacity from two 512 MB modules
- DDR 400 speed rated at PC 3200
- CL3 latency with 3-3-3 timings for quick response
- 60 V operating voltage matches DDR specification
ValueRAM Dual Channel Kit

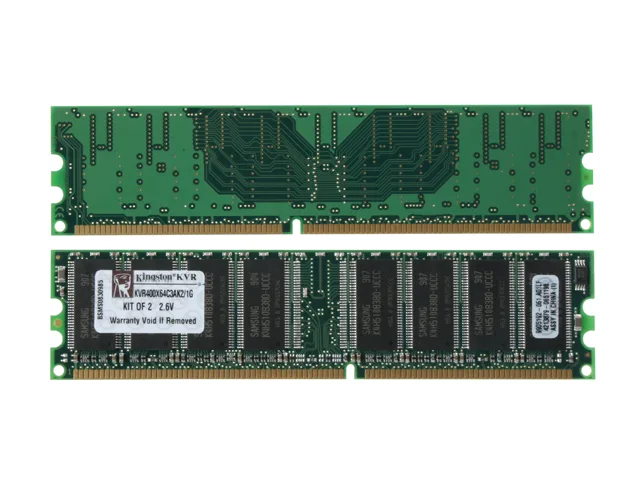

This Kingston ValueRAM kit provides 1 GB of DDR 400 desktop memory in a matched pair of 512 MB modules. It is intended for older systems that require PC 3200 speed and dual-channel operation. The modules run at 2.60 V with CL3 timing.
Installing DDR 400 DIMMs
Align the notch on each module with the slot key and press firmly until the retention clips click. Common issues include mixing single-sided and double-sided sticks or leaving a slot unpopulated in a dual-channel board. Ensure the motherboard supports 2.60 V DDR before fitting.
CL3 3-3-3 Timing
The decisive specification is the CL3 3-3-3 timing at DDR 400. A motherboard that cannot run this latency at 2.60 V will not boot or will fall back to slower speeds. Match this timing exactly when adding to existing memory.
Highlights
- Dual-channel kit doubles bandwidth for matched DIMMs
- 1 GB total capacity from two 512 MB modules
- DDR 400 speed rated at PC 3200
- CL3 latency with 3-3-3 timings for quick response
- 60 V operating voltage matches DDR specification
Specifications
| Brand | Kingston |
|---|---|
| Series | ValueRAM |
| Model | KVR400X64C3AK2/1G |
| Capacity | 1GB (2 x 512MB) |
| Speed | DDR 400 (PC 3200) |
| CAS Latency | CL3 |
| Timing | 3-3-3 |
| Voltage | 2.60V |
| Multi-channel Kit | Dual Channel Kit |
| Heat Spreader | No |
| Shipping weight | 0.05 kg |
| Package size | 170 × 94 × 19 mm |
Questions about this item
How can I verify the dual-channel kit is running at DDR 400 with CL3 timing after installation?
Enter the BIOS or use a system-information utility and confirm the memory frequency reads 400 MT/s and the timings show 3-3-3 at 2.60 V.
What components are included and is any additional hardware required?

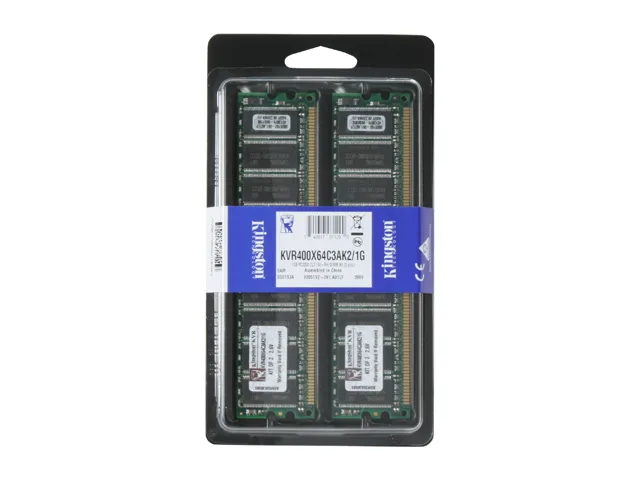

The box contains two matched 512 MB DDR DIMMs making a 1 GB dual-channel kit; no extra parts are needed for installation.
Which version should I choose if my system needs a 1 GB dual-channel kit at PC 3200 speed?
This model KVR400X64C3AK2/1G provides exactly 1 GB as two 512 MB modules rated DDR 400 (PC 3200) CL3.
