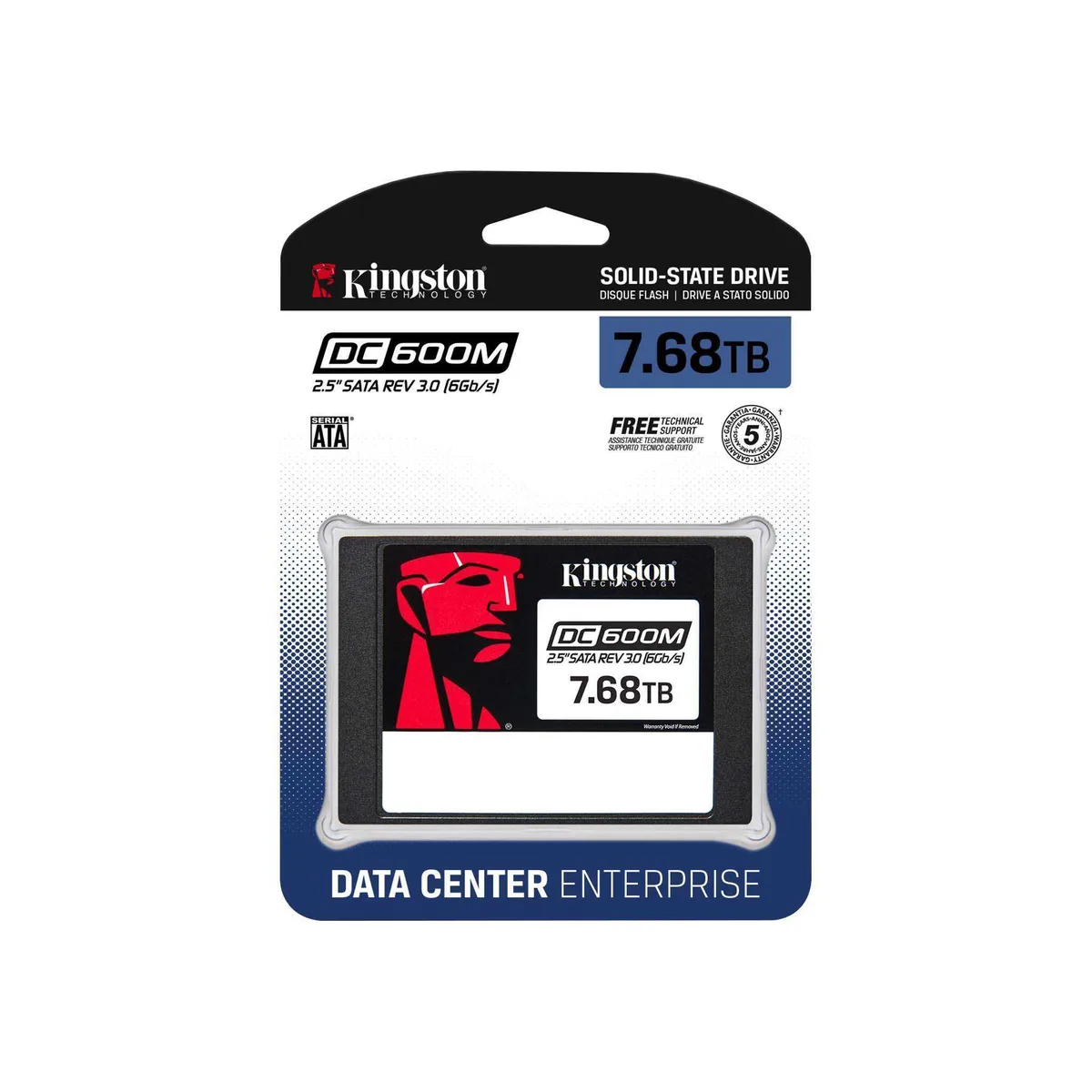

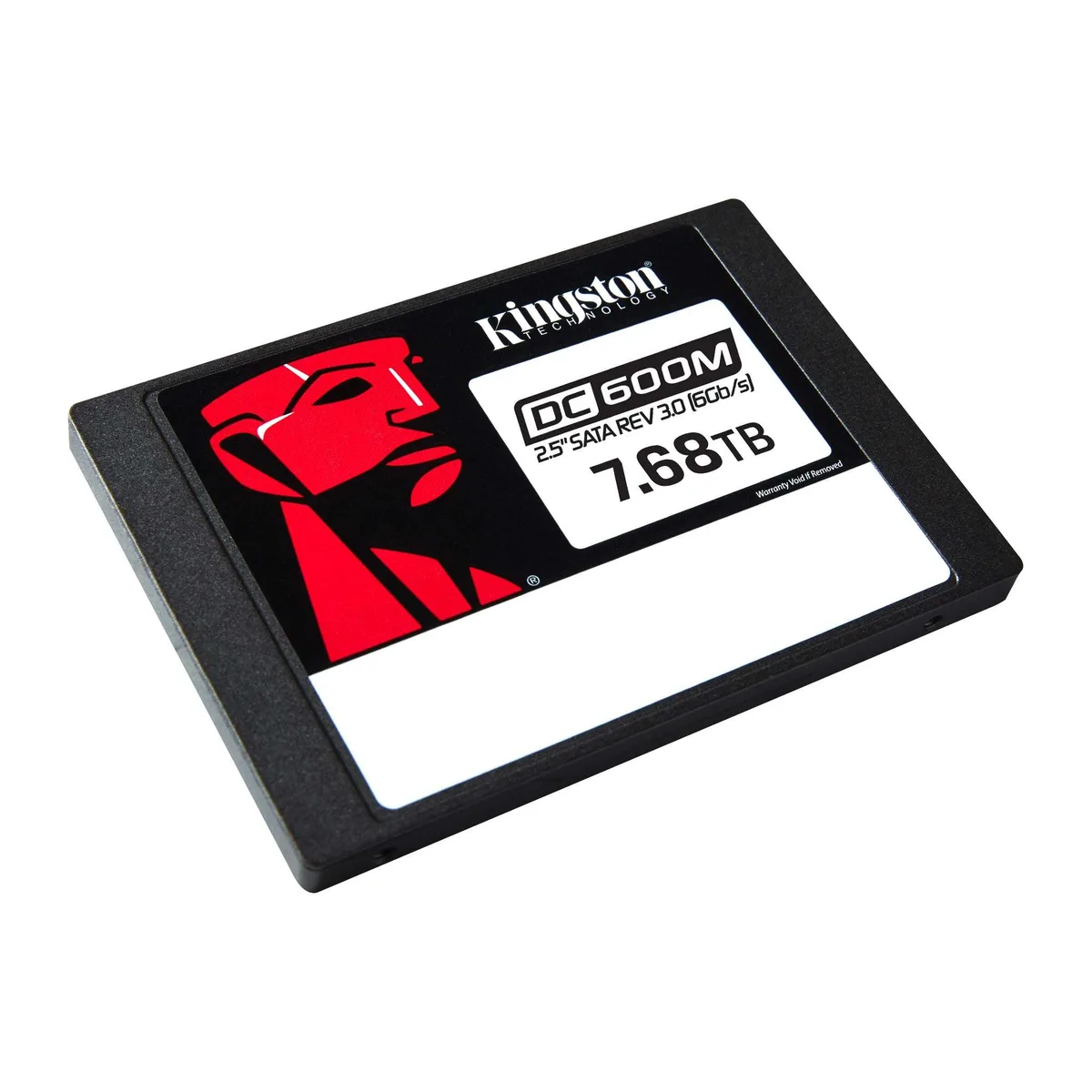

Rectangular 2.5 inch SSD with silver metal casing and label showing capacity and model

Kingston Technology Corp.

Kingston Technology Corp. SEDC600ME/7680G enterprise SSD 7.68TB 2.5" SATA 1 DWPD

SKU CH-TV2K-93AYG MPN SEDC600ME/7680G

A 7.68 TB SATA enterprise SSD with 3D TLC, 1 DWPD endurance and 256-bit AES encryption for mixed-use server workloads

  • Form Factor2.5"
  • Capacity7.68TB
  • Memory Components3D TLC
  • InterfaceSATA III
  • Max Sequential ReadUp to 560 MBps
  • Max Sequential WriteUp to 530 MBps

Options 7.68TB

Struck-through versions exist but are not stocked here.

  • 68 TB capacity stores large enterprise datasets
  • 256-bit AES encryption protects data from unauthorised access
  • SATA 600 interface delivers up to 560 MB/s sequential read
  • 1 DWPD endurance with 14016 TBW supports mixed-use workloads
  • 2 million hour MTBF and 2.17G vibration resistance ensure server reliability

Enterprise storage drive

The Kingston SEDC600ME/7680G is a 7.68TB 2.5 inch SATA SSD built for mixed-use server and data-centre workloads. Its 3D TLC NAND and 1 DWPD endurance rating suit read-heavy databases, virtualisation hosts and content repositories that need consistent latency.

2.5 inch SATA connector

The 7mm z-height fits standard hot-swap bays and backplanes using the SATA III interface. Hardware-based 256-bit AES encryption secures data at rest without host software overhead, and the 2 million hour MTBF plus vibration tolerance up to 2.17G operating support continuous rack deployment.

Compatibility check

Verify the chassis or controller provides a 6Gbps SATA port and 2.5 inch bay with 7mm clearance. Confirm the workload stays within the 14016TB total bytes written budget and that the 0 to 70°C operating range matches your airflow design. Builds needing PCIe bandwidth or higher write endurance should evaluate alternative interfaces.

Highlights

  • 68 TB capacity stores large enterprise datasets
  • 256-bit AES encryption protects data from unauthorised access
  • SATA 600 interface delivers up to 560 MB/s sequential read
  • 1 DWPD endurance with 14016 TBW supports mixed-use workloads
  • 2 million hour MTBF and 2.17G vibration resistance ensure server reliability

Specifications

BrandKingston
ModelSEDC600ME/7680G
Form Factor2.5"
Capacity7.68TB
Memory Components3D TLC
InterfaceSATA III
Max Sequential ReadUp to 560 MBps
Max Sequential WriteUp to 530 MBps
4KB Random ReadUp to 94,000 IOPS
4KB Random WriteUp to 34,000 IOPS
Read Latency<130 us
Write Latency<70 us
Endurance1 DWPD
Terabytes Written (TBW)14016TB
MTBF2,000,000 hours
Power Consumption (Idle)1.30W
Power Consumption (Active)Average: 1.45W
Max Read: 1.6W
Max Write: 3.6W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Vibration Resistance2.17G Peak (7-800Hz) operating
20G Peak (10-2000Hz) non-operating
Height7mm
Width100mm
Depth69.9mm
Weight92.34g
Shipping weight0.45 kg
Package size178 × 127 × 76 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What does the SATA 600 interface limit for this SEDC600ME/7680G drive?

The SATA 600 interface caps sequential throughput at 560 MBps read and 530 MBps write for this 7.68 TB model.

Which physical dimensions and bay size does the 2.5 inch SEDC600ME/7680G require?

It fits a standard 2.5 inch bay using 7 mm height, 100 mm width and 69.9 mm depth.

How is the SEDC600ME/7680G installed and what step is often missed?

Mount the 92.34 g drive in a 2.5 inch bay, connect SATA data and power cables, then enable 256-bit AES encryption in the RAID controller or OS before writing data.
