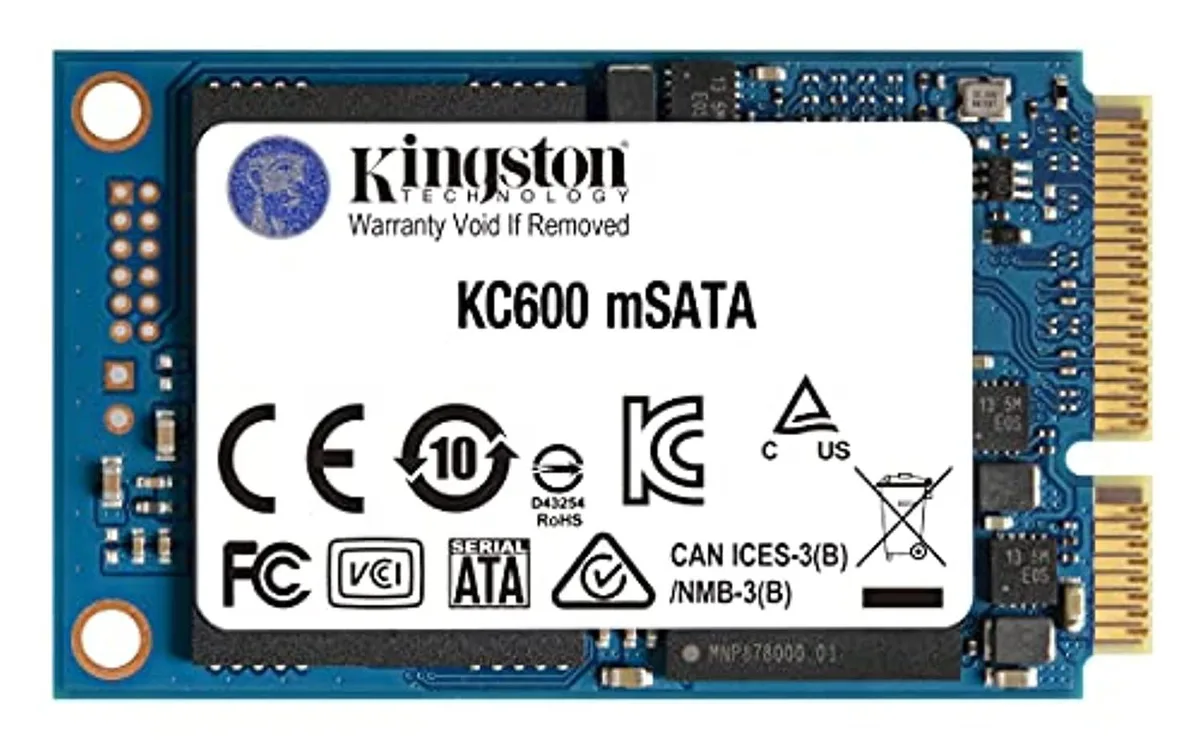

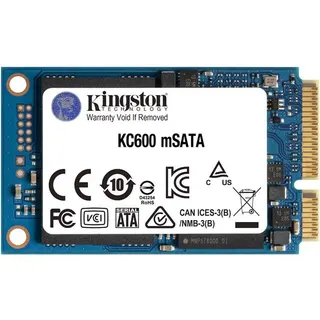

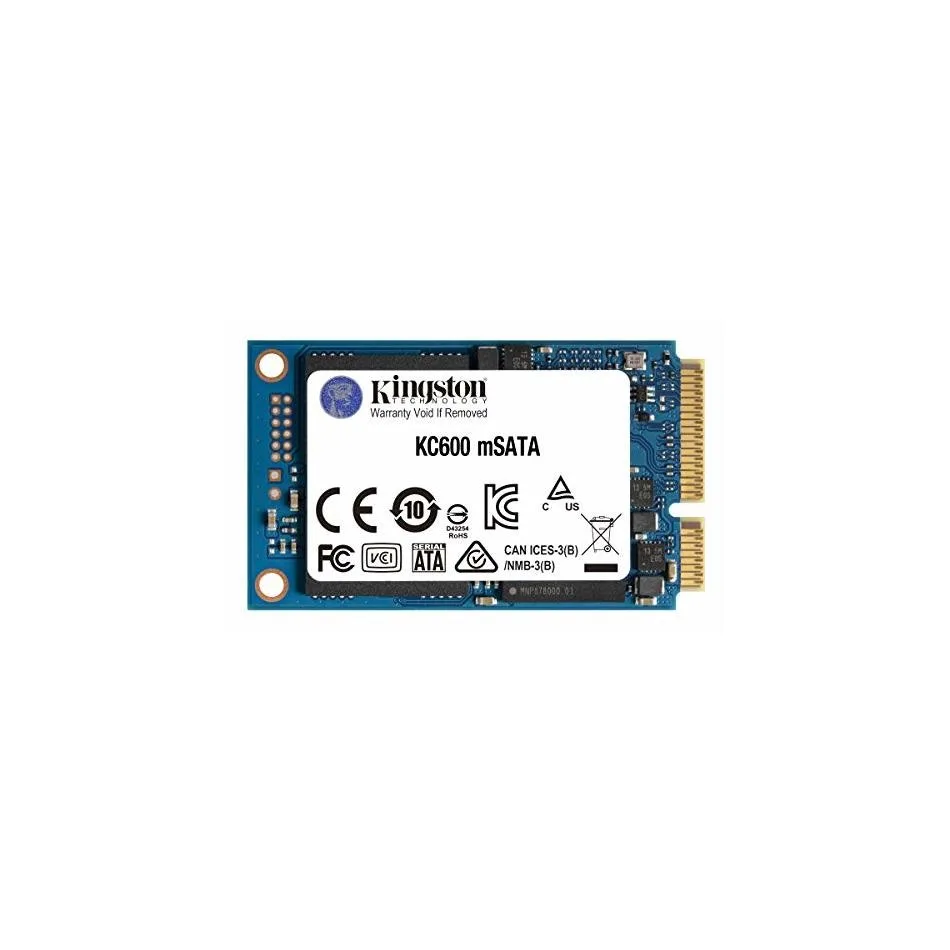

Kingston KC600 mSATA SSD bare circuit board black finish

Kingston Technology Corp.

Kingston Technology Corp. SKC600MS/1024G 1TB mSATA internal SSD

SKU CH-RFRC-X2KW2 MPN SKC600MS/1024G

1TB mSATA internal SSD with SATA III interface, 3D NAND, 1GB DRAM cache and AES 256-bit hardware encryption

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactormSATA
  • Capacity1TB
  • Memory Components3D NAND
  • InterfaceSATA III

Capacity 1TB

  • Hardware AES 256-bit encryption protects stored data
  • 1TB capacity stores large files and applications
  • SATA III interface delivers up to 550MB/s read and 520MB/s write
  • 3D NAND technology increases endurance and reliability
  • 1GB DRAM cache accelerates system responsiveness

KC600 mSATA 1TB SSD

The Kingston KC600 is an internal solid-state drive built in the mSATA form factor with a 1TB capacity. It uses 3D TLC NAND and a SATA III interface to deliver fast boot, load and transfer times for consumer laptops and compact desktops. A 1GB DRAM cache and the SM2259 controller support sustained performance during everyday workloads. Hardware-based AES 256-bit encryption with TCG Opal and eDrive compliance protects stored data.

Thermals noise and power

As a SATA SSD with no moving parts the drive runs silently and generates minimal heat under normal use. Power draw stays low, which helps preserve battery life in mobile systems and keeps thermal load light in small-form-factor enclosures. The 3D NAND and DRAM cache combination enables efficient read and write operations without high current spikes. Typical operating temperatures remain well within standard commercial limits.

Build quality and connectors

The mSATA module measures 50.80mm by 29.85mm with a 4.85mm height, fitting the standard mini-SATA slot found in many ultrabooks and embedded boards. A SATA 3.0 edge connector provides backwards compatibility with SATA 2.0 and 1.0 hosts. No cables or drive bays are required; the board mounts directly with a single screw. The bare PCB design keeps weight low and leaves clearance for tight chassis layouts.

Highlights

  • Hardware AES 256-bit encryption protects stored data
  • 1TB capacity stores large files and applications
  • SATA III interface delivers up to 550MB/s read and 520MB/s write
  • 3D NAND technology increases endurance and reliability
  • 1GB DRAM cache accelerates system responsiveness

Specifications

BrandKingston
SeriesKC600
ModelSKC600MS/1024G
Part NumberSKC600MS/1024G
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactormSATA
Capacity1TB
Memory Components3D NAND
InterfaceSATA III
ControllerSM2259
Cache1GB DRAM
Height4.85mm
Width50.80mm
Depth29.85mm
Shipping weight0.45 kg
Package size74 × 51 × 8 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the 1TB mSATA SSD in my laptop?

Insert the drive into the mSATA slot, press it down firmly and secure it with the single mounting screw.

What maintenance or replacement will the Kingston KC600 1TB mSATA drive need later?

No regular maintenance is required; replace the drive only if it fails or you need more than 1TB of storage.

What is the first limit that appears under sustained heavy writes on this 1TB mSATA SSD?

The SATA III interface caps sequential write throughput at 520 MB/s, which is the first bottleneck during long transfers.
