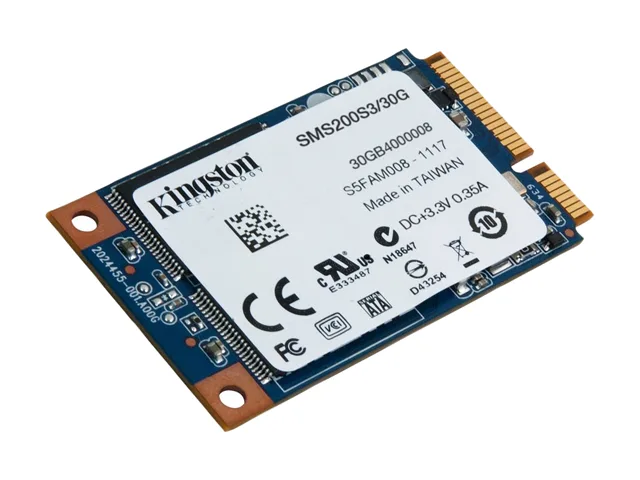

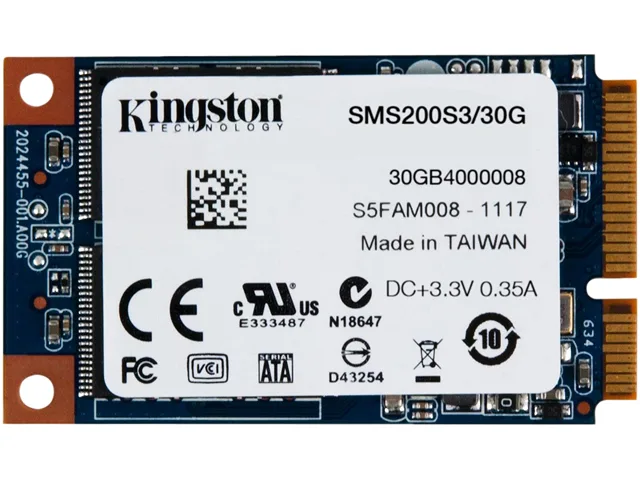

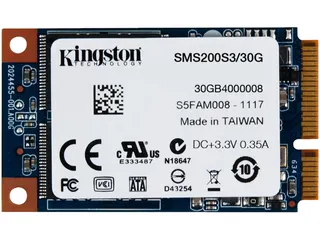

Small green mSATA circuit board with gold edge connector and black memory chips

Kingston Technology Corp.

Kingston Technology Corp. SMS200S3/30G 30GB mSATA internal SSD

SKU CH-64NN-2XZ9T MPN SMS200S3/30G

A 30GB mSATA internal SSD delivering up to 550MB/s read and 510MB/s write speeds for faster boot and application load times

  • Device TypeInternal Solid State Drive (SSD)
  • Form FactormSATA
  • Capacity30GB
  • InterfaceSATA III
  • Max Sequential ReadUp to 550MB/s
  • Max Sequential WriteUp to 510MB/s
  • 30GB capacity fits notebooks and Ultrabooks with an mSATA slot
  • Sequential read up to 550MB/s cuts boot and load times
  • Sequential write up to 510MB/s speeds file saves and installs
  • Random read up to 7500 IOPS keeps multitasking responsive
  • AES 128-bit encryption protects stored data

mSATA SSD for compact systems

The Kingston SSDNow mS200 is a 30GB internal solid-state drive built to the mSATA form factor. It connects through a SATA III interface and delivers sequential reads up to 550MB/s and writes up to 510MB/s. Random performance reaches 75,00 IOPS read and 71,000 IOPS write. The PCB-only design measures one-eighth the size of a 2.5" hard drive.

Suits mSATA slots and caching setups

This drive fits notebooks, Ultrabooks and desktops equipped with an mSATA connector. It supports Intel Smart Response Technology for use as a high-speed cache alongside a mechanical hard drive. TRIM support helps maintain performance on compatible operating systems. Systems without an mSATA slot cannot use this drive.

30GB capacity defines the use case

The 30GB capacity fits operating-system boots, key applications and caching roles. AES 128-bit encryption protects stored data. An MTBF of 1,000,000 hours and shock-resistant NAND flash suit mobile environments. Buyers needing more storage space must select a higher-capacity model.

Highlights

  • 30GB capacity fits notebooks and Ultrabooks with an mSATA slot
  • Sequential read up to 550MB/s cuts boot and load times
  • Sequential write up to 510MB/s speeds file saves and installs
  • Random read up to 7500 IOPS keeps multitasking responsive
  • AES 128-bit encryption protects stored data

Specifications

BrandKingston
SeriesSSD Now mS200
ModelSMS200S3/30G
Device TypeInternal Solid State Drive (SSD)
Form FactormSATA
Capacity30GB
InterfaceSATA III
Max Sequential ReadUp to 550MB/s
Max Sequential WriteUp to 510MB/s
4KB Random ReadUp to 75,00 IOPS
4KB Random WriteUp to 71,000 IOPS
MTBF1,000,000 hours
FeaturesmSATA interface
— fully compliant with industry standard, easy to fit, guaranteed
to work
NAND Flash memory based
— shock-resistant with low power consumption
Supports Intel’s SRT
— combines capacity advantage of HDD with performance
improvements of SSD in dual-storage configuration
Supports SMART
— monitors the status of your drive
Supports TRIM
— maintains maximum performance on compatible operating
systems
Guaranteed
— three-year warranty (two-year warranty on 30GB),
free technical support
Height0.1"
Width1.2"
Depth2"
Weight0.03
Shipping weight0.02 kg
Package size81 × 46 × 8 mm

Questions about this item

Does my laptop need an mSATA slot for this 30GB drive?

Yes, the drive uses the mSATA form factor and requires a compatible mSATA connector on the motherboard. It will not fit a standard 2.5-inch bay or an M.2 slot.

Can I pair this SATA III SSD with an older SATA 2.0 hard drive in the same system?

The drive supports SATA 1.0, 2.0 and 3.0 interfaces, so it will operate alongside a SATA 2.0 drive at the slower link speed.

How can I verify the drive delivers up to 550 MB/s read and 510 MB/s write after installation?

Run a benchmark tool such as CrystalDiskMark on a compatible operating system with TRIM enabled to measure sequential speeds against the rated figures.
