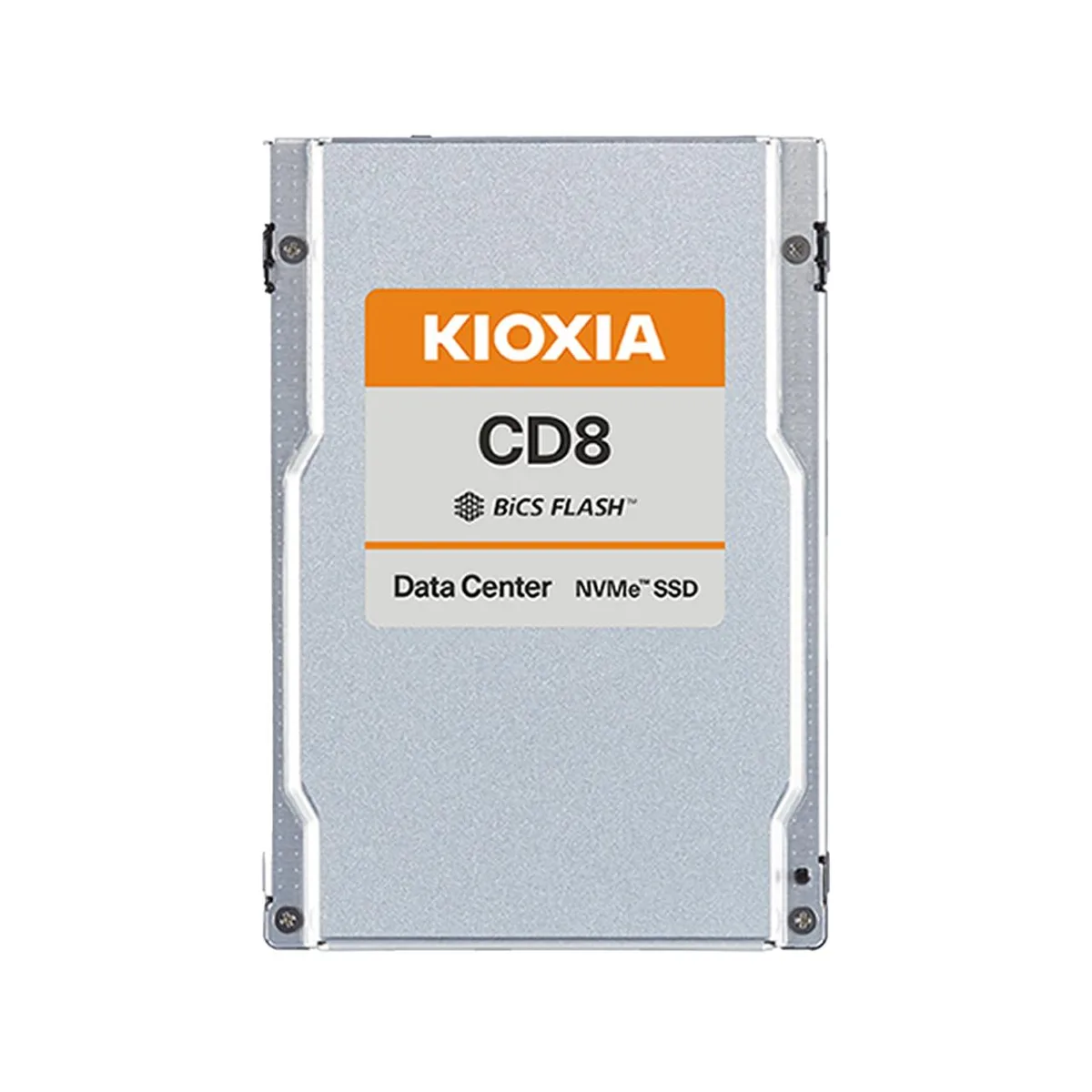

2.5 inch 15mm thick U.2 U.3 NVMe SSD silver label

Kioxia

Kioxia KCD8XVUG12T8 12.8TB 2.5" U.2/U.3 15mm PCIe 4 x 4 NVMe internal SSD

SKU CH-GAZH-S9S9V MPN KCD8XVUG12T8

12.8 TB data-centre SSD in a 2.5-inch 15 mm U.2/U.3 form factor with PCIe 4.0 x4 NVMe 1.4, 112-layer 3D TLC, 3 DWPD endurance and power-loss protection

  • Device TypeInternal / External Solid State Drive (SSD)
  • Massive 12.8 TB capacity fits hyperscale storage needs
  • PCIe 4.0 x4 link delivers 1 250K random read IOPS
  • 3 DWPD endurance sustains heavy mixed workloads 24x7
  • Power-loss protection and end-to-end data correction guard data integrity
  • 112-layer BiCS FLASH 3D TLC enables high-density 2.5-inch 15mm design

12.8TB NVMe SSD for data centres

The Kioxia KCD8XVUG12T8 is a 12.8TB NVMe solid-state drive built for scale-out and cloud workloads such as big data, online transaction processing and virtualization. It uses a PCIe 4.0 x4 interface and 112-layer BiCS FLASH 3D TLC to deliver consistent performance in 24x7 environments. The drive is rated for 3 drive writes per day and targets hyperscale deployments needing high-density storage.

2.5-inch 15mm U.2/U.3 form factor with single port

The drive fits a standard 2.5-inch bay at 15mm thickness and uses a combined U.2/U.3 connector for a single-port NVMe link. Power-loss protection and end-to-end data correction guard data integrity during unexpected outages. The proprietary Kioxia controller and firmware are tuned for steady throughput under sustained mixed-use loads.

Check backplane and thermal provisions before

Verify that your backplane or cabling supports a U.2/U.3 NVMe device with a PCIe 4.0 x4 electrical connection. The 15mm z-height requires a drive bay or sled that accommodates the thicker profile. Ensure the system can supply adequate airflow for continuous operation at the rated endurance level.

Highlights

  • Massive 12.8 TB capacity fits hyperscale storage needs
  • PCIe 4.0 x4 link delivers 1 250K random read IOPS
  • 3 DWPD endurance sustains heavy mixed workloads 24x7
  • Power-loss protection and end-to-end data correction guard data integrity
  • 112-layer BiCS FLASH 3D TLC enables high-density 2.5-inch 15mm design

Specifications

Device TypeInternal / External Solid State Drive (SSD)
Shipping weight0.14 kg
Package size203 × 152 × 51 mm

Questions about this item

What does the PCIe 4.0 x4 interface cap at in practice?

The PCIe 4.0 x4 interface runs at 16 GT/s and delivers up to 1,250K random read IOPS and 380K random write IOPS in this drive.

What physical space does the 2.5-inch 15mm U.2/U.3 form factor need?

It requires a 2.5-inch drive bay that accepts a 15mm thick U.2 or U.3 connector.

How is the drive installed and what step is often missed?

Slide the drive into the hot-plug backplane until the U.2/U.3 connector seats firmly; the step often missed is not pushing it in fully so the latch clicks.
