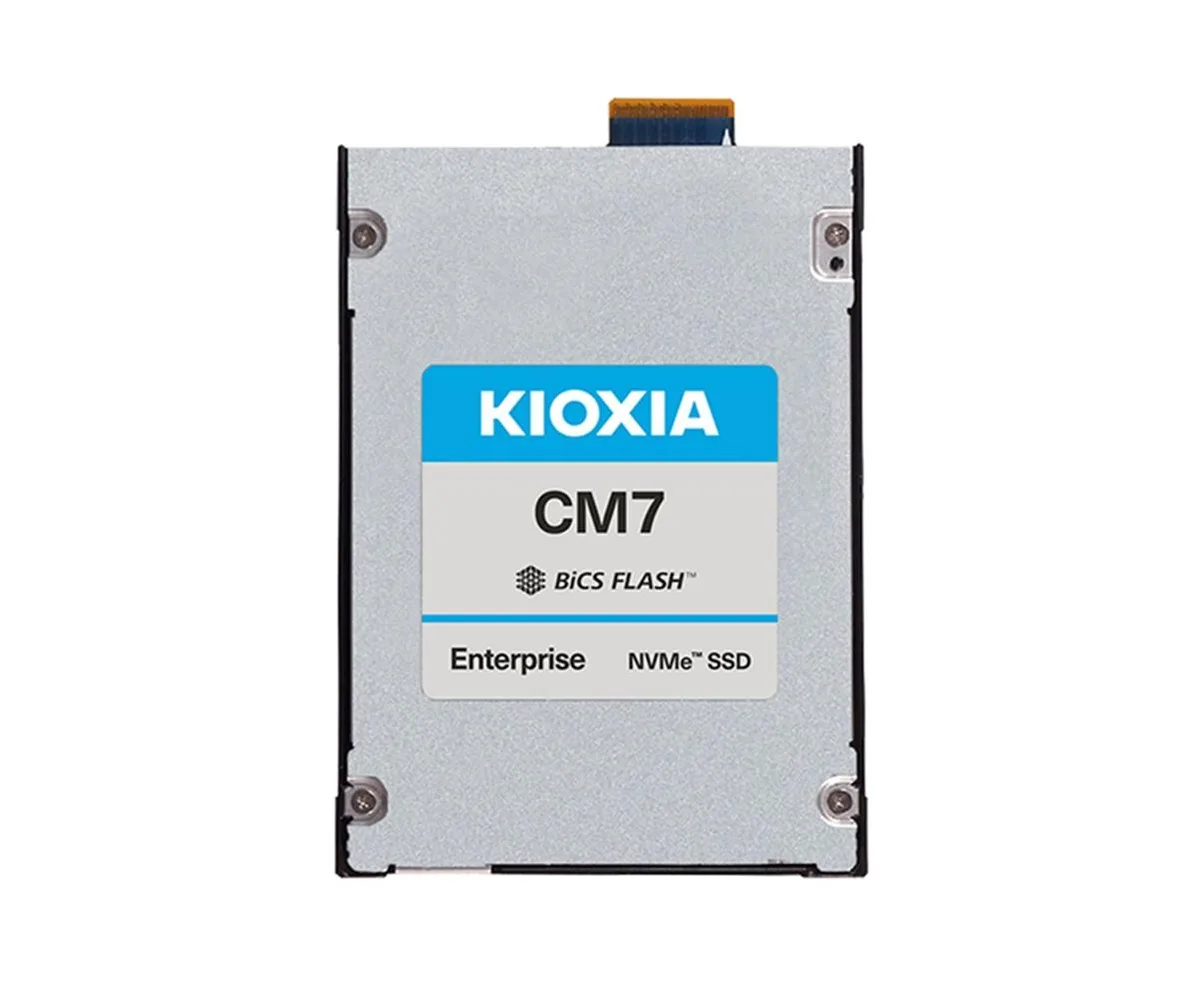

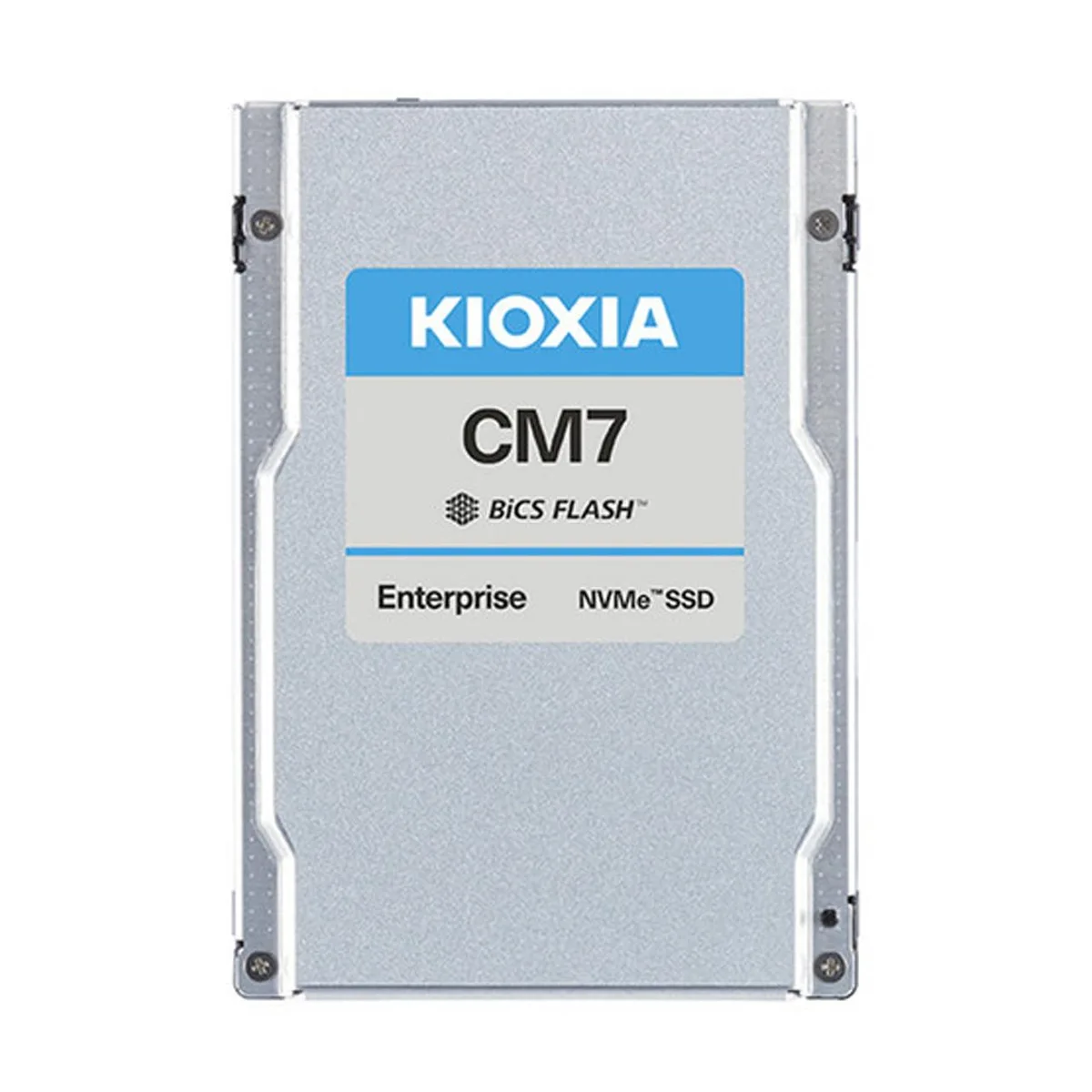

Rectangular 2.5 inch SSD with 15 mm thickness

Kioxia

Kioxia KCM7XRJE1T92 CM7-R 1.92TB internal SSD

SKU CH-X1E7-EKQNH

A 1.92 TB enterprise NVMe SSD with 2.5-inch 15 mm form factor, PCIe 5.0 interface, 112-layer 3D TLC, 1 DWPD endurance, and dual-port high-availability design

  • Device TypeInternal Solid State Drive (SSD)
  • Read-intensive enterprise SSD with 1 DWPD endurance
  • PCIe 5.0 NVMe 2.0 interface delivers up to 2,700K random read IOPS
  • 112-layer BiCS FLASH 3D TLC with proprietary Kioxia controller
  • Dual-port U.3 design for high-availability deployments
  • Power loss protection and end-to-end data protection included

Enterprise Read-Intensive SSD

The Kioxia CM7-R is a 1.92 TB internal solid-state drive built for read-intensive enterprise workloads such as business intelligence, online transaction processing and software-defined storage. It uses a proprietary controller and 112-layer BiCS FLASH 3D TLC to deliver up to 2,700K random read IOPS and 310K random write IOPS with 1 DWPD endurance.

Dual-Port U.3 Installation

The drive conforms to the SFF-TA-1001 U.3 specification and fits a 2.5-inch, 15 mm bay. Its dual-port design supports high-availability configurations, but both ports must be connected to compatible backplanes and the system firmware must recognise the dual-port topology before the drive will operate correctly.

PCIe 5.0 Platform Check

Verify that the host platform provides a PCIe 5.0 x4 link and NVMe 2.0 support, as the drive is compliant with both specifications. Ensure the chassis can accommodate a 2.5-inch, 15 mm device and that the backplane supplies sufficient power for the drive’s power-loss protection and end-to-end data-protection features.

Highlights

  • Read-intensive enterprise SSD with 1 DWPD endurance
  • PCIe 5.0 NVMe 2.0 interface delivers up to 2,700K random read IOPS
  • 112-layer BiCS FLASH 3D TLC with proprietary Kioxia controller
  • Dual-port U.3 design for high-availability deployments
  • Power loss protection and end-to-end data protection included

Specifications

Device TypeInternal Solid State Drive (SSD)

Questions about this item

How do I confirm the drive is performing correctly after installation?

Check the SMART attributes with a tool such as nvme-cli; the media and data integrity errors should remain at zero and the temperature should stay within the vendor limits during a sustained read workload.

What comes in the box and what must I source separately?

The package contains the 1.92 TB CM7-R SSD in a 2.5-inch, 15 mm U.3 form factor; a compatible U.3 backplane, PCIe 5.0 cabling and a power-loss-protection capacitor module are not included.

Which capacity version should I choose for a read-intensive workload?

The 1.92 TB model delivers 1 DWPD endurance and up to 2,700K random read IOPS; select a larger capacity from the CM7-R line only if your application requires more than 1.92 TB of addressable space.
