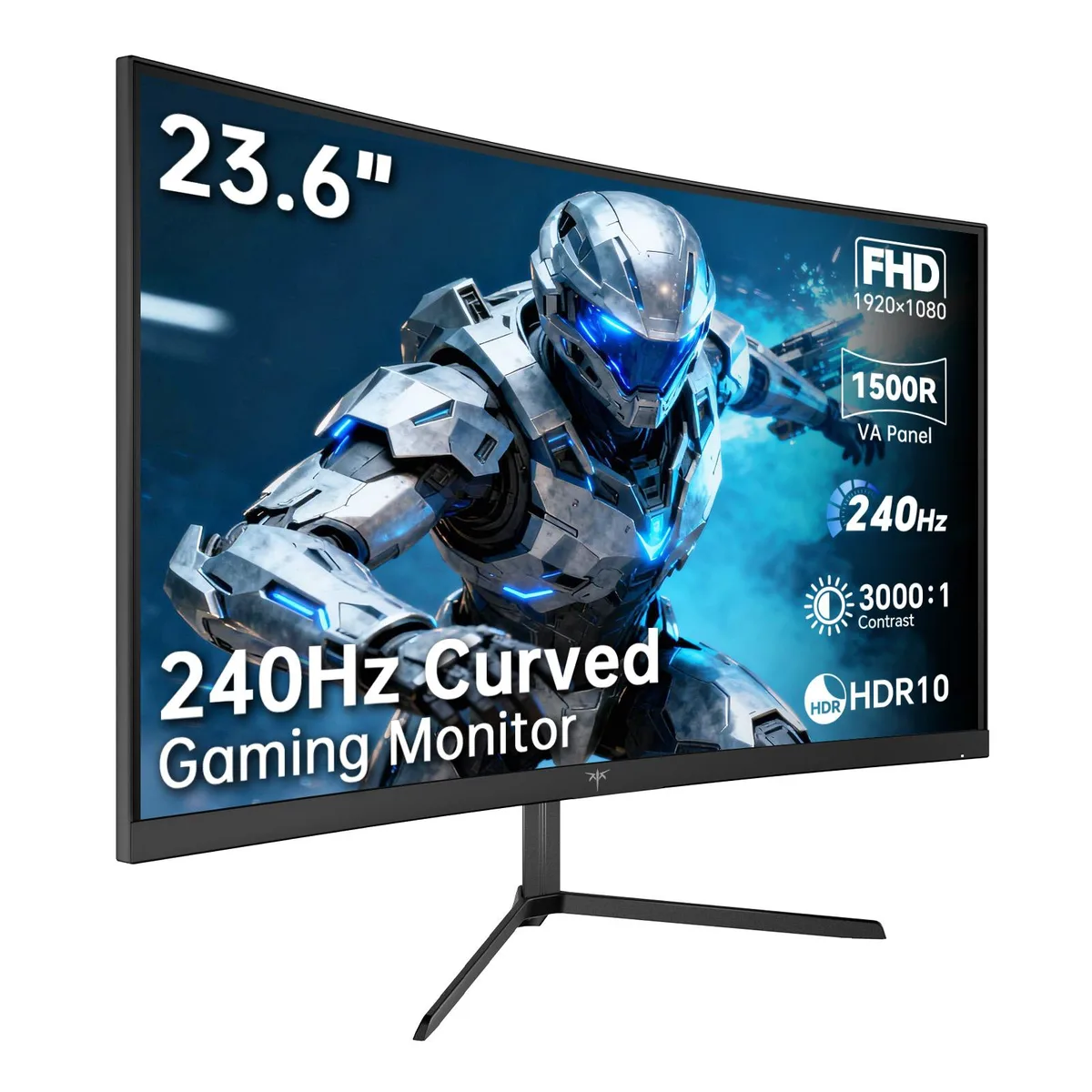

KTC H24S17P 23.6" 240Hz Curved Gaming Monitor
A 23.6 inch 1500R curved VA panel delivers 240Hz FHD gaming with 3000:1 contrast, 350 cd/m² brightness and 106% sRGB coverage, plus Adaptive-Sync, HDMI 2.0, DP 1.4 and tilt-adjustable VESA mounting
- Screen Size23.6"
- Refresh Rate240Hz
- Resolution1920 x 1080
- Display Colors16.7 Million
- PanelVA
- Aspect Ratio16:9
- 240 Hz refresh rate sharpens fast motion
- 1500R curvature wraps the 23.6" screen for immersive view
- 3000:1 contrast ratio deepens blacks in dark scenes
- Flicker-free panel with low blue light eases eye strain during long sessions
- HDMI 2.0 and DP 1.4 ports plus 100 mm VESA mount enable flexible setup
23.6" 240Hz Curved Gaming Monitor
The KTC H24S17P is a 23.6-inch curved gaming monitor built around a VA panel with a 1500R curvature. It targets competitive players who want a 240Hz refresh rate at FHD 1920 x 1080 resolution. The 16:9 aspect ratio and matte finish suit fast-paced shooters and everyday entertainment alike.
Thermals Noise and Power
As a display panel the monitor runs silently with no moving parts to generate audible noise. Typical power draw stays modest for a 350 cd/m² backlight and 240Hz operation. Heat dissipates passively through the chassis so the unit remains comfortable to touch during long sessions.
Build Connectors and Mounting
The stand provides -5° to 15° tilt adjustment for ergonomic positioning. A 100 x 100 mm VESA pattern allows wall or arm mounting without extra brackets. Video inputs include two HDMI 2.0 ports and one DP 1.4 port alongside a single USB 2.0 connector for peripheral pass-through.
Highlights
- 240 Hz refresh rate sharpens fast motion
- 1500R curvature wraps the 23.6" screen for immersive view
- 3000:1 contrast ratio deepens blacks in dark scenes
- Flicker-free panel with low blue light eases eye strain during long sessions
- HDMI 2.0 and DP 1.4 ports plus 100 mm VESA mount enable flexible setup
Specifications
| Screen Size | 23.6" |
|---|---|
| Refresh Rate | 240Hz |
| Resolution | 1920 x 1080 |
| Display Colors | 16.7 Million |
| Panel | VA |
| Aspect Ratio | 16:9 |
| Curved Surface Screen | Curved |
| Brightness | 350 cd/m2 |
| Contrast Ratio | 3000:1 |
| Maximum Resolution | 1920 x 1080 |
| Vertical Refresh Rate | 240 hertz |
| Display Type | FHD |
| OLED | LCD |
| Panel Finish | Matte |
| Color Gamut | sRGB 99% |
| HDR Standard | HDR10 |
| Brand | KTC |
| Model | H24S17P |
| USB 2.0 | 1 |
| HDMI | 2 |
| DisplayPort | 1 x DisplayPort 1.4 |
| Features | Blue Light Filter, HDR 10, 240 hertz, 1 milliseconds, Gaming |
Questions about this item
How do I mount the H24S17P on a VESA arm and which step is often missed?
Attach the 100mm×100mm VESA bracket to the arm first, then fasten the four M4 screws into the monitor — people often forget to remove the stand neck before mounting.
What part of the H24S17P will need replacement first after heavy daily use?
The LED backlight driving the 350 cd/m² panel is the component most likely to degrade over years of continuous operation.
Which limit appears first when the H24S17P runs at 240Hz for long sessions?
Sustained 240Hz output can push the VA panel’s response time, making dark-level smearing the first visible limitation.
