KuWfi

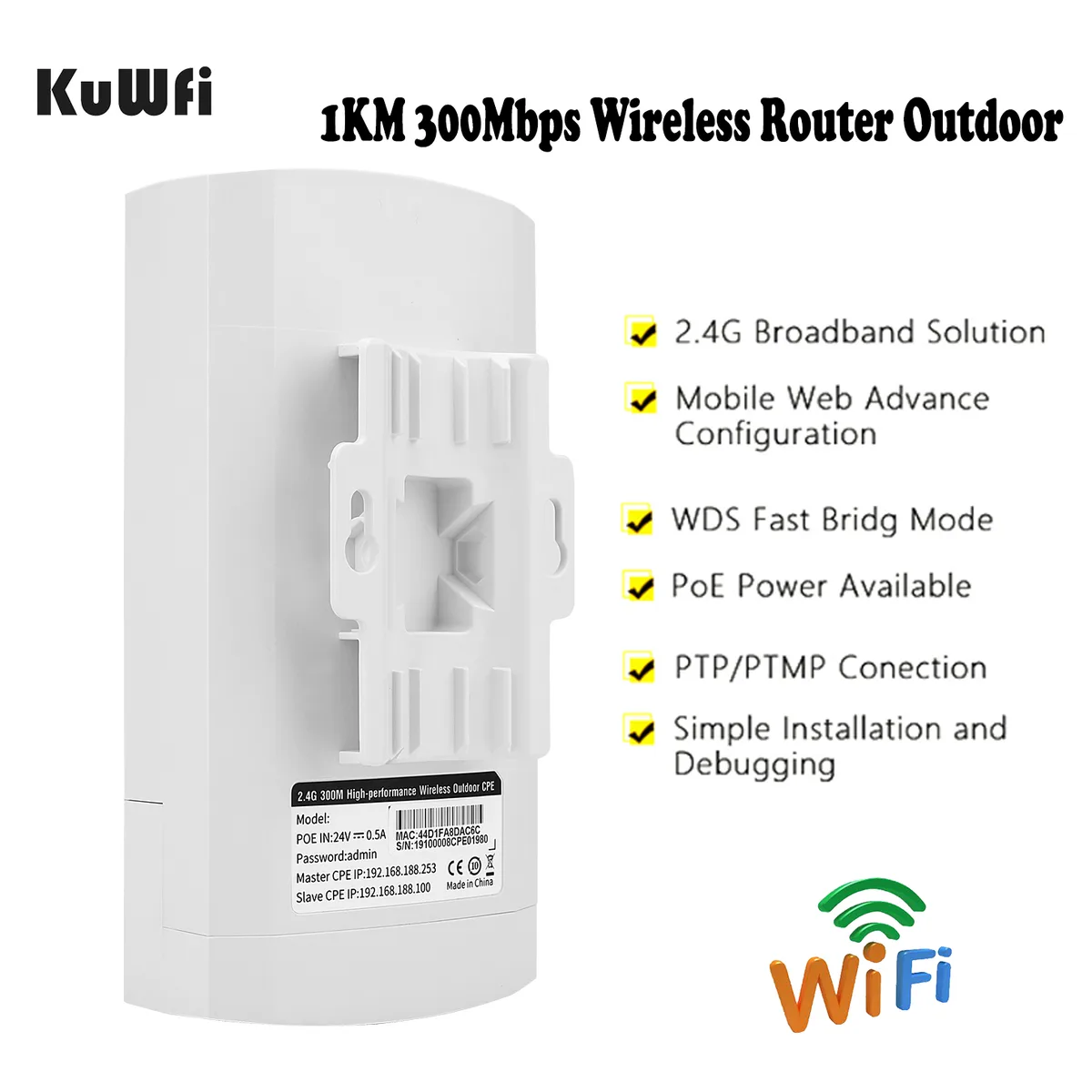

KuWfi CPE70R US Wireless Router 2.4G 300Mbps 11dBi
Point-to-point wireless bridge kit with two 2.4 GHz 300 Mbps units, each using an 11 dBi panel antenna and PoE power
- StandardsIEEE 802.11b/g/n
- Security64/128-bit WEP security, 128bit WPA (TKIP/AES) security
- WPAWPA
- WAN Ports1 * 10/100Mbps RJ45 WAN Port
- LAN Ports1 * 10/100Mbps RJ45 LAN Port
- LEDsPWR(Power), WAN, LAN, Wi-Fi
- Long-range outdoor link with 11dBi panel antenna
- 300 Mbps 2.4 GHz throughput for stable PTP bridges
- Pre-programmed WDS for instant point-to-point setup
- Weather-resistant enclosure rated for indoor and outdoor use
- 24 V passive PoE simplifies single-cable installation
Purpose and audience
The KuWfi CPE70R US is a 2.4 GHz wireless bridge kit built for point-to-point or point-to-multipoint links. It suits installers who need a pre-paired WDS connection between buildings without running cable.
Build integration

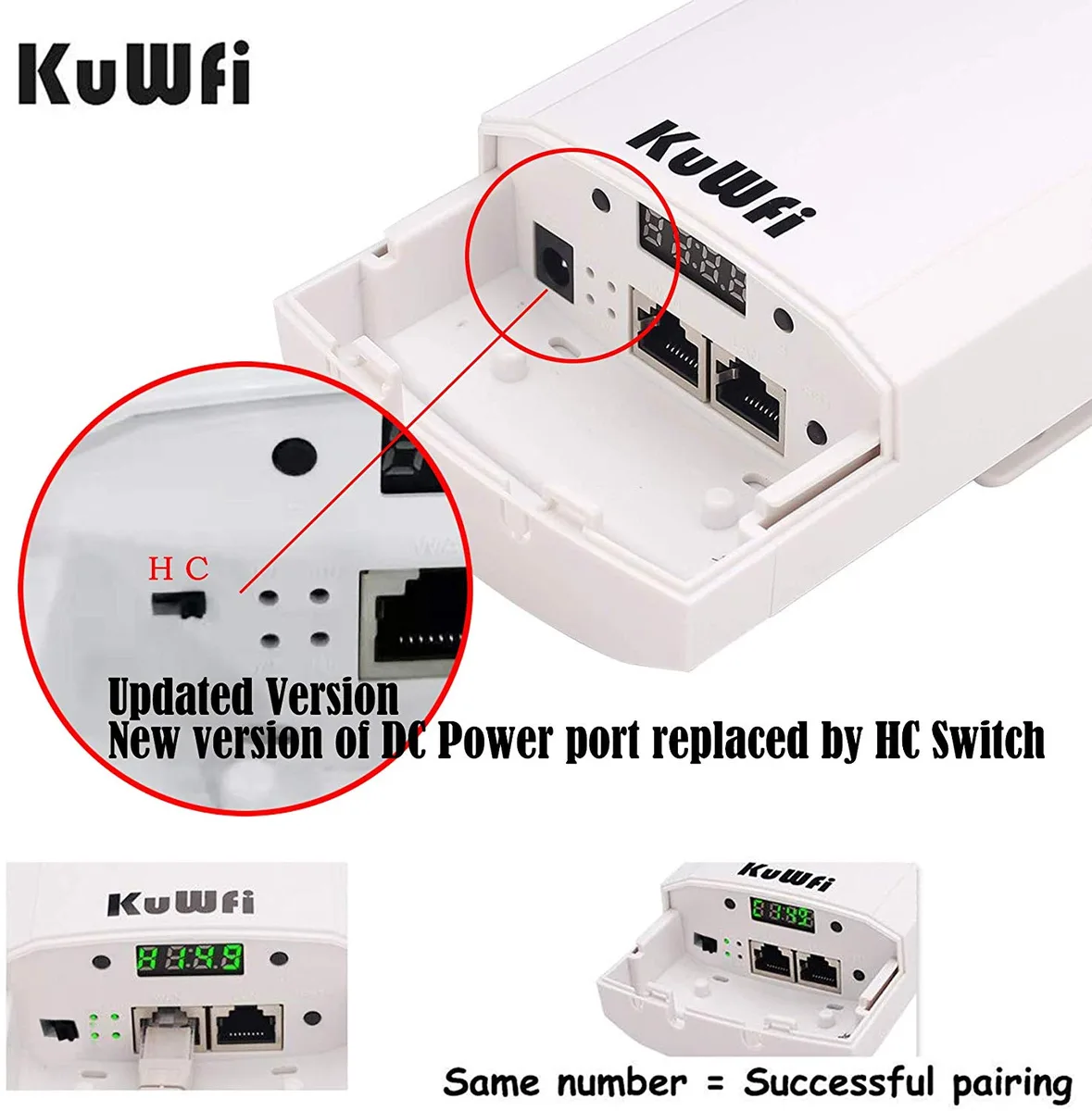

Each unit draws power through a 24 V passive PoE injector and provides one 10/100 Mbps WAN port and one 10/100 Mbps LAN port. The 11 dBi panel antenna with a 60° vertical and 33° horizontal beamwidth focuses signal for long-range outdoor alignment. A web-based interface and LED display show channel, signal strength and operation mode for on-site setup.
Suitability and limits
This kit fits projects that need a simple transparent bridge at up to 300 Mbps PHY rate on 802.11n. Buyers who require gigabit Ethernet ports, 5 GHz operation, or mesh roaming between multiple indoor access points should look elsewhere.
Highlights
- Long-range outdoor link with 11dBi panel antenna
- 300 Mbps 2.4 GHz throughput for stable PTP bridges
- Pre-programmed WDS for instant point-to-point setup
- Weather-resistant enclosure rated for indoor and outdoor use
- 24 V passive PoE simplifies single-cable installation
Specifications
| Brand | KuWfi |
|---|---|
| Model | CPE70R US |
| Standards | IEEE 802.11b/g/n |
| Security | 64/128-bit WEP security, 128bit WPA (TKIP/AES) security |
| WPA | WPA |
| WAN Ports | 1 * 10/100Mbps RJ45 WAN Port |
| LAN Ports | 1 * 10/100Mbps RJ45 LAN Port |
| LEDs | PWR(Power), WAN, LAN, Wi-Fi |
Questions about this item
How far can the 11dBi panel antenna maintain a 300Mbps link before signal loss becomes the limiting factor?
The 11dBi panel antenna with 60° vertical and 33° horizontal beamwidth is designed for long-range point-to-point or point-to-multipoint links, but the maximum distance at full 300Mbps depends on line-of-sight clarity and interference.
What are the heat and power characteristics when the CPE70R runs continuously on 24V 0.5A PoE?
The unit draws 24V at 0.5A via passive PoE, consuming around 12W; with no active cooling, it relies on the metal enclosure for passive heat dissipation during 24/7 operation.
Which existing network equipment is required to power and manage this CPE70R out of the box?
You need a 24V 0.5A passive PoE injector or compatible switch, plus a router or controller with an Ethernet port for the 10/100Mbps LAN connection and web-based configuration access.
