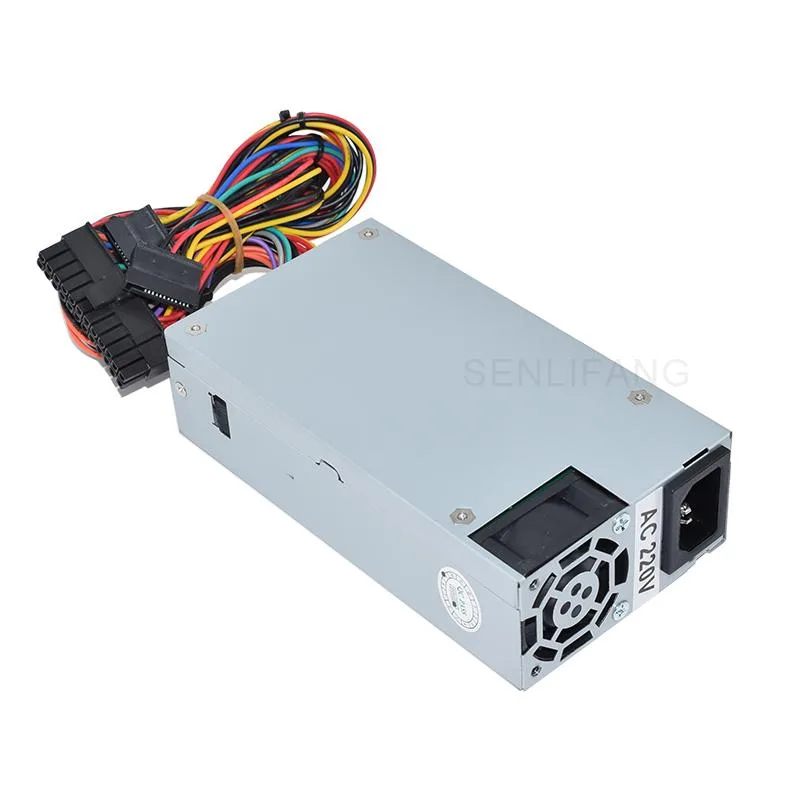

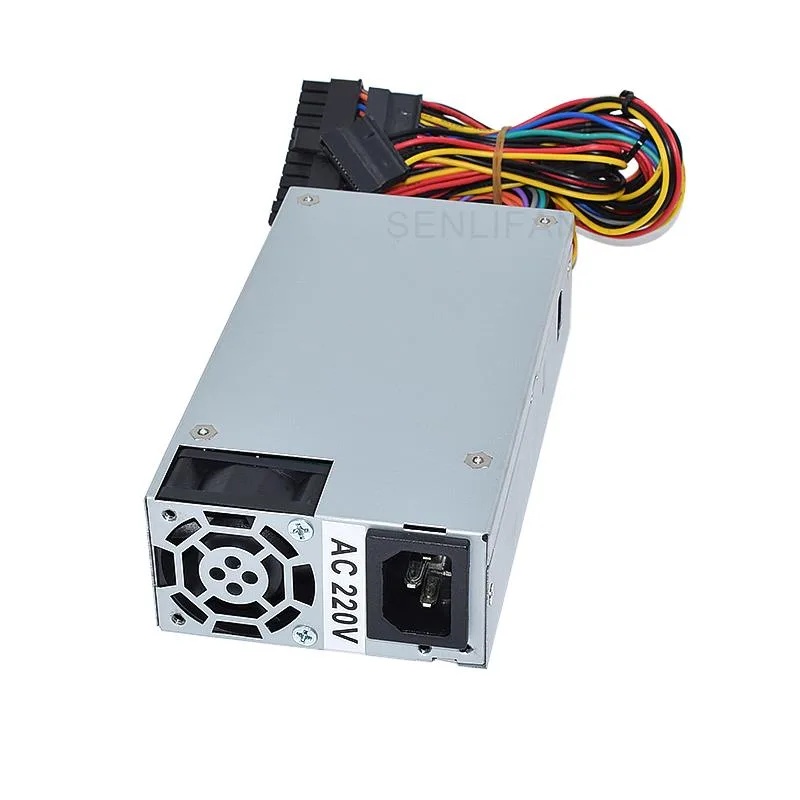

Rectangular silver 1U server PSU with single fan and 20+4 pin connector

Lemincrash

Lemincrash FSP270-60LE 270W server power supply 20+4pin 220V 1U

SKU CH-PYY0-ZVVJ5

A 270 W server power supply with 20+4 pin main connector, 24 pin plus 4 pin plus two SATA and two IDE cables, single silent fan, and full protection suite for 1U low-power equipment

  • Maximum Power270W
  • Main Connector20+4Pin
  • Input Voltage220C
  • Input Frequency Range50/60 Hz
  • FeaturesNew
  • Dimensions15CM *8.15CM 4.1CM
  • Delivers 270W peak power for demanding server loads
  • 80 Plus series efficiency reduces energy waste and heat
  • Compact 1U form factor fits 15cm x 8.15cm x 4.1cm bays
  • Comprehensive protection suite guards against voltage and current faults
  • Single silent fan maintains airflow with minimal noise

270 W server power supply for 1U NAS

The Lemincrash FSP270-60LE delivers a rated 200 W with a 270 W peak for 1U rackmount and low-power NAS builds. It accepts 220 V AC at 50/60 Hz and fits a standard 1U chassis. The unit is new and carries 80 Plus series certification.

15 cm deep Flex form factor

The enclosure measures 15 cm by 8.15 cm by 4.1 cm and weighs 600 g, using a single silent fan for cooling. Cabling includes a 24-pin main connector, a 4-pin auxiliary connector, two SATA connectors and two IDE parallel connectors. Protections cover overvoltage, undervoltage, overload, overcurrent and short circuit.

Replaces older 200–270 W 1U PSUs

Builders moving from units that lack SATA power or that only offer a 20-pin main connector gain the 20+4 pin layout and two SATA leads here. The jump is worth it when the existing supply cannot support current drive counts or when the 12 V rails need 16 A and 10 A respectively. It is not for systems requiring higher wattage or additional PCIe power connectors.

Highlights

  • Delivers 270W peak power for demanding server loads
  • 80 Plus series efficiency reduces energy waste and heat
  • Compact 1U form factor fits 15cm x 8.15cm x 4.1cm bays
  • Comprehensive protection suite guards against voltage and current faults
  • Single silent fan maintains airflow with minimal noise

Specifications

BrandLemincrash
Series80 Plus
ModelFSP270-60LE
Maximum Power270W
Main Connector20+4Pin
Input Voltage220C
Input Frequency Range50/60 Hz
FeaturesNew
Dimensions15CM *8.15CM 4.1CM
Weight600g
Package ContentsPSU*1

Questions about this item

Does the 20+4-pin main connector follow the 24-pin ATX standard so it fits a typical motherboard?

Yes, the 20+4-pin connector combines to a 24-pin ATX plug and is listed alongside two SATA and two IDE ports.

Will this 1U supply fit in a standard rack-mount chassis?

The unit measures 15 cm by 8.15 cm by 4.1 cm, matching a 1U form factor for built-in installation.

What is the correct way to connect the 12 V rails during installation?

The label shows +12V1 at 16 A and +12V2 at 10 A; both must be wired to the motherboard and drive cables, not left unused.
