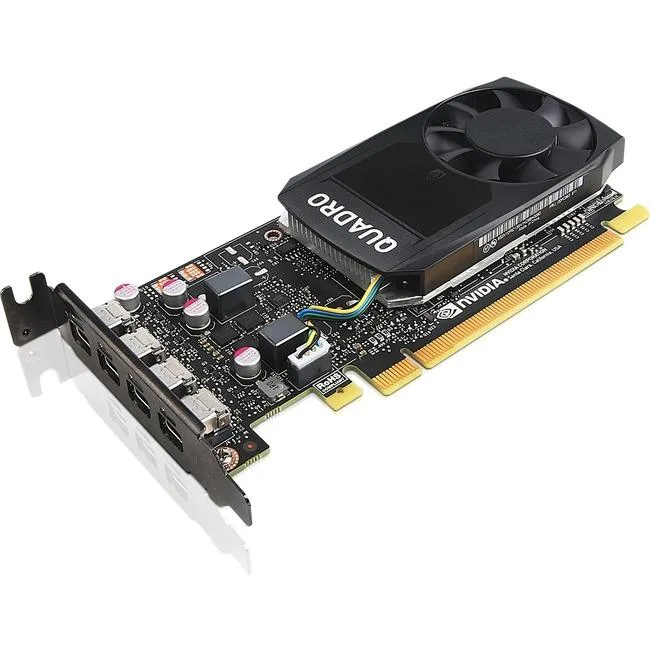

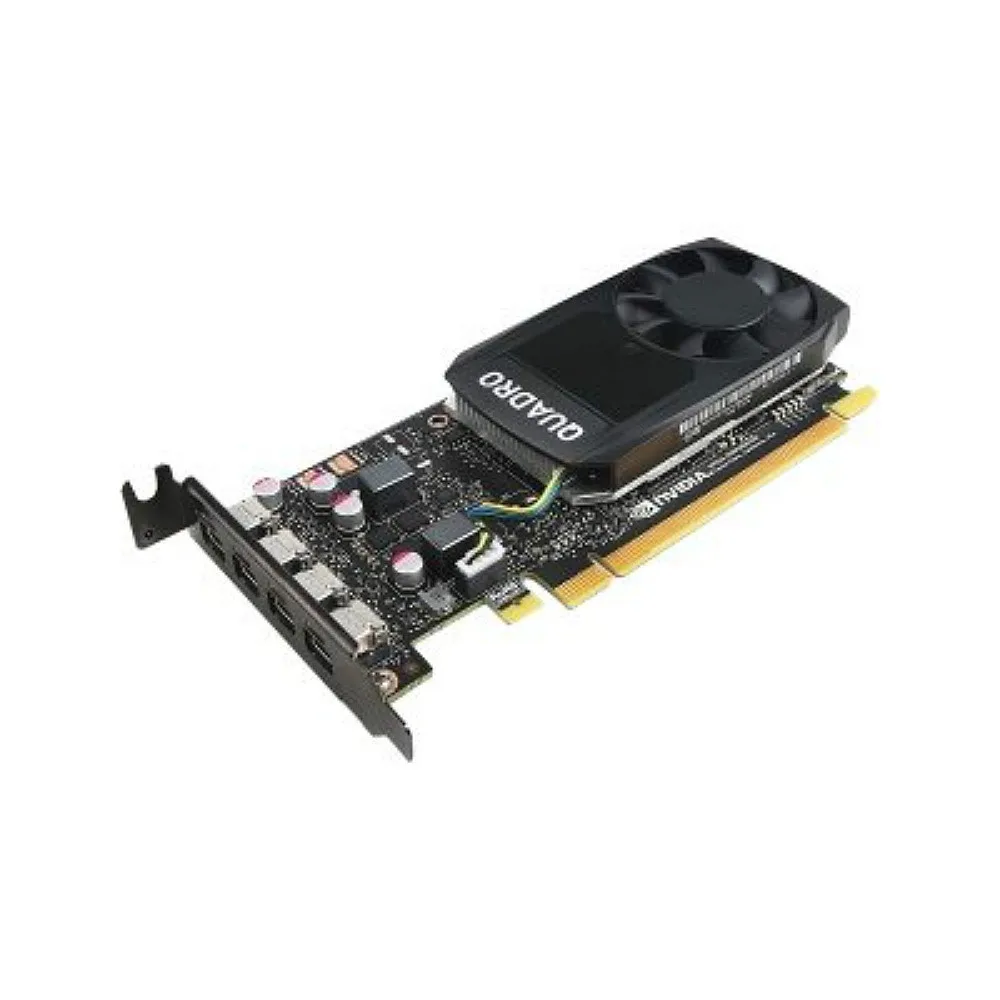

Lenovo Quadro P1000 graphics card, low-profile bracket, four Mini DisplayPort outputs

Lenovo

Lenovo 4X60N86660 Quadro P1000 4GB GDDR5 graphics card

SKU CH-WDHS-YK2AD MPN 4X60N86660

Low-profile card with 4 GB GDDR5 memory and 47 W TDP fits slim workstations for professional CAD and visualisation

  • InterfacePCI Express 3.0 x16
  • Memory TypeGDDR5
  • Thermal Design Power47W
  • Max GPU Length145 mm
  • Professional CAD and DCC workflows accelerated by Nvidia Pascal GPU
  • Four Mini DisplayPort outputs drive multiple high-resolution displays
  • Low-profile bracket fits ThinkStation Slim form-factor systems
  • 4 GB GDDR5 memory handles large models and textures
  • 47 W power draw keeps thermal load low

Lenovo Quadro P1000 4GB GDDR5 for CAD

This Lenovo Quadro P1000 graphics card delivers 4GB of GDDR5 memory over a PCI Express 3.0 x16 interface. It targets professional CAD, DCC and visualisation workloads in ThinkStation Slim form factor systems. The 47W thermal design power suits compact workstations with limited cooling headroom. A low-profile bracket is included for direct installation.

Upgrade from integrated graphics for 3D workflows

The card replaces integrated graphics or older entry GPUs when 3D applications demand dedicated video memory and certified drivers. The jump is worth it when viewport performance or GPU-accelerated rendering becomes a daily bottleneck. Pascal architecture provides the compute base for those professional applications. Max GPU length of 145 mm fits the Slim chassis constraint.

Low-profile bracket eases Slim chassis fit

Installation uses the supplied low-profile bracket to match ThinkStation Slim slots. The 145 mm length clears the tight internal space without cable interference. Common issues arise when the supplemental power connector is missed or the bracket screws are over-tightened. Verify the PCIe x16 slot is wired for full electrical width before seating the card.

Highlights

  • Professional CAD and DCC workflows accelerated by Nvidia Pascal GPU
  • Four Mini DisplayPort outputs drive multiple high-resolution displays
  • Low-profile bracket fits ThinkStation Slim form-factor systems
  • 4 GB GDDR5 memory handles large models and textures
  • 47 W power draw keeps thermal load low

Specifications

BrandLenovo
InterfacePCI Express 3.0 x16
Memory TypeGDDR5
Thermal Design Power47W
Max GPU Length145 mm
Shipping weight0.91 kg
Package size260 × 165 × 85 mm

Questions about this item

What clearance does the 145 mm board need inside a ThinkStation Slim chassis?

The card measures 145 mm long and ships with a low-profile bracket designed for ThinkStation Slim form-factor machines.

Which slot and power limit apply when seating the PCI Express 3.0 x16 interface?

Insert the card into a full-size PCIe 3.0 x16 slot; the 47 W thermal design power draws all required power from the slot — no auxiliary connector is needed.

When should the Quadro P1000 4GB GDDR5 be replaced for professional CAD workloads?

Plan replacement when driver support for the Pascal architecture ends or when 4 GB GDDR5 memory becomes a bottleneck for your dataset size.
