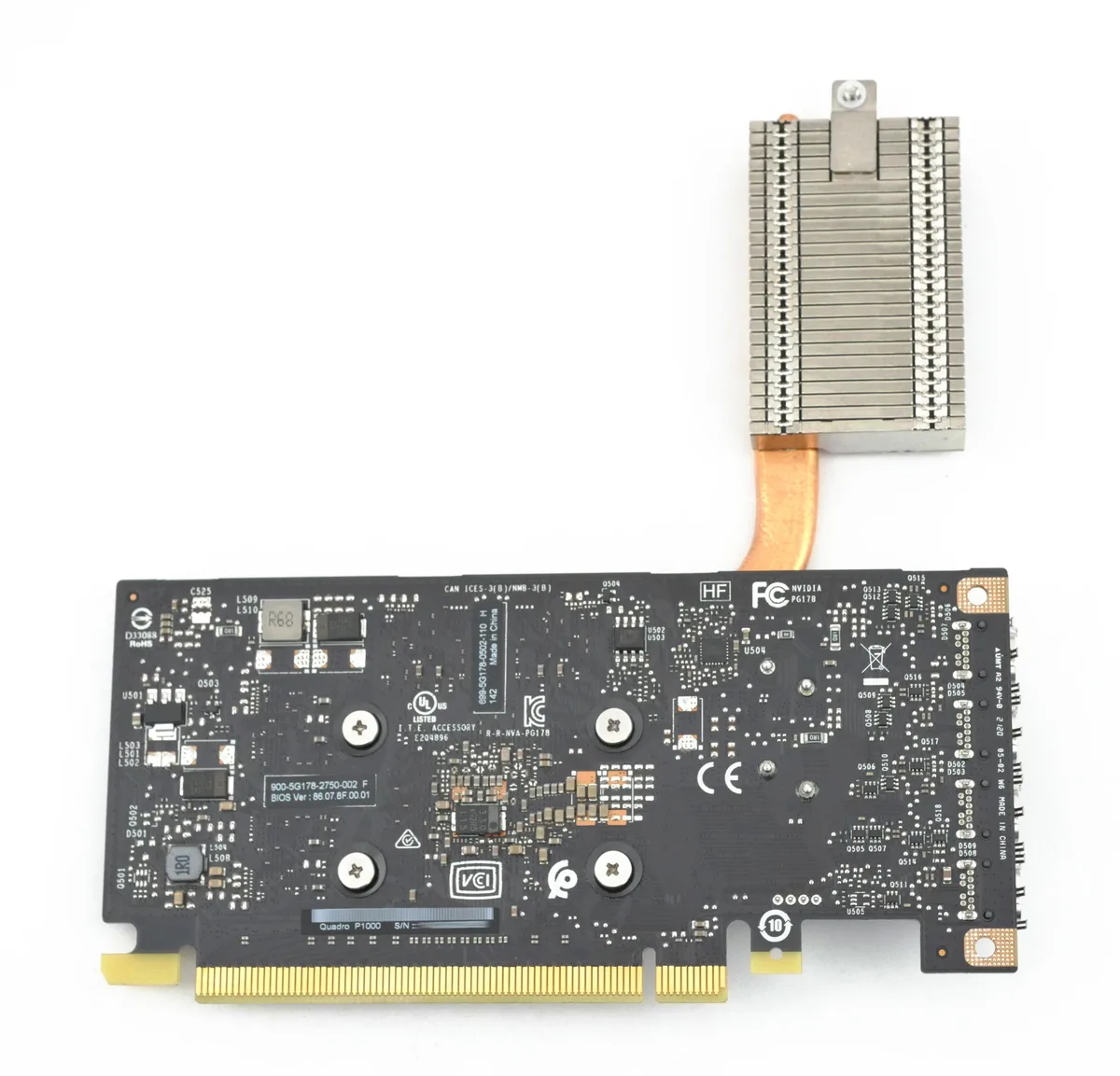

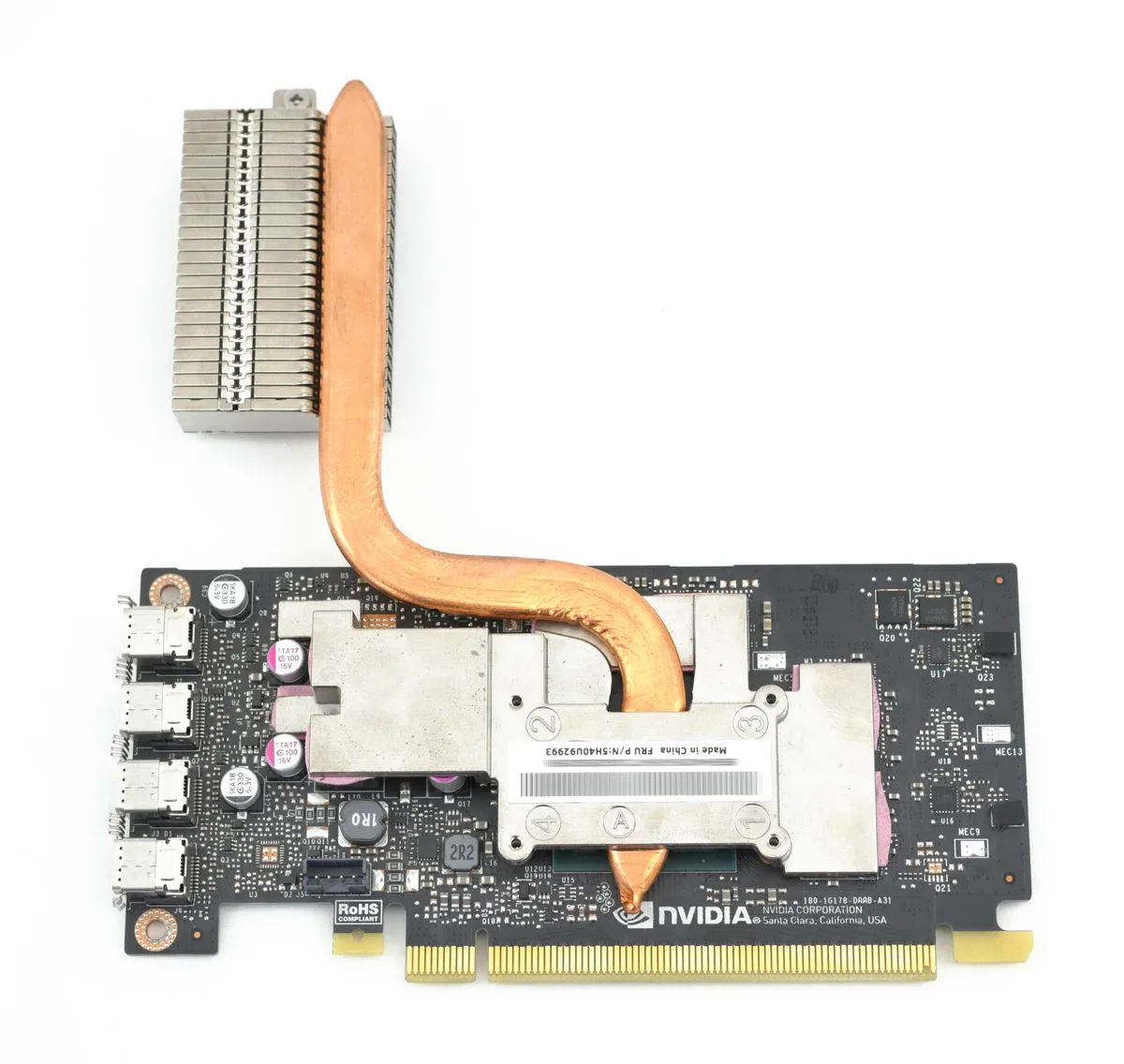

Lenovo NVIDIA P1000 graphics card with heatsink and four mini DisplayPort connectors

Lenovo

Lenovo 5.1 NVIDIA P1000 4GB GDDR5 graphics card

SKU CH-SN6Z-T5RF1 MPN 5.1

Low-profile NVIDIA P1000 with 4 GB GDDR5, 640 CUDA cores and four miniDP 1.4 outputs for up to four 4K or 5K displays

  • Memory TypeGDDR5
  • 4 GB GDDR5 memory for professional workloads
  • 640 CUDA cores accelerate compute tasks
  • PCI Express 3.0 x16 interface fits supported systems
  • Four mini DisplayPort 1.4 outputs drive four 4K displays
  • Designed for Lenovo Tiny M90q P340 P360 with heatsink included

Lenovo NVIDIA P1000 4GB GDDR5 for Tiny workstations

This low-profile graphics card is built for the Lenovo Tiny M90q, P340 and P360 chassis. It delivers professional visual computing in a compact form factor that fits the restricted space of those systems. The included heatsink ensures thermal performance without a bulky cooler.

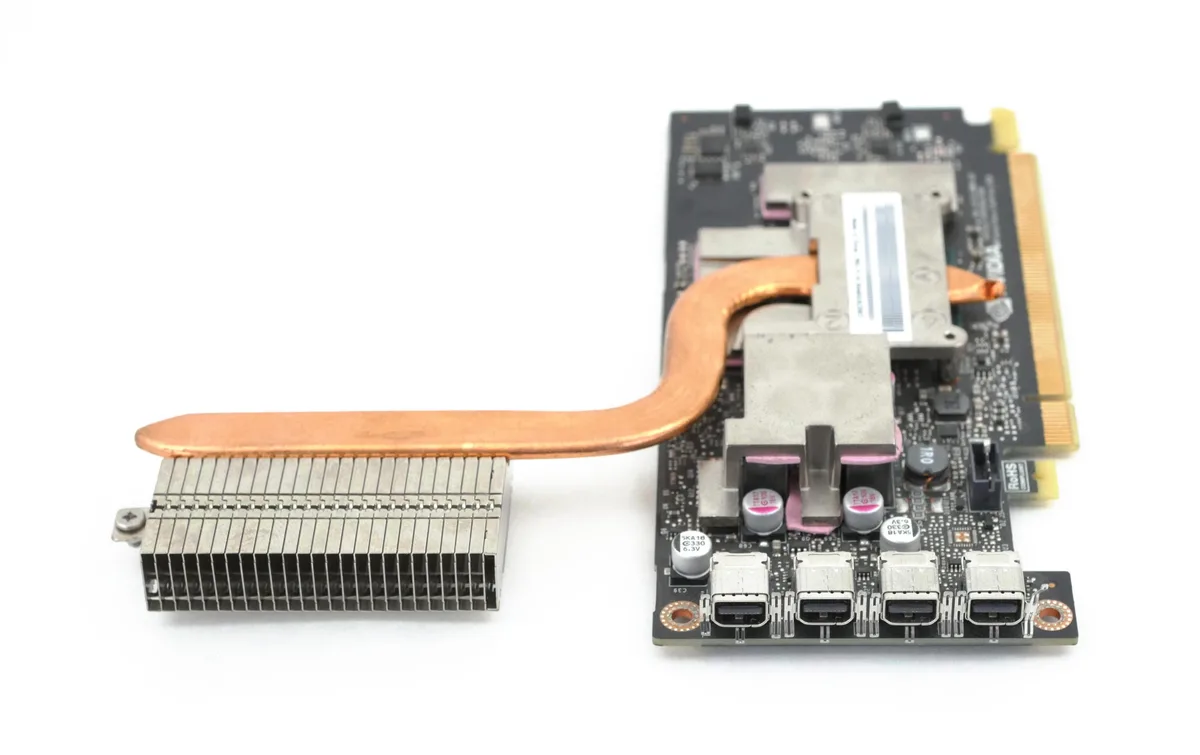

Four mini DisplayPort 1.4 outputs and PCIe 3.0 x16

The card connects through a standard PCI Express 3.0 x16 slot and provides four miniDP 1.4 ports. Each port can drive a 4096x2160 or 5120x2880 display at 60 Hz, supporting up to four simultaneous monitors directly or through Multi-Stream Transport. The small connectors keep cable routing tidy inside tight enclosures.

Upgrade from integrated graphics for multi-display

Replacing integrated graphics with the 640 CUDA core P1000 adds hardware acceleration for DirectX 12.0, Vulkan 1.0, OpenGL 4.5 and compute workloads via CUDA, DirectCompute and OpenCL. The jump is worth it when you need four high-resolution displays or GPU-accelerated professional applications in a Tiny workstation.

Highlights

  • 4 GB GDDR5 memory for professional workloads
  • 640 CUDA cores accelerate compute tasks
  • PCI Express 3.0 x16 interface fits supported systems
  • Four mini DisplayPort 1.4 outputs drive four 4K displays
  • Designed for Lenovo Tiny M90q P340 P360 with heatsink included

Specifications

Memory TypeGDDR5

Questions about this item

What PCI Express version and lane width does the P1000 use, and what bandwidth does that provide in practice?

The card runs on a PCI Express 3.0 x16 link, giving up to 16 GT/s per lane for host communication.

What physical space and mounting does the card need inside a Lenovo Tiny M90q, P340 or P360?

It is a low-profile card with an included heatsink designed to fit the proprietary Tiny chassis slot and bracket.

How do you install the card in a Tiny system, and which step is most often missed?

Remove the chassis cover, insert the card into the dedicated PCIe slot, then secure the heatsink screws to the board — the screw step is frequently skipped.
