Black 16.0 inch ThinkPad P1 Gen 4 mobile workstation with matte anti-glare display

Lenovo

Lenovo ThinkPad P1 Gen 4 Xeon W-11855M 32GB 1TB RTX A2000 16.0" 2560x1600 business laptop 20Y4S2NM00

SKU CH-XZ8X-XKVC9 MPN 20Y4S2NM00

16-inch WQXGA IPS display with 400-nit anti-glare panel, 6-core Xeon processor, 32 GB DDR4 memory, 1 TB SSD and RTX A2000 graphics for professional workloads

  • ColorBlack
  • Other FeaturesSecurity Chip: Discrete TPM 2.0 Fingerprint Reader: Touch St
  • Operating SystemWindows 11 DG Windows 10 Pro 64 for Workstations
  • CPU TypeIntel Xeon
  • Processor NameIntel Xeon W-11855M
  • Number of Cores6-core Processor
  • ECC-capable Xeon W-11855M processor ensures data integrity for critical workloads
  • 32 GB DDR4 3200 memory handles large datasets and multitasking smoothly
  • 1 TB PCIe SSD provides fast storage access for projects and applications
  • NVIDIA RTX A2000 with 4 GB video memory accelerates professional 3D and rendering tasks
  • 0" WQXGA IPS display at 400 nits covers 100% sRGB for colour-accurate work

16.0" WQXGA IPS mobile workstation

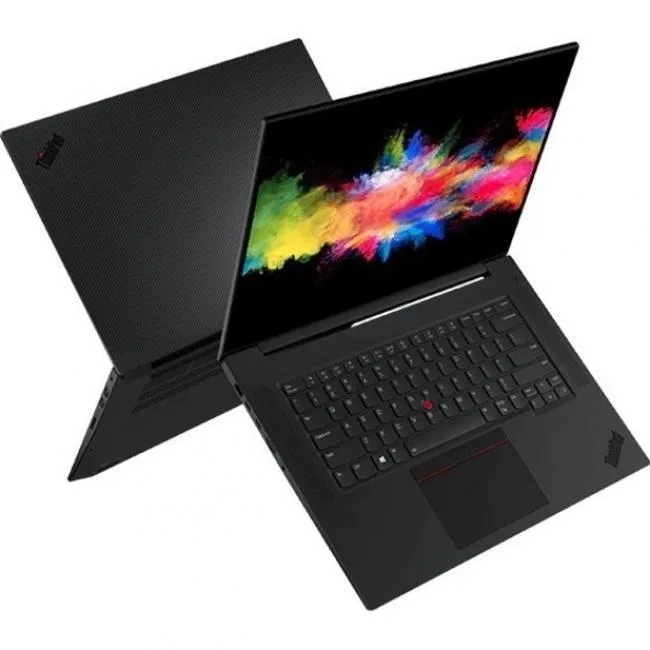

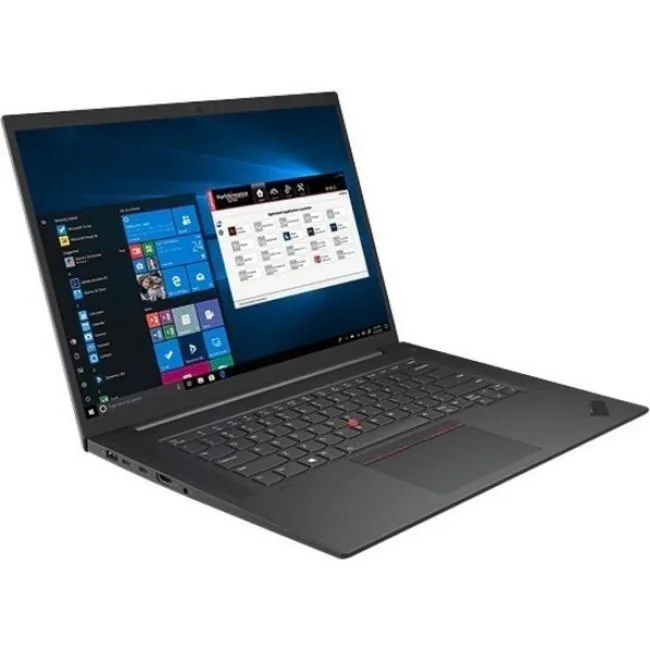

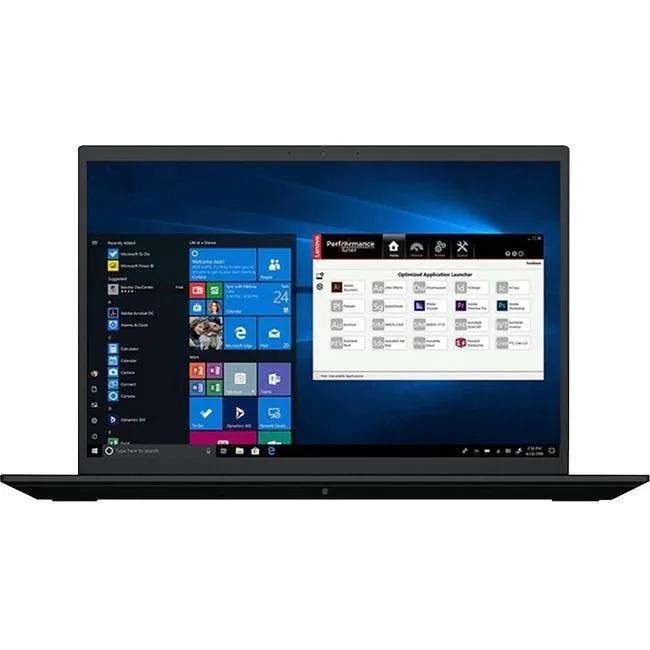

The Lenovo ThinkPad P1 Gen 4 is a 16.0-inch mobile workstation built around an Intel Xeon W-11855M processor with six cores and 18 MB of L3 cache. It ships with 32 GB of DDR4 3200 memory in a single module and a 1 TB PCIe solid-state drive. Graphics are handled by a dedicated NVIDIA RTX A2000 with 4 GB of video memory. The matte IPS panel delivers 2560 x 1600 resolution at 400 nits with full sRGB coverage and low blue light support.

Professionals needing ISV-certified stability

This system suits engineers, designers and analysts who rely on workstation-class drivers and ECC-capable Xeon silicon for CAD, simulation or content-creation workloads. The Thunderbolt 4 ports and single free memory slot allow peripheral expansion and a future upgrade to 64 GB total capacity. Buyers who need more than 64 GB of memory or require multiple GPU configurations should look at larger chassis workstations.

Single-module 32 GB DDR4 3200 with one open slot

Memory ships as one 32 GB DDR4 3200 module occupying one of two slots, leaving the second slot free for a straightforward upgrade to the 64 GB maximum supported by the platform. This configuration matters because dual-channel bandwidth is not active until the second slot is populated, so performance-sensitive users should plan to add a matching module.

Highlights

  • ECC-capable Xeon W-11855M processor ensures data integrity for critical workloads
  • 32 GB DDR4 3200 memory handles large datasets and multitasking smoothly
  • 1 TB PCIe SSD provides fast storage access for projects and applications
  • NVIDIA RTX A2000 with 4 GB video memory accelerates professional 3D and rendering tasks
  • 0" WQXGA IPS display at 400 nits covers 100% sRGB for colour-accurate work

Specifications

BrandLenovo
SeriesThinkPad P1 Gen 4
Model20Y4S2NM00
ColorBlack
Other FeaturesSecurity Chip: Discrete TPM 2.0
Fingerprint Reader: Touch Style, Match-on-Chip
Operating SystemWindows 11 DG Windows 10 Pro 64 for Workstations
CPU TypeIntel Xeon
Processor NameIntel Xeon W-11855M
Number of Cores6-core Processor
CPU L3 Cache18 MB
Screen Size16.0"
TouchscreenNon-Touch Screen
Wide Screen SupportYes
Display TypeWQXGA
PanelIPS
Resolution2560 x 1600
Display FeaturesIPS 400nits Anti-glare, 100% sRGB, Low Blue Light, DC Dimming
GPU/VPUNVIDIA RTX A2000
Video Memory4GB
Graphic TypeDedicated Card
SSD1TB PCIe
HDDNo
Memory32GB
Memory SpeedDDR4 3200
Memory Spec32 GB x 1
Memory Slot (Total)2
Memory Slot (Available)1
Max Memory Supported64 GB
Optical Drive TypeNo
LAN100/1000M (Adapter Needed)
WLAN802.11ax Wireless LAN
BluetoothBluetooth 5.2
USB2 x USB 3.2 Gen 1 (one Always On)
Thunderbolt2 x Thunderbolt 4 / USB4 40Gbps (support data transfer, Power Delivery 3.0 and DisplayPort 1.4a)
Audio Ports1 x Headphone / microphone combo jack (3.5mm)
AudioHigh Definition (HD) Audio, Realtek ALC3306 codec
SpeakerStereo speakers, Dolby Atmos
Backlit KeyboardBacklit
Card ReaderSD Reader
WebcamIR & 1080p with Privacy Shutter
StyleThin and Light
TypeWorkstation
UsageBusiness
AC Adapter/Charger170W Slim Tip (3-pin)
BatteryIntegrated 90Wh
Battery LifeMobileMark 2018: 10.9 hr
JEITA 2.0: 13.7 hr
Dimensions (W x D x H)14.15" x 9.99" x 0.70"
Weight3.99 lbs.
Shipping weight3.18 kg
Package size483 × 381 × 127 mm

Questions about this item

How many SODIMM slots does the ThinkPad P1 Gen 4 have, and how many are free for a memory upgrade?

The laptop has two SODIMM slots in total; one is occupied by the factory 32 GB DDR4 3200 module, leaving one slot free for expansion up to 64 GB maximum.

Which ports on the 20Y4S2NM00 support Thunderbolt 4, and what cable rating is required for 40 Gbps?

Two Thunderbolt 4 / USB4 ports provide 40 Gbps throughput; use a certified Thunderbolt 4 or USB4 40 Gbps cable to achieve full speed.

Is the 1 TB SSD in this model user-replaceable, and what form factor does it use?

The 1 TB PCIe SSD is installed in an M.2 slot and can be replaced by the user with another M.2 PCIe drive.
