Lenovo
Lenovo ThinkPad P71 laptop Xeon E3-1535M 16GB ECC 512GB NVMe + 1TB HDD 17.3" UHD 4K Quadro P3000
A 17.3-inch mobile workstation with a 3840 x 2160 IPS display, Intel Xeon E3-1535M v6 processor up to 4.20 GHz, 16 GB ECC memory, 512 GB NVMe SSD plus 1 TB hard drive, and NVIDIA Quadro P3000 graphics
- ColorBlack
- Other FeaturesFingerprint reader, Secure Chip
- Operating SystemWindows 10 Pro
- CPU TypeIntel Xeon
- Processor NameIntel Xeon E3-1535M v6
- Core NameKaby Lake
- Xeon E3-1535M v6 quad-core reaches 4.20 GHz turbo for demanding workloads
- 3" UHD 4K IPS panel at 3840 x 2160 gives precise colour detail
- NVIDIA Quadro P3000 6GB GPU drives professional 3D and rendering tasks
- 512 GB NVMe SSD plus 1 TB HDD combine fast boot with large capacity
- 16 GB ECC RAM protects data integrity during critical computations
Mobile workstation with Xeon E3-1535M v6
The Lenovo ThinkPad P71 is a 17.3-inch mobile workstation built for professional workloads. It runs on an Intel Xeon E3-1535M v6 quad-core processor reaching 4.20 GHz turbo frequency. The system includes 16 GB of DDR error-correcting memory and a dual-drive layout with a 512 GB PCIe NVMe SSD plus a 1 TB hard drive. Graphics are handled by an NVIDIA Quadro P3000 GPU with 6 GB of video memory.
Suited for ISV-certified apps.
This machine targets engineers and creators running ISV-certified applications that benefit from ECC memory and Quadro drivers. The UHD 4K IPS panel at 3840 x 2160 resolution supports colour-critical work with Pantone validation. Buyers who require a second GPU or who need more internal drive bays than the factory configuration provides should consider a different platform. The fingerprint reader and smart card reader add hardware-level security for enterprise environments.
Quadro P3000 6 GB decides 3D capability
The single specification that determines fitness for purpose is the NVIDIA Quadro P3000 with 6 GB of dedicated video memory. This GPU tier handles moderate 3D modelling, rendering and simulation tasks within certified workflows. Users whose daily work demands higher viewport performance or larger frame buffers for complex assemblies will need a workstation equipped with a higher-tier professional graphics card.
Highlights
- Xeon E3-1535M v6 quad-core reaches 4.20 GHz turbo for demanding workloads
- 3" UHD 4K IPS panel at 3840 x 2160 gives precise colour detail
- NVIDIA Quadro P3000 6GB GPU drives professional 3D and rendering tasks
- 512 GB NVMe SSD plus 1 TB HDD combine fast boot with large capacity
- 16 GB ECC RAM protects data integrity during critical computations
Specifications
| Brand | Lenovo |
|---|---|
| Series | P71 |
| Model | Thinkpad |
| Part Number | 20HK |
| Color | Black |
| Other Features | Fingerprint reader, Secure Chip |
| Operating System | Windows 10 Pro |
| CPU Type | Intel Xeon |
| Processor Name | Intel Xeon E3-1535M v6 |
| Core Name | Kaby Lake |
| Turbo Frequency | 4.20 GHz |
| Number of Cores | Quad-core Processor |
| CPU L2 Cache | 8 MB |
| CPU L3 Cache | 8 MB |
| Screen Size | 17.3" |
| Touchscreen | Non-Touch Screen |
| Display Type | UHD |
| Resolution | 3840 x 2160 |
| Display Features | In-plane Switching (IPS) Technology |
| GPU/VPU | NVIDIA Quadro P3000 |
| Video Memory | Dedicated 6 GB |
| Graphic Type | Dedicated Card |
| SSD | 500GB |
| HDD | 1TB |
| Memory | 16GB |
| Memory Speed | DDR4 2400 |
| Optical Drive Type | DVD±RW |
| LAN | 10/100/1000Mbps |
| WLAN | 802.11ac Wireless LAN |
| Bluetooth | Bluetooth 4.1 |
| USB | 4 |
| Video Port | 2 x Thunderbolts |
| Docking Connector | 1 |
| Audio Ports | 1 x Headphone/Microphone Combo Jack |
| Audio | Integrated Sound card |
| Speaker | Integrated Stereo Speakers |
| Touchpad | ThinkPad UltraNav |
| Keyboard | Full size with Keyboard light |
| Backlit Keyboard | Backlit |
| Other Input Devices | Yes |
| Webcam | Yes |
| Card Reader | 4-in-1 |
| Style | Standard |
| Type | Workstation |
| Usage | Business |
| AC Adapter/Charger | 230-watt AC Adapter |
| Battery | 8-cell Lithium Ion |
| Dimensions (W x D x H) | 16.38 x 10.85 x 1.3 |
| Weight | 7 - 7.9 lbs. |
Questions about this item
Which storage configuration suits heavy workloads — the 512GB NVMe SSD or the 1TB HDD?
Use the 512GB NVMe SSD for the operating system and active projects to benefit from fast boot and load times; keep the 1TB HDD for archives, media libraries and backups that do not need SSD speed.
What does the Xeon E3-1535M v6 turbo of 4.20 GHz deliver in daily workstation use?
The quad-core processor can reach 4.20 GHz on short bursts, speeding up single-threaded CAD operations and compile jobs while 16GB ECC RAM protects data integrity.
How does the Quadro P3000 6GB perform over the PCIe interface when driving the 3840x2160 panel?
The PCIe link feeds the Quadro P3000 6GB enough bandwidth for smooth viewport navigation and GPU-accelerated rendering at the native 3840x2160 resolution.
Also in this aisle
People compared these
Same shelf, same checkout — eight coins and a 30-minute rate lock.

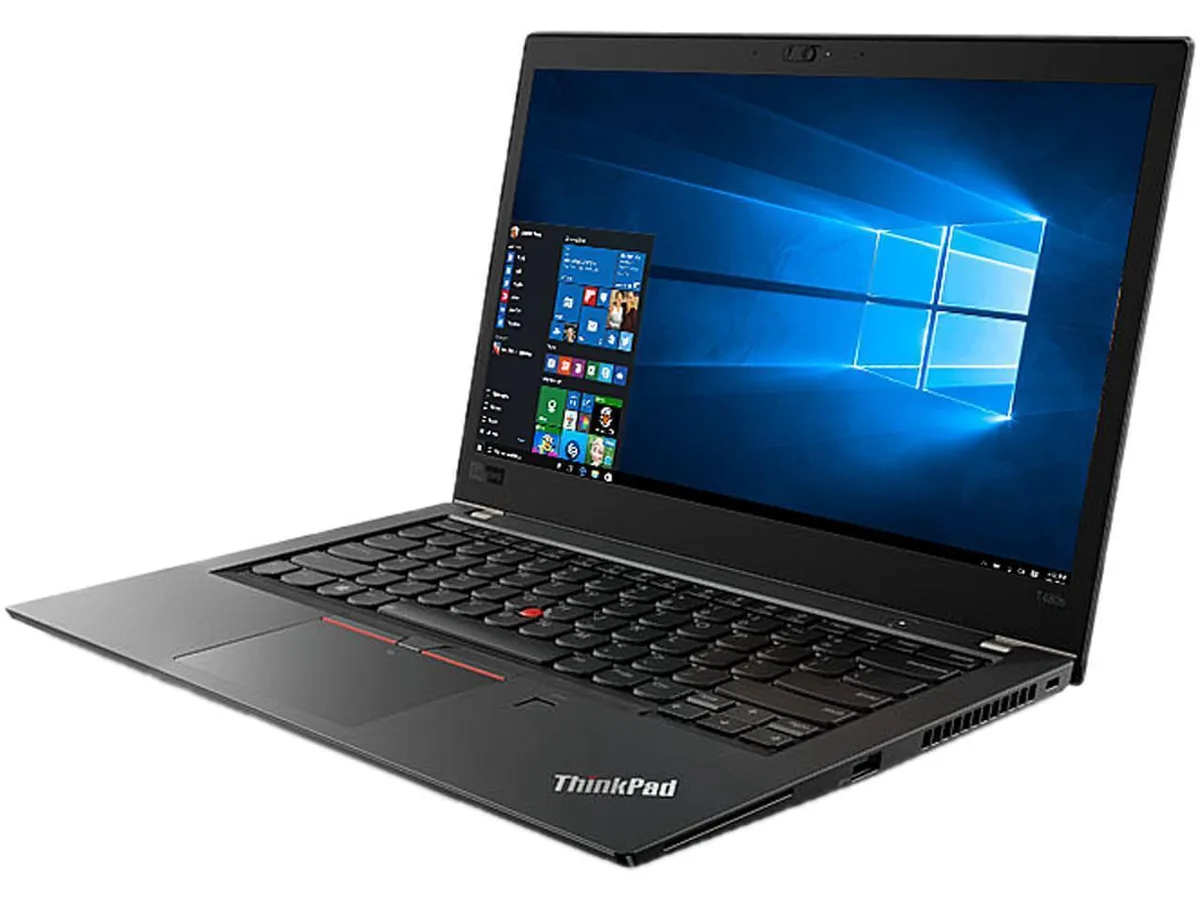

Lenovo ThinkPad T480s i5-8250U 12GB 2TB 14" FHD WWAN
