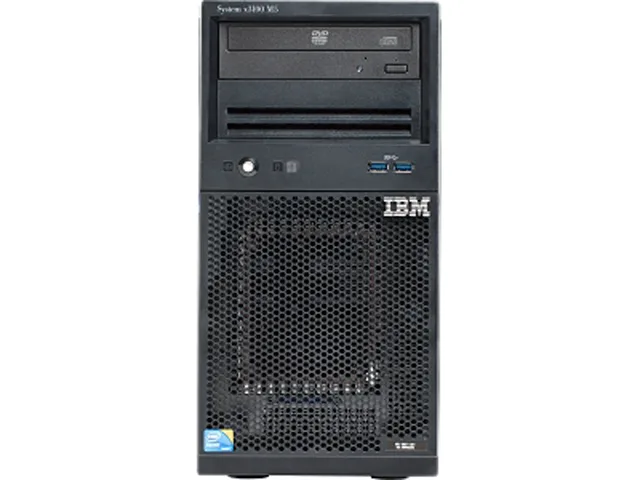

Tall 5U tower server, matte black front with DVD drive and bay slots

Lenovo

Lenovo x3100 M5 5457EJU 5U Tower Server Xeon E3-1271 v3 3.60 GHz 8GB DDR3

SKU CH-VASB-33549 MPN 5457EJU

5U tower server with a quad-core Xeon E3-1271 v3 at 3.60 GHz, 8 GB DDR3-1600, 10 expansion bays and a 430 W power supply

  • TypeTower
  • Rack Height5U
  • CPU TypeE3-1271 v3 3.60 GHz
  • Number of CPU CoresQuad-Core Processor
  • Cache Memory8MB
  • MAX Processors1
  • Quad-core Xeon E3-1271 v3 at 3.60 GHz for responsive compute
  • 8 GB DDR3-1600 installed, expandable to 32 GB across four slots
  • Ten expansion bays including two 5.25" and eight 2.5" drive positions
  • Four PCIe slots with one x4 and two x8 for add-in cards
  • Single 430 W supply on 120 V or 230 V AC input

Lenovo x3100 M5 5U Tower Server

The Lenovo x3100 M5 5457EJU is a 5U tower server built around a single Intel Xeon E3-1271 v3 processor running at 3.60 GHz with 8 GB of DDR3-1600 memory installed. It supports a maximum of 32 GB across four memory slots and includes a DVD-RW drive, a Matrox G200eR2 graphics controller with 16 MB video memory, and a 430 W power supply. No hard drives are installed, leaving the ten drive bays available for SATA or SAS storage configuration.

Suited for single-socket workloads

This server fits small-business file, print, or application roles that run on a single quad-core Xeon and up to 32 GB of DDR3 memory. The four PCIe expansion slots and ten drive bays provide internal growth for storage controllers or additional networking. Organisations needing dual-processor performance, larger memory capacity, or GPU-accelerated workloads should evaluate platforms designed for those requirements.

Maximum memory capacity of 32 GB

The system board provides four DDR3 DIMM slots and supports up to 32 GB of total memory. With 8 GB installed from the factory, the remaining three slots can be populated to reach the limit. Confirming this ceiling against the application's memory footprint is the primary step in deciding whether this server meets the workload.

Highlights

  • Quad-core Xeon E3-1271 v3 at 3.60 GHz for responsive compute
  • 8 GB DDR3-1600 installed, expandable to 32 GB across four slots
  • Ten expansion bays including two 5.25" and eight 2.5" drive positions
  • Four PCIe slots with one x4 and two x8 for add-in cards
  • Single 430 W supply on 120 V or 230 V AC input

Specifications

BrandLenovo
Seriesx3100 M5
Model5457EJU
TypeTower
Rack Height5U
CPU TypeE3-1271 v3 3.60 GHz
Number of CPU CoresQuad-Core Processor
Cache Memory8MB
MAX Processors1
Installed Memory Size8GB
Memory TypeDDR3-1600 / PC3-12800
Max Memory Capacity32GB
Number of Memory Slots4
Hard Drive (Installed)No Hard Drive
HDD InterfaceSATA/SAS
Raid LevelRAID 0/1/1+0
Media DrivesDVD +/- RW
GPU TypeMatrox G200eR2
Video Memory16MB
Other portsNumber of Total Expansion Bays: 10
Number of External 5.25" Bays: 2
Number of Internal 2.5" Bays: 8
Number of Total Expansion Slots: 4
Number of PCI Express x4 Slots: 1
Number of PCI Express x8 Slots: 2
Number of PCI Express x16 Slots: 1
Total Number of USB Ports 7
Number of USB 2.0 Ports 5
Number of USB 3.0 Ports 2
Network (RJ-45) Yes
VGA Yes
Remote Management Yes
Power Characteristics430W
Weight43
Package ContentsSystem x3100 M5 5457EJU Server
Statement of Limited Warranty.
Important Notices.
Documentation CD that contains the Installation and Service Guide
Country-Specific Power Cord
Shipping weight19.96 kg
Package size673 × 584 × 330 mm

Questions about this item

Should I choose the 8 GB DDR3-1600 configuration or plan for the 32 GB maximum?

The system ships with 8 GB DDR3-1600 across four slots; maximum supported capacity is 32 GB, so adding three 8 GB DDR3-1600 modules reaches the limit without replacing the factory memory.

What does the Xeon E3-1271 v3 at 3.60 GHz deliver in this tower?

The quad-core Xeon E3-1271 v3 runs at 3.60 GHz with 8 MB cache, providing single-socket performance for entry workloads such as file serving, light virtualization or database tasks.

Which drive interfaces does the onboard controller support and what RAID levels are available?

The integrated controller handles SATA and SAS drives and supports RAID 0, 1 and 10 across the eight internal 2.5-inch bays.
