White rectangular wall switch with four preset timer buttons and green LED indicators

Leviton DT130-1LW Countdown Timer Switch 5-10-15-30 min White

SKU CH-ZDXB-3SVVM

A countdown timer switch with four preset buttons up to 30 minutes, no neutral required, rated for 15 A and ½ HP fan loads

  • Product name5-10-15-30 min, No Neutral Required Leviton
  • voltage120 volts
  • electrical usage (watts)15 amps, 120 volts
  • weight0.24 pounds
  • description5-10-15-30 min, No Neutral Required, Leviton, DT130-1LW, tou
  • finishPlastic
  • Automate fans and lights with four preset countdown buttons
  • No neutral required — green flex sleeve connects to ground wire
  • Shallow 1.3 in depth fits standard wallboxes easily
  • Interchangeable black wires prevent line-load miswiring during DIY install
  • Handles 600W LED, 1800W incandescent and ½ HP motor loads

Bathroom Fan Timer Switch

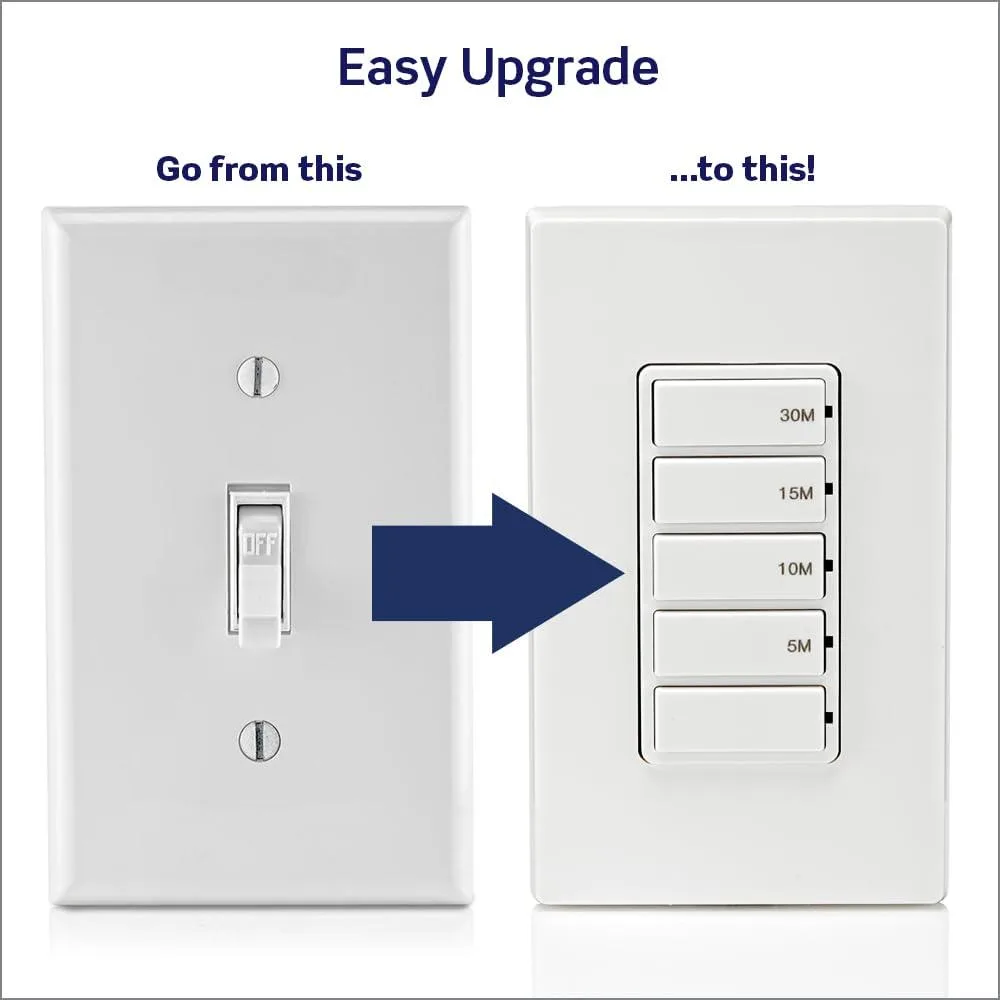

The Leviton DT130-1LW replaces a standard wall switch with a countdown timer designed for bathroom exhaust fans, heat lamps and towel warmers. Four preset buttons activate the load for 5, 10, 15 or 30 minutes and the switch turns it off automatically when the time expires. A green LED indicates the active timer. It is rated for 120 volts and 15 amps resistive load.

Wiring Flexibility For Retrofit Boxes

The switch fits a standard wallbox with a shallow 1.3 inch depth and requires a ground wire for installation. Its green flex sleeve connects to ground when no neutral is present, or the sleeve can be removed to connect to a neutral wire if one exists in the box. Two interchangeable black wires simplify line and load connections to help prevent miswiring during a DIY install.

Load Capacity And Faceplate Options

The device controls up to 600 watts of LED or CFL lighting, 1800 watts of incandescent or halogen loads, 1200 VA of magnetic or electronic low voltage and fluorescent ballasts, and 1/2 HP or 9.8 amp fan and motor loads. It does not support loads exceeding these ratings or installations without a ground conductor. White faceplate is included; colour change kits are sold separately in ivory, light almond, gray, black and brown.

Highlights

  • Automate fans and lights with four preset countdown buttons
  • No neutral required — green flex sleeve connects to ground wire
  • Shallow 1.3 in depth fits standard wallboxes easily
  • Interchangeable black wires prevent line-load miswiring during DIY install
  • Handles 600W LED, 1800W incandescent and ½ HP motor loads

Specifications

BrandLeviton
ModelDT130-1LW
Product name5-10-15-30 min, No Neutral Required Leviton
voltage120 volts
electrical usage (watts)15 amps, 120 volts
weight0.24 pounds
description5-10-15-30 min, No Neutral Required, Leviton, DT130-1LW, touch, 600W LED/CFL, 1800W Incandescent/Halogen, 1200VA Magnetic Low Voltage/Electronic Low Voltage/Fluorescent, ½ HP/9.8 Amp Fan/Motor
finishPlastic
materialPlastic
dimensions2.4 in x 3.96 in x 1.3 in

Questions about this item

Does the 15 A rating hold up when the timer runs a 9.8 A fan continuously for 30 minutes?

The switch is rated for 15 A resistive and ½ HP at 9.8 A, so a 30-minute fan cycle stays within its continuous-duty limits.

How warm does the switch get and does it make any noise when the bathroom fan runs all day?

The mechanical relay clicks once on and once off; the plastic body stays near room temperature during normal fan or lighting loads.

My wall box has only line, load and ground — no neutral — will the timer still work?

Yes, the green flex sleeve connects to ground when a neutral is absent, and a ground wire is required for installation.
