White rectangular wall switch with four preset timer buttons and green LED indicators

Leviton DT160-1LW 10-20-30-60 min Countdown Timer Switch White

SKU CH-P7MA-V88RC

A countdown timer switch with four preset buttons up to 60 minutes that automates fans and lights without requiring a neutral wire

  • Product name10-20-30-60 min, No Neutral Required Leviton
  • voltage120 volts_of_alternating_current
  • electrical usage (watts)15 amps, 120 volts_of_alternating_current
  • weight0.23 pounds
  • description10-20-30-60 min, No Neutral Required, Leviton, DT160-1LW, to
  • finishPlastic
  • Automates fans and lights with four preset countdown buttons (10, 20, 30, 60 min)
  • No neutral wire required — green flex sleeve connects to ground for simple retrofit
  • Shallow 1.3 in depth fits standard wallboxes and handles 15 A / 1/2 HP motor loads
  • Interchangeable black line/load wires prevent miswiring for DIY-friendly installation
  • White Decora-style faceplate with optional colour-change kits to match any décor

Countdown Timer Switch for Bathroom Fans

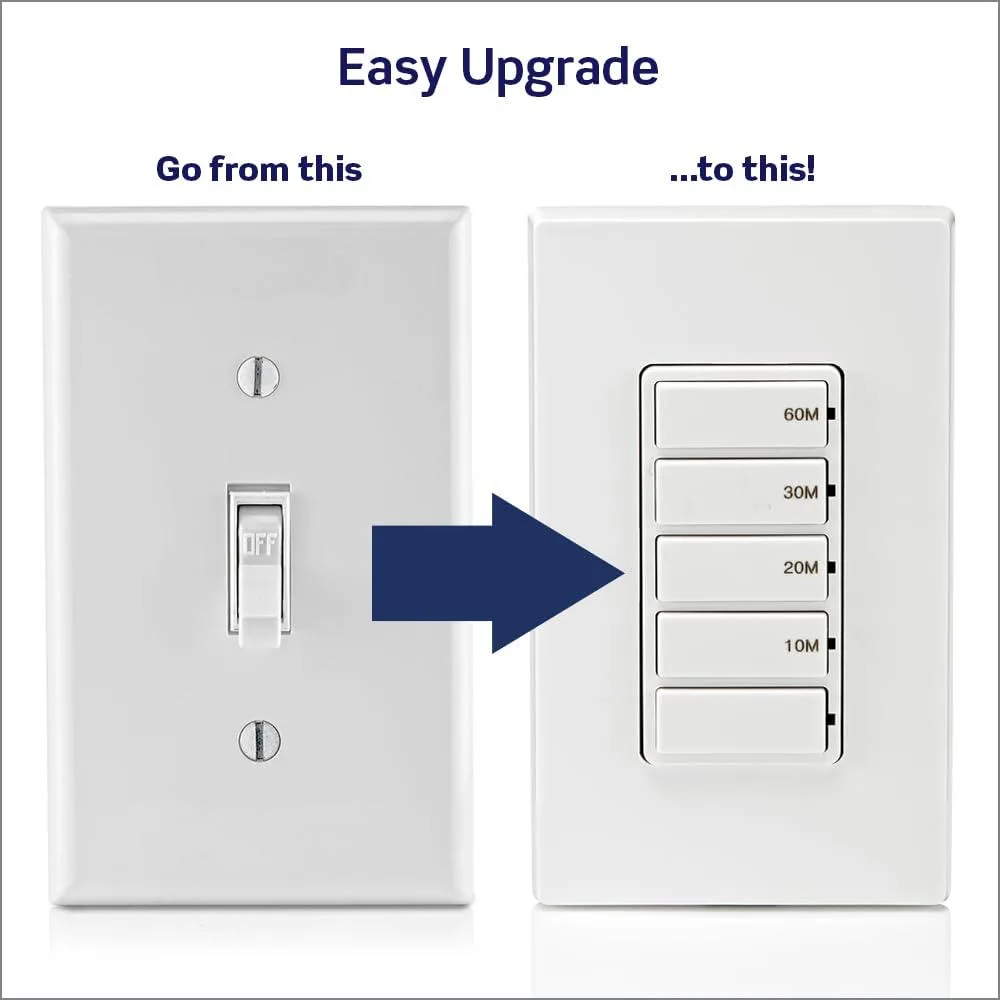

The Leviton DT160-1LW replaces a standard wall switch with a countdown timer that automates bathroom exhaust fans, heat lamps, towel warmers, hot tubs, saunas, attic fans and lighting. It offers four preset buttons for 10, 20, 30 or 60 minutes of operation. The switch turns the load on with a press and shuts it off automatically when the selected time expires.

No Neutral Required Wiring with Green Flex Sleeve

The innovative green flex sleeve allows the device to connect to ground when no neutral wire is present in the wallbox, or it can be removed to connect to a neutral wire if one is available. A ground wire is required for installation. The switch supports 15A resistive, 1/2 HP or 9.8A fan/motor loads, 600W LED/CFL, 1800W incandescent/halogen and 1200VA MLV/ELV/fluorescent at 120 volts.

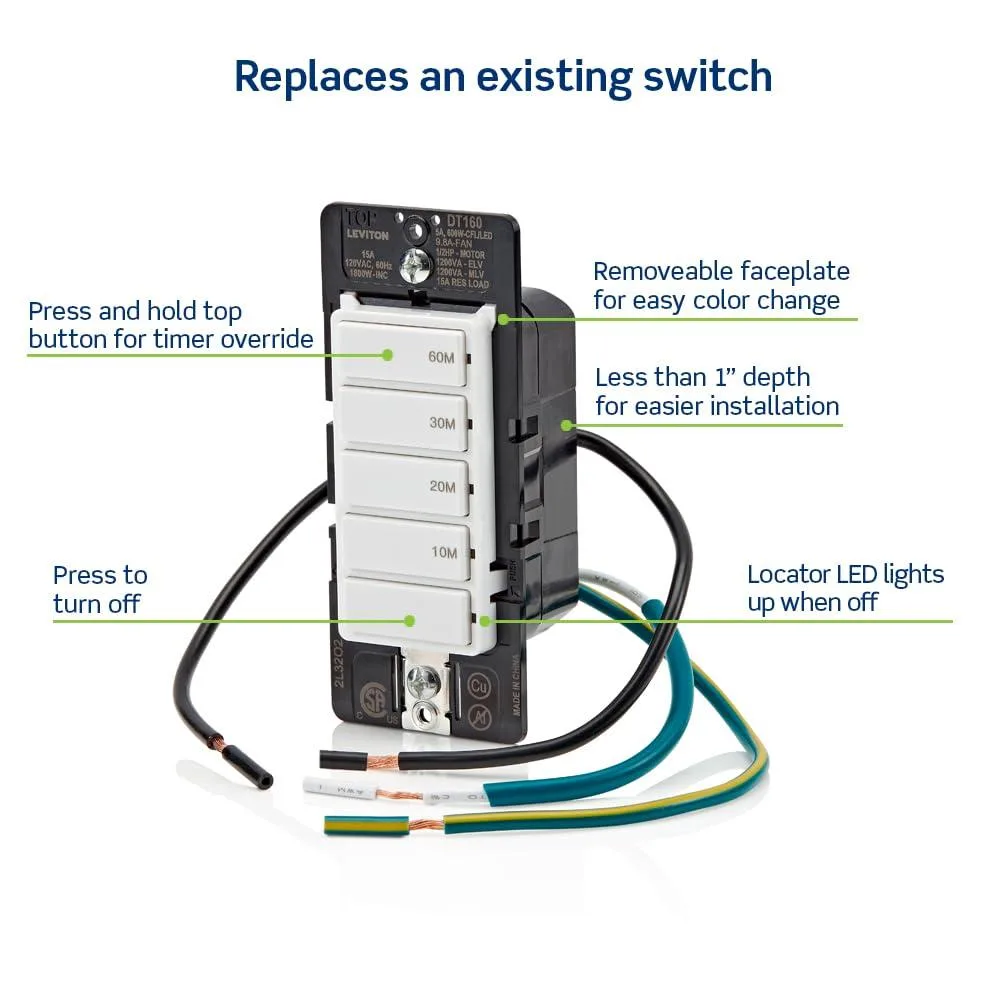

Shallow Design and Interchangeable Line Load Wires

The shallow 1.3 in depth fits easily into standard wallboxes. Two black wires can be interchanged between line and load to help prevent miswiring during installation. Faceplate colour can be changed using DTKIT accessories. Not suitable for circuits lacking a ground wire or for loads exceeding the listed ratings.

Highlights

  • Automates fans and lights with four preset countdown buttons (10, 20, 30, 60 min)
  • No neutral wire required — green flex sleeve connects to ground for simple retrofit
  • Shallow 1.3 in depth fits standard wallboxes and handles 15 A / 1/2 HP motor loads
  • Interchangeable black line/load wires prevent miswiring for DIY-friendly installation
  • White Decora-style faceplate with optional colour-change kits to match any décor

Specifications

BrandLeviton
ModelDT160-1LW
Product name10-20-30-60 min, No Neutral Required Leviton
voltage120 volts_of_alternating_current
electrical usage (watts)15 amps, 120 volts_of_alternating_current
weight0.23 pounds
description10-20-30-60 min, No Neutral Required, Leviton, DT160-1LW, touch, bathroom exhaust fans, heat lamps, towel warmers, hot tubs, saunas, attic fans, lighting
finishPlastic
materialPlastic
dimensions2.4 in x 3.96 in x 1.3 in

Questions about this item

What does the 10-20-30-60 minute range actually do when I press a button?

Pressing any of the four preset buttons turns the connected load on for that exact number of minutes, then switches it off automatically; the adjacent green LED stays lit while the countdown is running.

The switch is rated 15 A at 120 V — what load types does that cover in practice?

It handles 600 W LED or CFL, 1800 W incandescent or halogen, 1200 VA MLV, ELV or fluorescent ballasts, and ½ HP or 9.8 A fan and motor loads on a single-pole 120 V circuit.

The body measures 2.4 in by 3.96 in by 1.3 in — will it fit a standard wall box without crowding?

Yes, the shallow profile is designed to fit a standard single-gang wall box; two interchangeable black wires and a green-flex sleeve that can connect to ground or neutral give flexible wiring room.
